Testing Shift Lock Solenoid

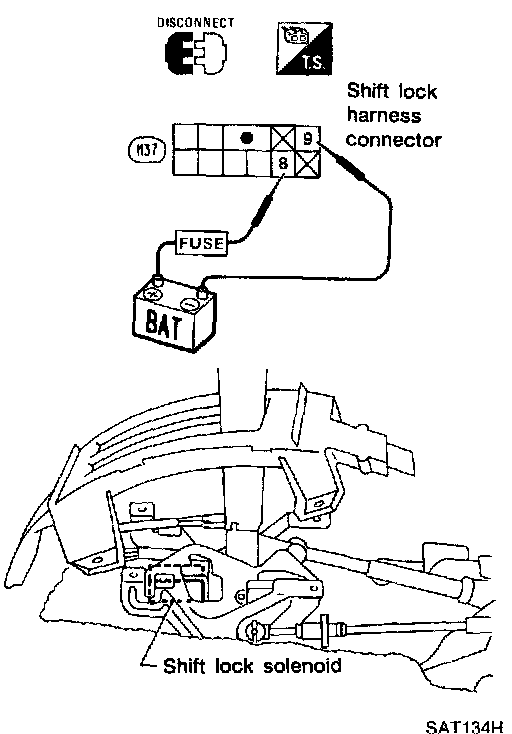

SHIFT LOCK SOLENOID
- Check operation by applying battery voltage to shift lock harness connector.
