Assembly

ASSEMBLY

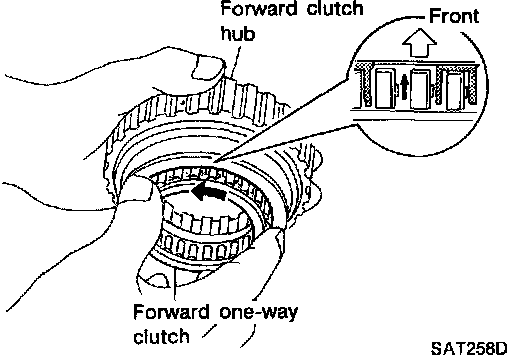

1. Install forward one-way clutch on forward clutch.
- Take care with the direction of forward one-way clutch.

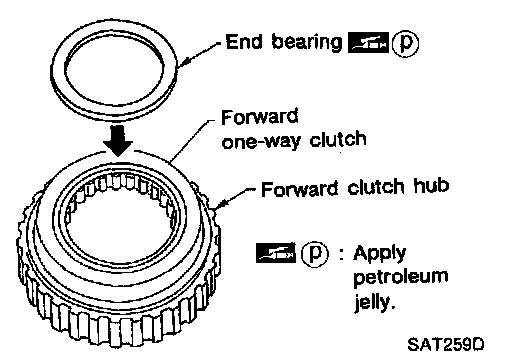

2. Install end bearing on forward one-way clutch.
- Apply petroleum jelly to end bearing.

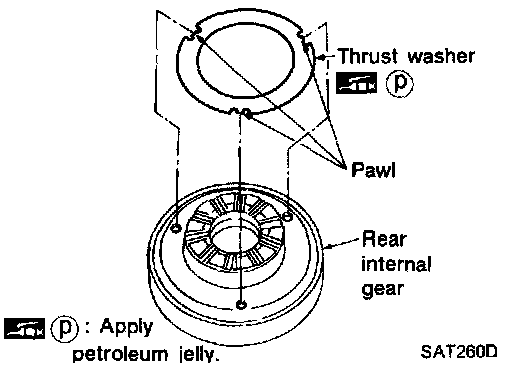

3. Install thrust washer on rear internal gear.
- Apply petroleum jelly to thrust washer.
- Align pawls of thrust washer with holes of rear internal gear.

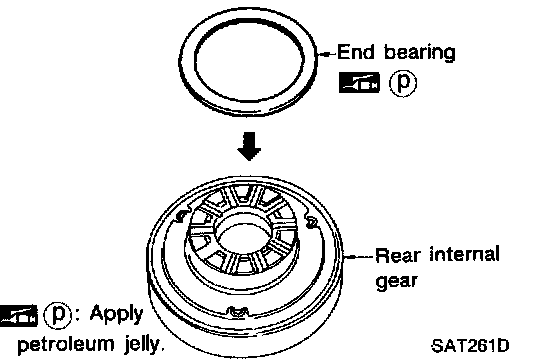

4. Install end bearing on rear internal gear.
- Apply petroleum jelly to end bearing.

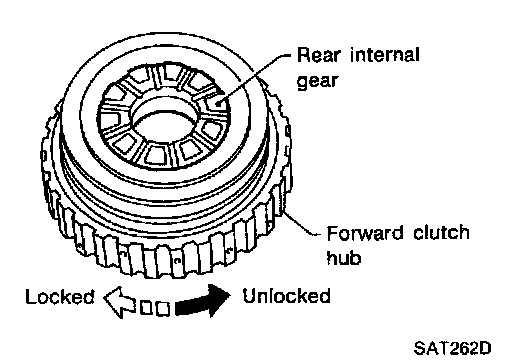

5. Install forward clutch hub on rear internal gear.
- Check operation of forward one-way clutch.

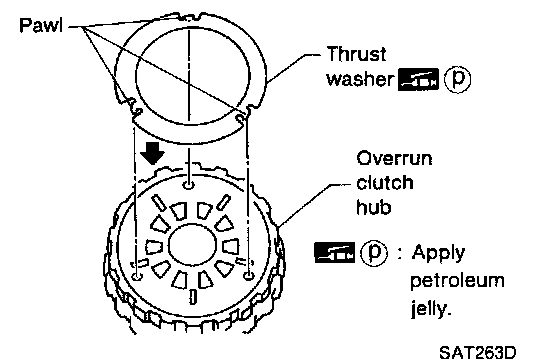

6. Install thrust washer and overrun clutch hub.
- Apply petroleum jelly to thrust washer.
- Align pawls of thrust washer with holes of overrun clutch hub.

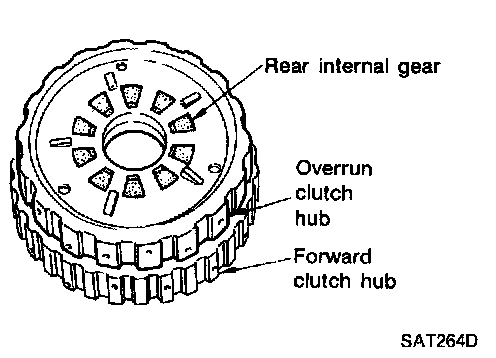

7. Install overrun clutch hub on rear internal gear.
- Align projections of rear internal gear with holes of of run clutch hub.

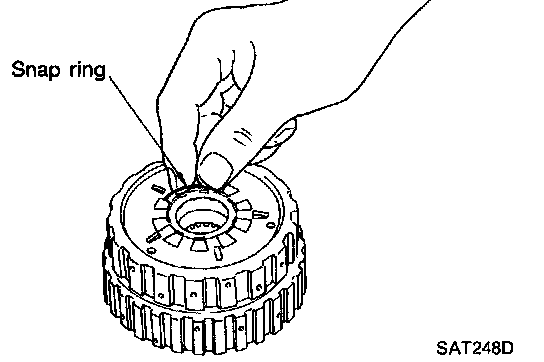

8. Install snap ring to groove of rear internal gear.
