Installation

INSTALLATION

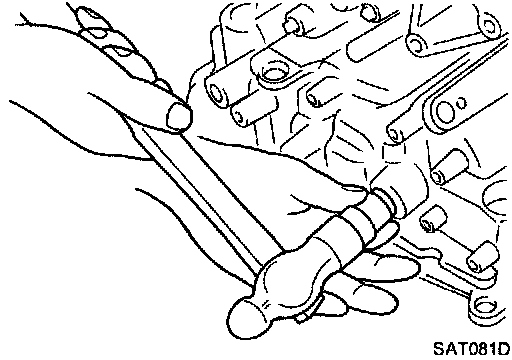

1. Install manual shaft oil seal.
- Apply ATF to outer surface of oil seal.





2. Install throttle lever and return spring on throttle shaft.
3. Install throttle lever assembly on transmission case.

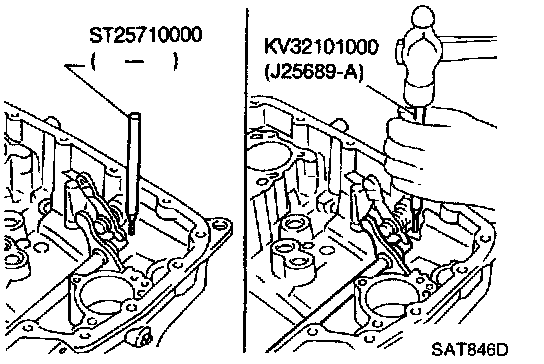

4. Align groove of throttle shaft and hole of transmission case.

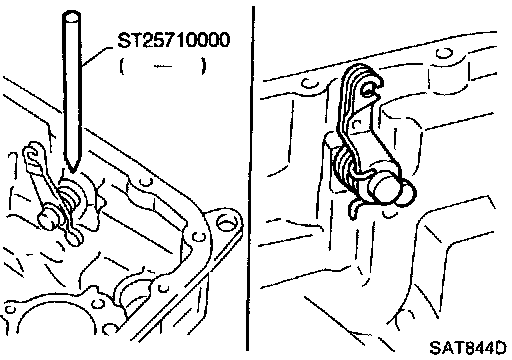

5. Install throttle shaft retaining pin.





6. Move throttle lever in the direction of the arrow.

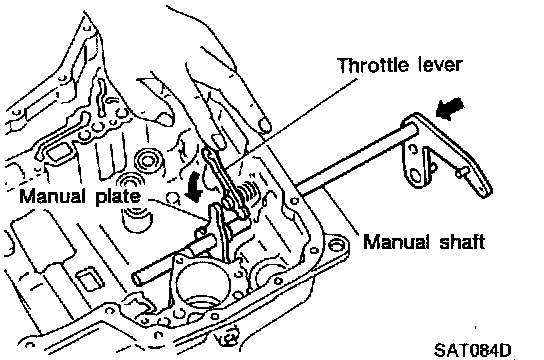

7. Install manual shaft and manual plate.





8. Align groove of manual shaft and hole of transmission case.

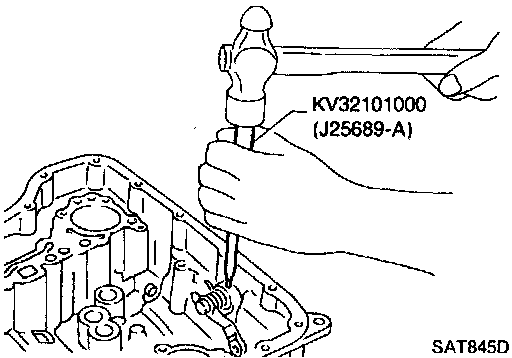

9. Install manual shaft retaining pin.

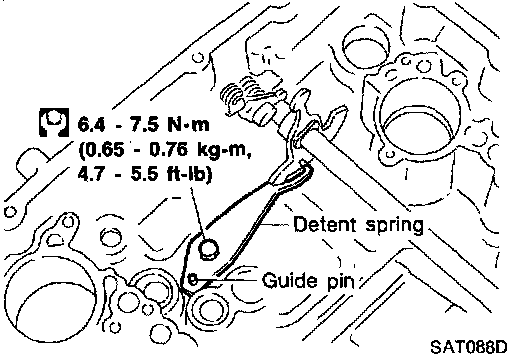

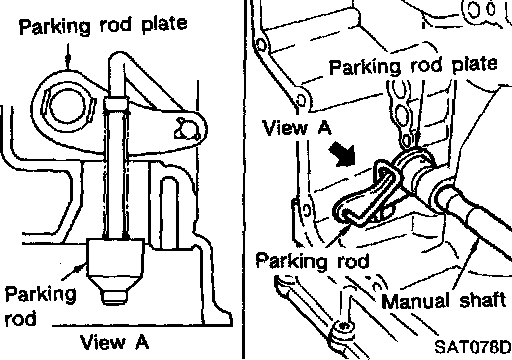

10. Install parking rod to parking rod plate.
11. Install parking rod assembly to manual shaft.

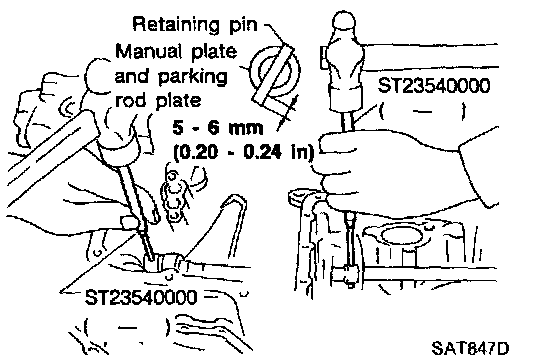

12. Install manual plate retaining pin and parking rod plate retaining pin.





13. Install detent spring.
