Inspection

INSPECTION
Low & reverse clutch snap ring, spring retainer and return springs
- Check for deformation, fatigue or damage.
- Replace if necessary.
- When replacing spring retainer and return springs, replace them as a set.





Low & reverse brake drive plate
- Check facing for burns, cracks or damage.

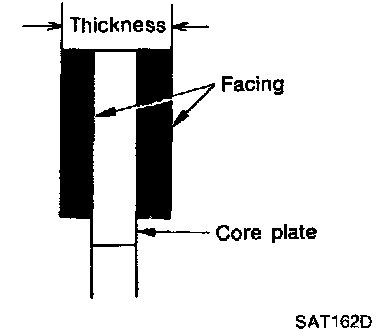

- Measure thickness of facing. Thickness of drive plate:

Standard value: 2.0 mm (0.079 in)

Wear limit: 1.8 mm (0.071 in)

- If not within wear limit, replace.
