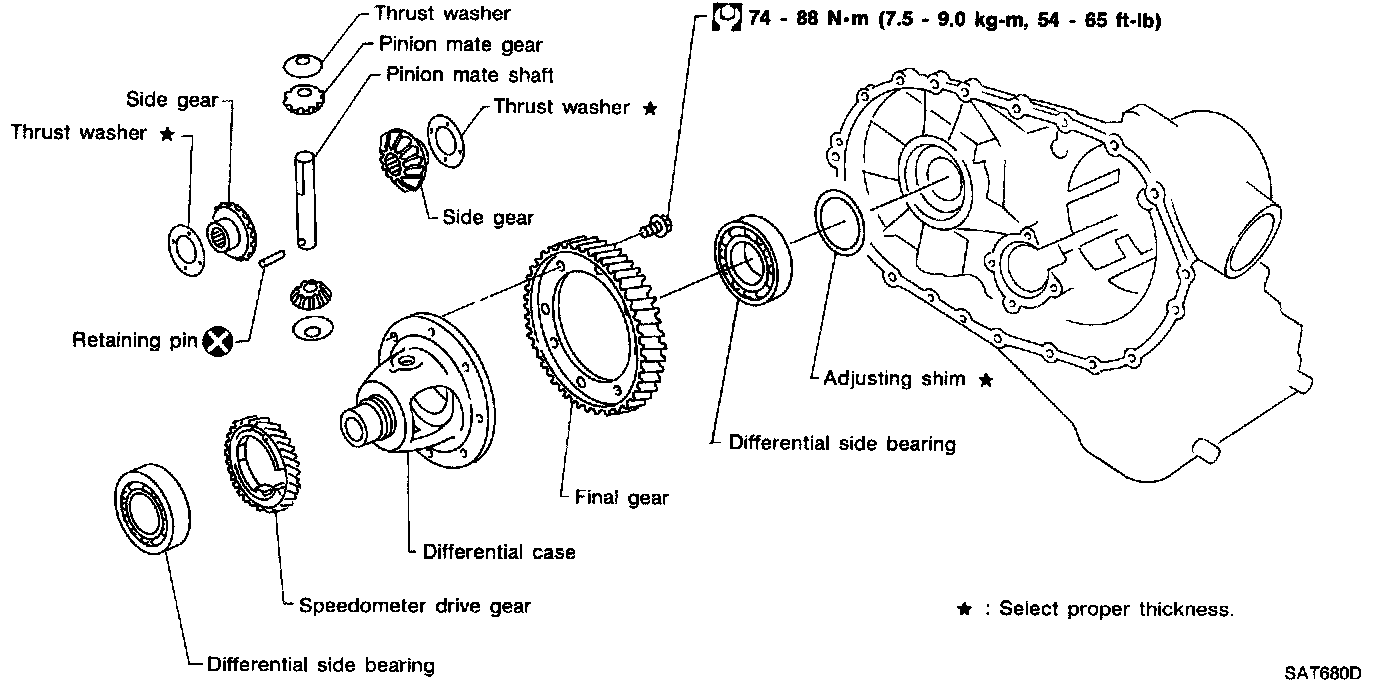

Disassembly

DISASSEMBLY

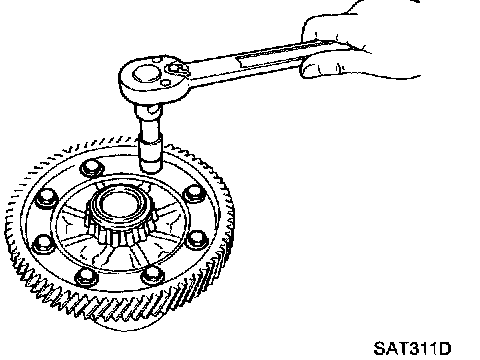

1. Remove final gear.

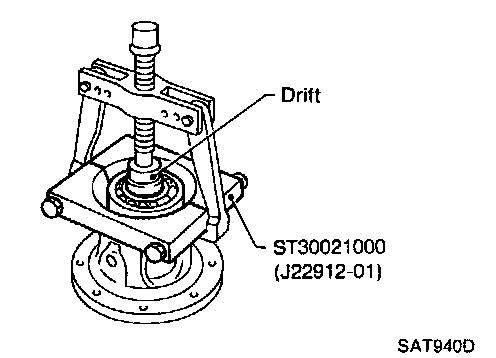

2. Press out differential side bearings.

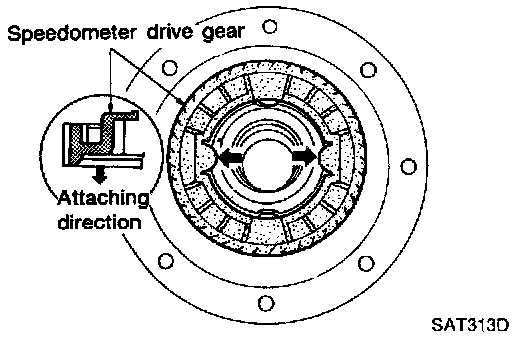

3. Remove speedometer drive gear.

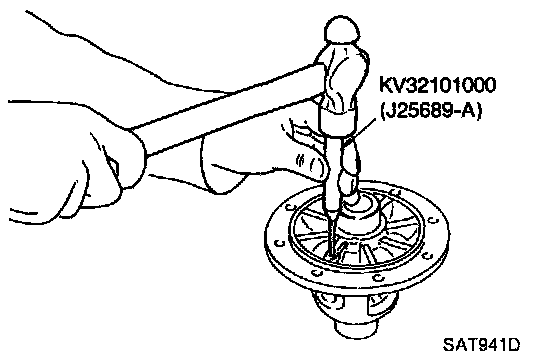

4. Drive out pinion mate shaft retaining pin.





5. Draw out pinion mate shaft from differential case.
6. Remove pinion mate gears and side gears.
