Assembly

ASSEMBLY

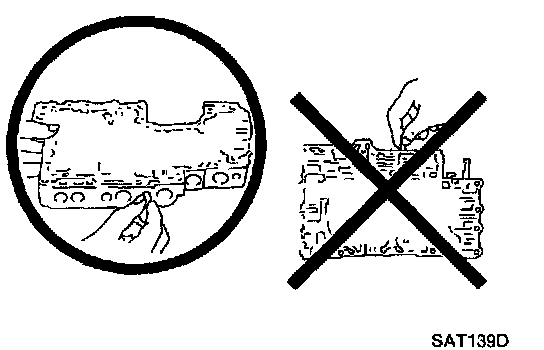

- Lay the control valve body down when installing valves.
- Do not stand the control valve body on edge.

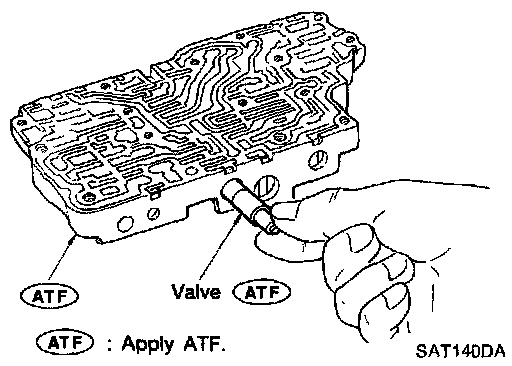

1. Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
- Be careful not to scratch or damage valve body.

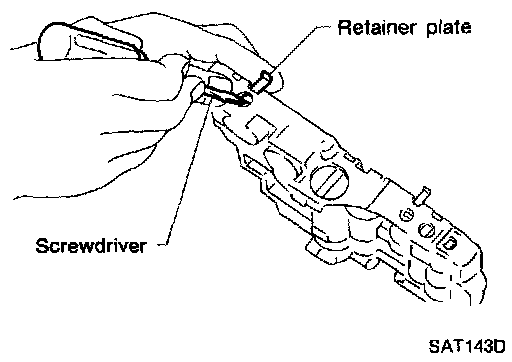

- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

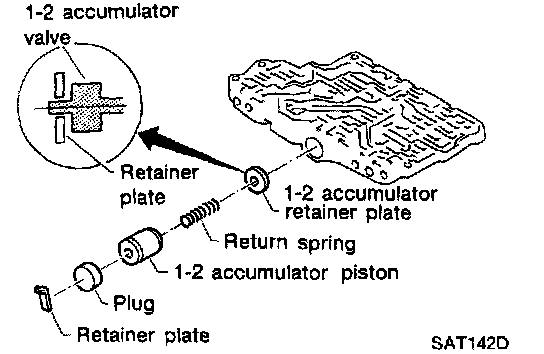

1-2 accumulator valve
- Install 1-2 accumulator valve and then align 1-2 accumulator retainer plate with 1-2 accumulator valve from opposite side of control valve body.
- Install return spring and 1-2 accumulator piston.





2. Install retainer plates
- While pushing plug or return spring, install retainer plate.

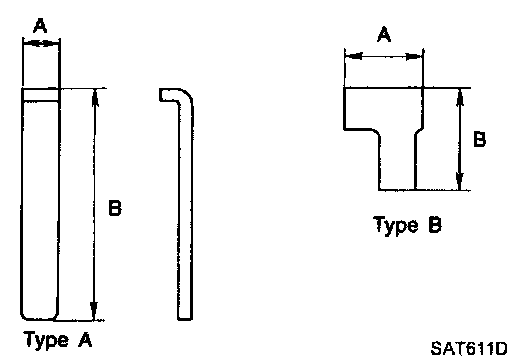

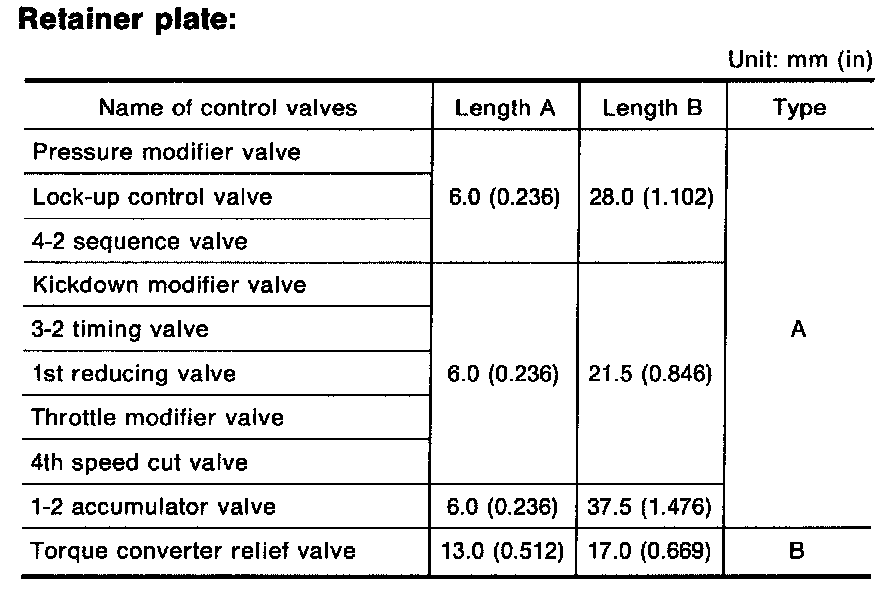

- Install proper retainer plates.
