Inspection

INSPECTION





Valve springs

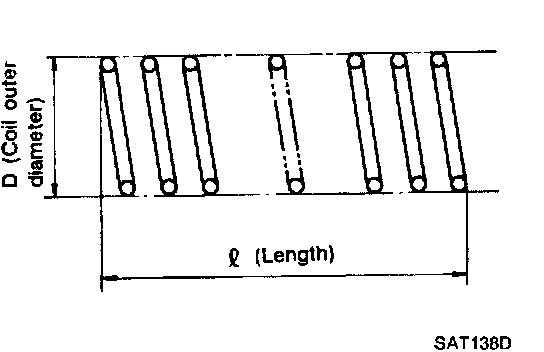

- Check each valve spring for damage or deformation. Also measure free length and outer diameter.

Inspection standard: Refer to SOS.

- Replace valve springs if deformed or fatigued.

Control valves
- Check sliding surfaces of control valves, sleeves and plugs for damage.
