Assembly

ASSEMBLY





Throttle valve

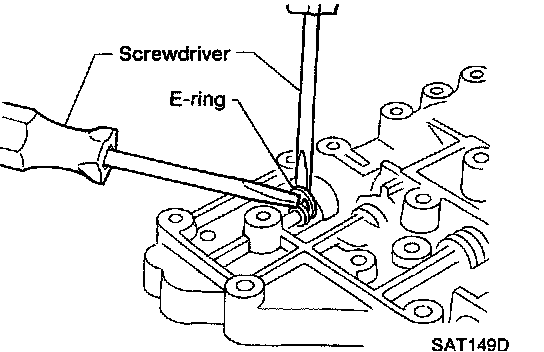

- Insert throttle valve to control valve body and then install E-ring to throttle valve.





Pressure regulator valve

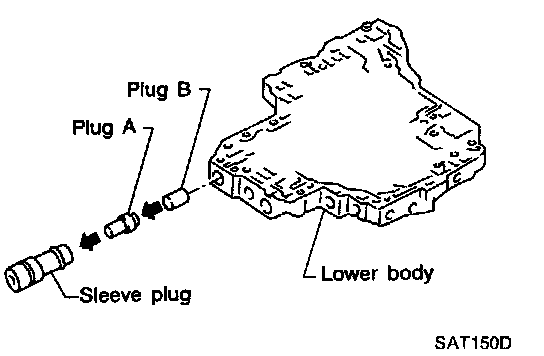

- Install pressure regulator valve after assembling sleeve plug, plug A and plug B.

3-4 shift valve and 2-3 shift valve

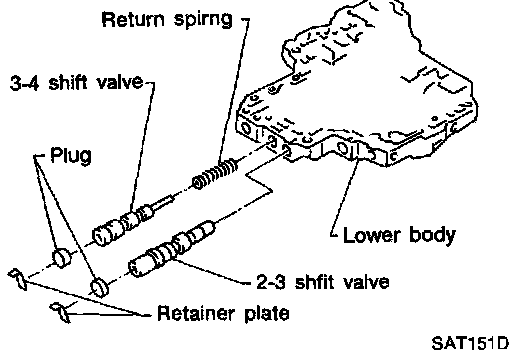

- Install 3-4 shift valve and 2-3 shift valve after fixing plugs to retainer plates on the opposite side.





- Install control valves.
For installation procedures, refer to "ASSEMBLY in "Control Valve Upper Body".

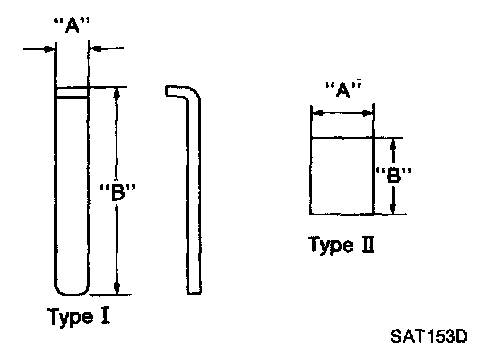

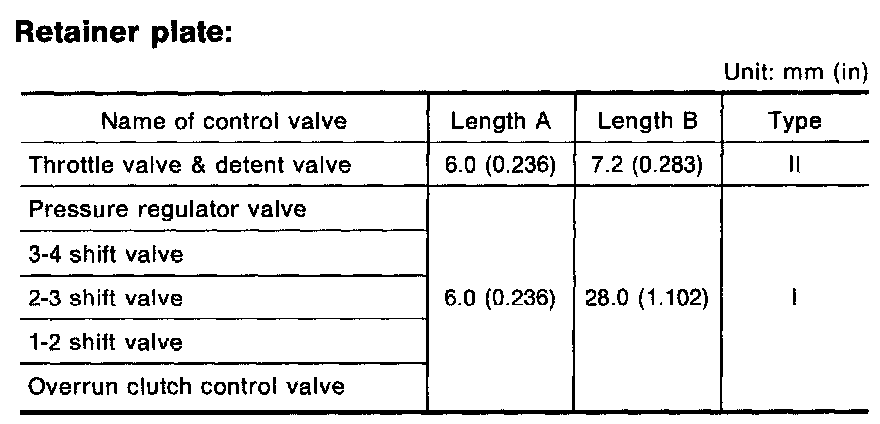

- Install proper retainer plates
