Inspection

INSPECTION
Lower and upper bodies

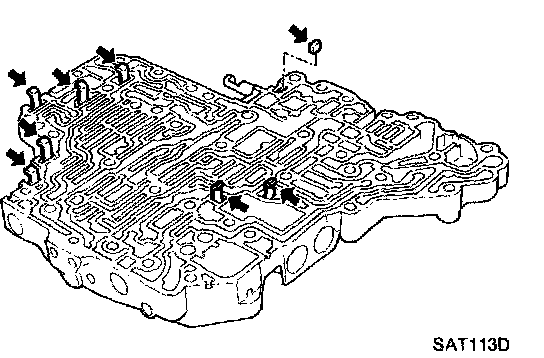

- Check to see that retainer plates are properly positioned in lower body.

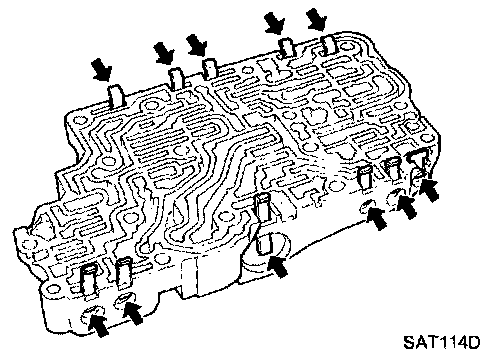

- Check to see that retainer plates are properly positioned in upper body.
- Be careful not to lose the9e parts.

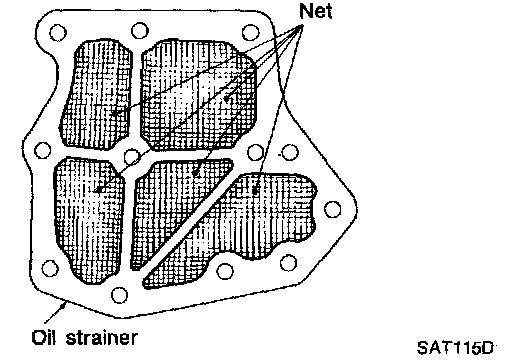

Oil strainer
- Check wire netting of oil strainer for damage.

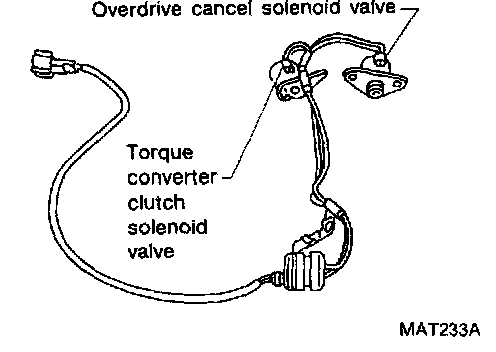

OD cancel solenoid valve and torque converter clutch solenoid valve
- Measure resistance.

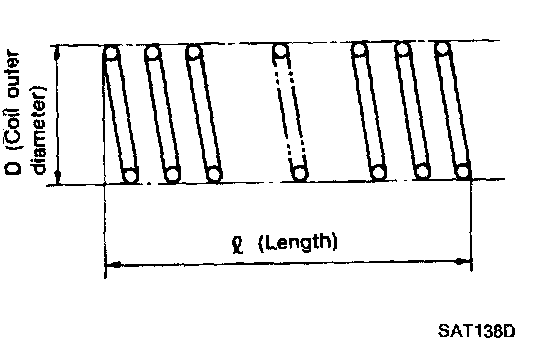

Oil cooler relief valve spring
- Check springs for damage or deformation.

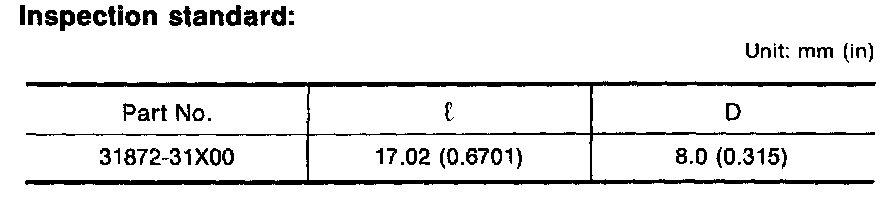

- Measure free length and outer diameter
