Assembly

ASSEMBLY





1. Install D-rings to servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.

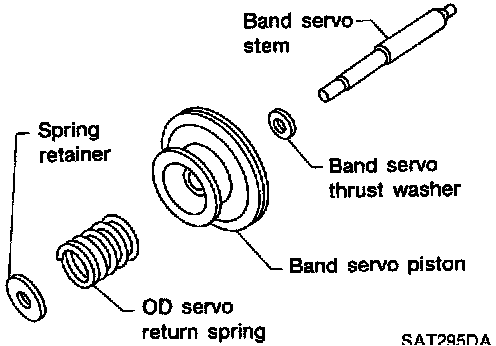

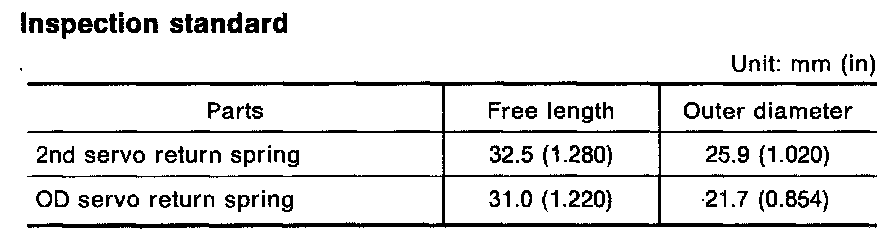

2. Install band servo piston stem, band servo thrust washer, OD servo return spring and spring retainer to band servo piston.

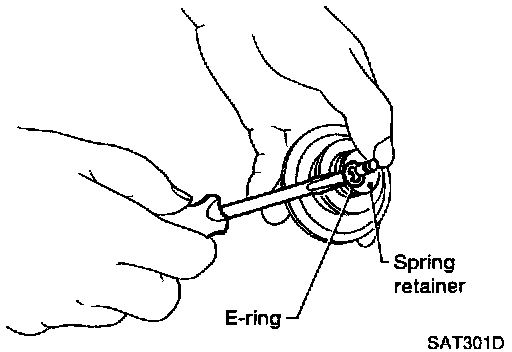

3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

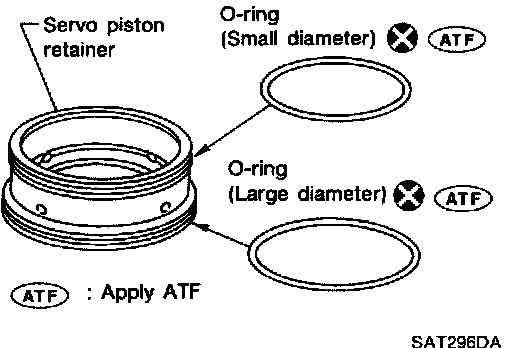

4. Install O-rings to servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to the positions of the O-rings.

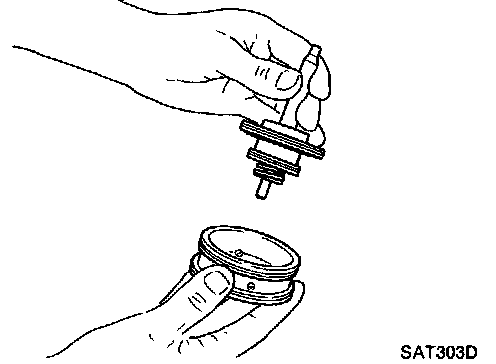

5. Install band servo piston assembly to servo piston retainer by pushing it inward.

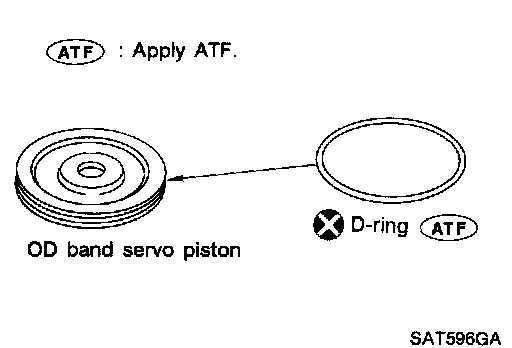

6. Install D-ring to OD band servo piston.
- Apply ATF to D-ring.

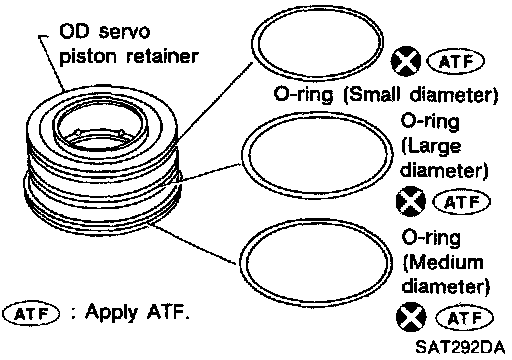

7. Install O-rings to OD servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to the positions of the O-rings.

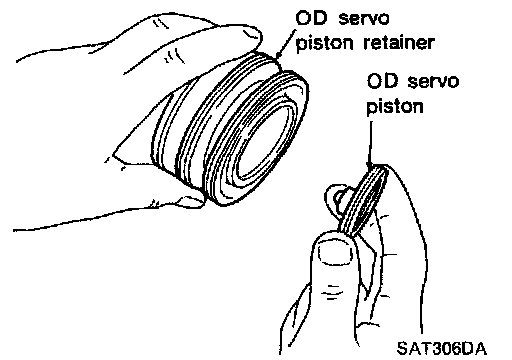

8. Install OD band servo piston to OD servo piston retainer.

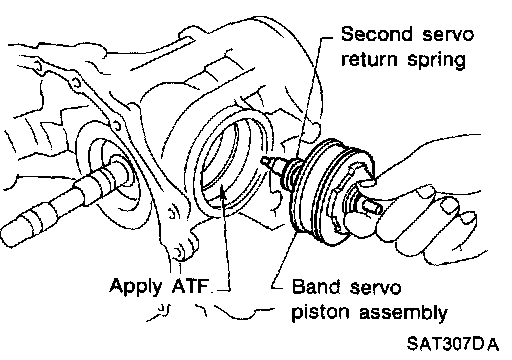

9. Install band servo piston assembly and 2nd servo return spring to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.

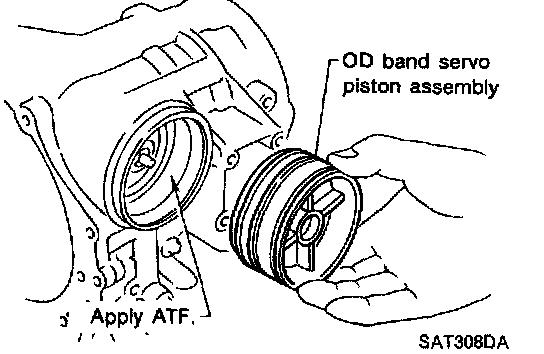

10. Install OD band servo piston assembly to transmission case.
- Apply ATF to O-ring of band servo piston and transmission case.





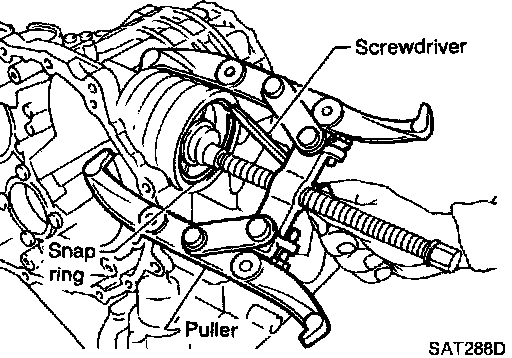

11. Install band servo piston snap ring to transmission case.
