Stabilizer Bar: Service and Repair

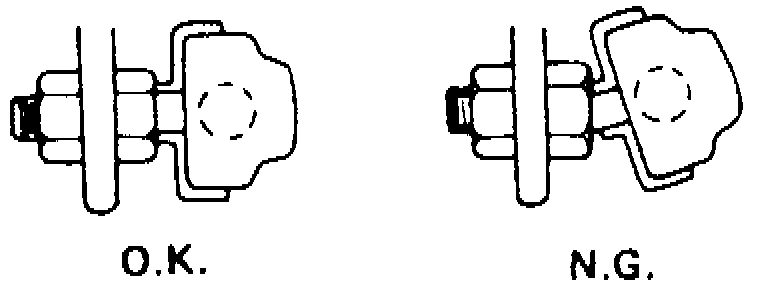

Fig. 6 Stabilizer Bar Ball Joint Socket Installation:

1. Raise and support vehicle.
2. Remove exhaust assembly as necessary.
3. Disconnect stabilizer bar from bushing brackets and locating bolts, then remove stabilizer bar.
4. Reverse procedure to install, aligning stabilizer bar ball joint as shown in Fig. 6.
