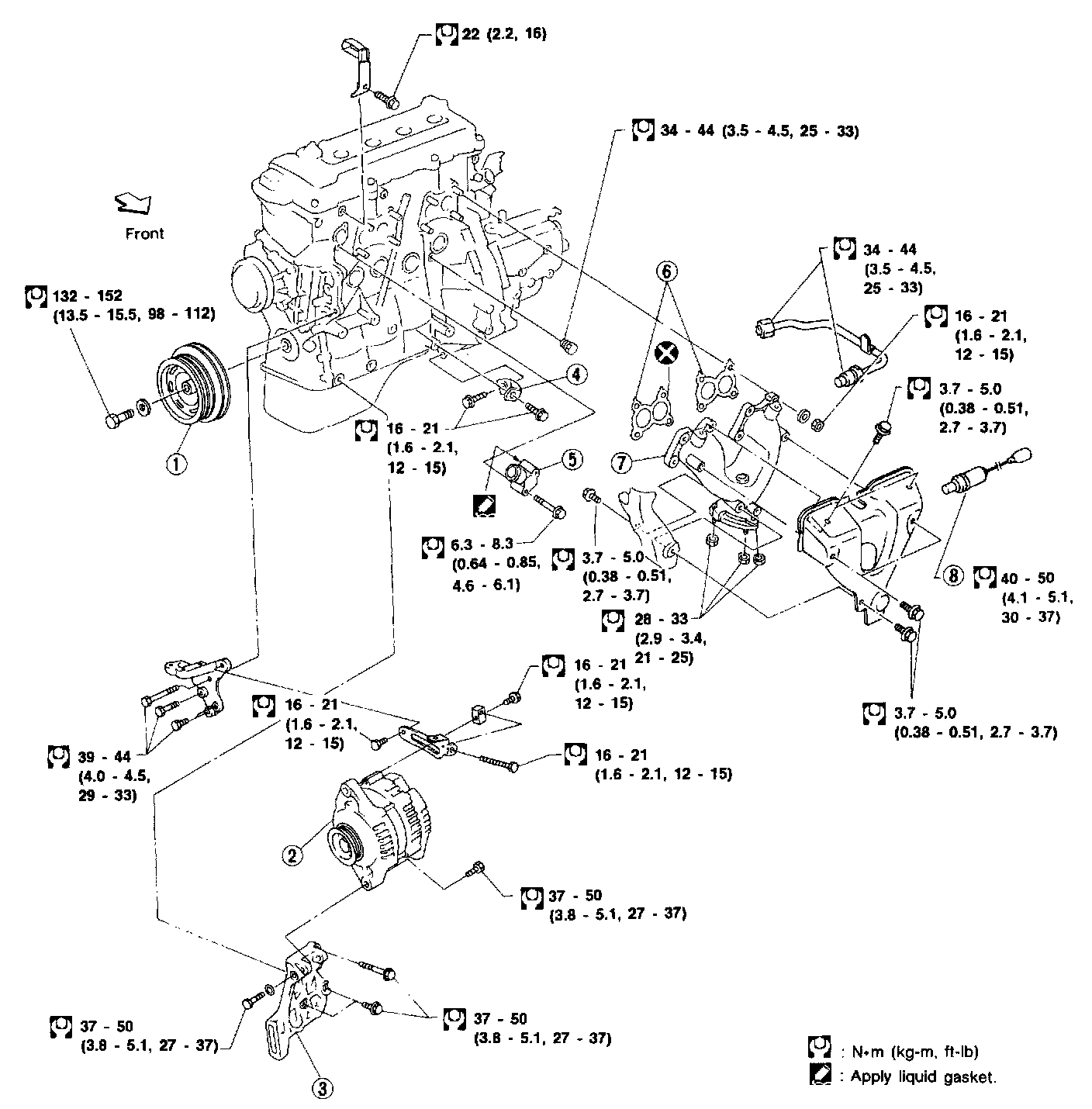

Alternator: Locations

1. Crankshaft pulley

2. Alternator

3. Compressor bracket

4. Gusset

5. Water outlet

6. Exhaust manifold gasket

7. Exhaust manifold

8. Heated oxygen sensor (A/T models except for California)
Oxygen sensor (A/T models for California and M/T models)
