Home >> Nissan-Datsun >> 1994 >> Sentra (4 Door) L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

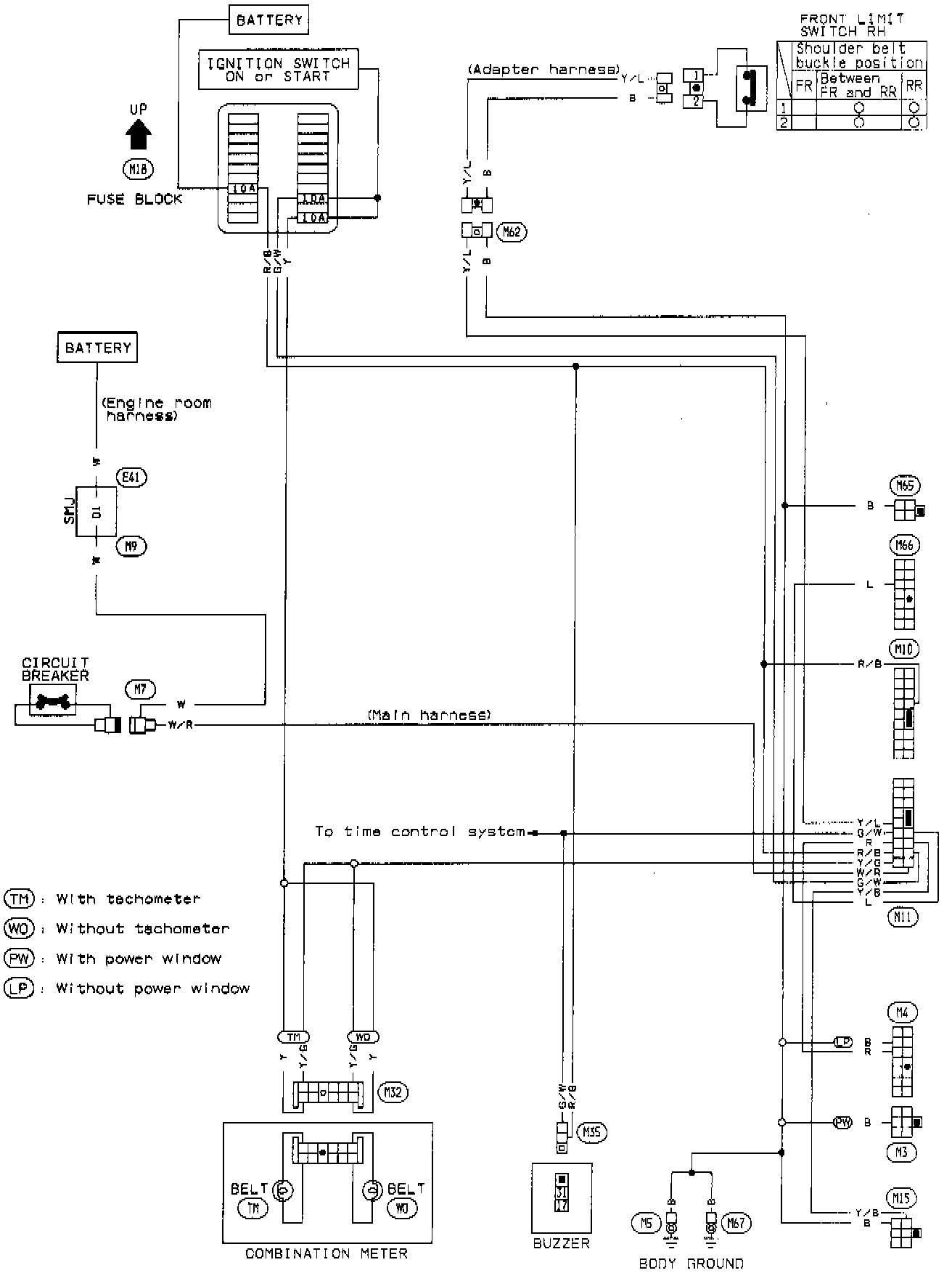

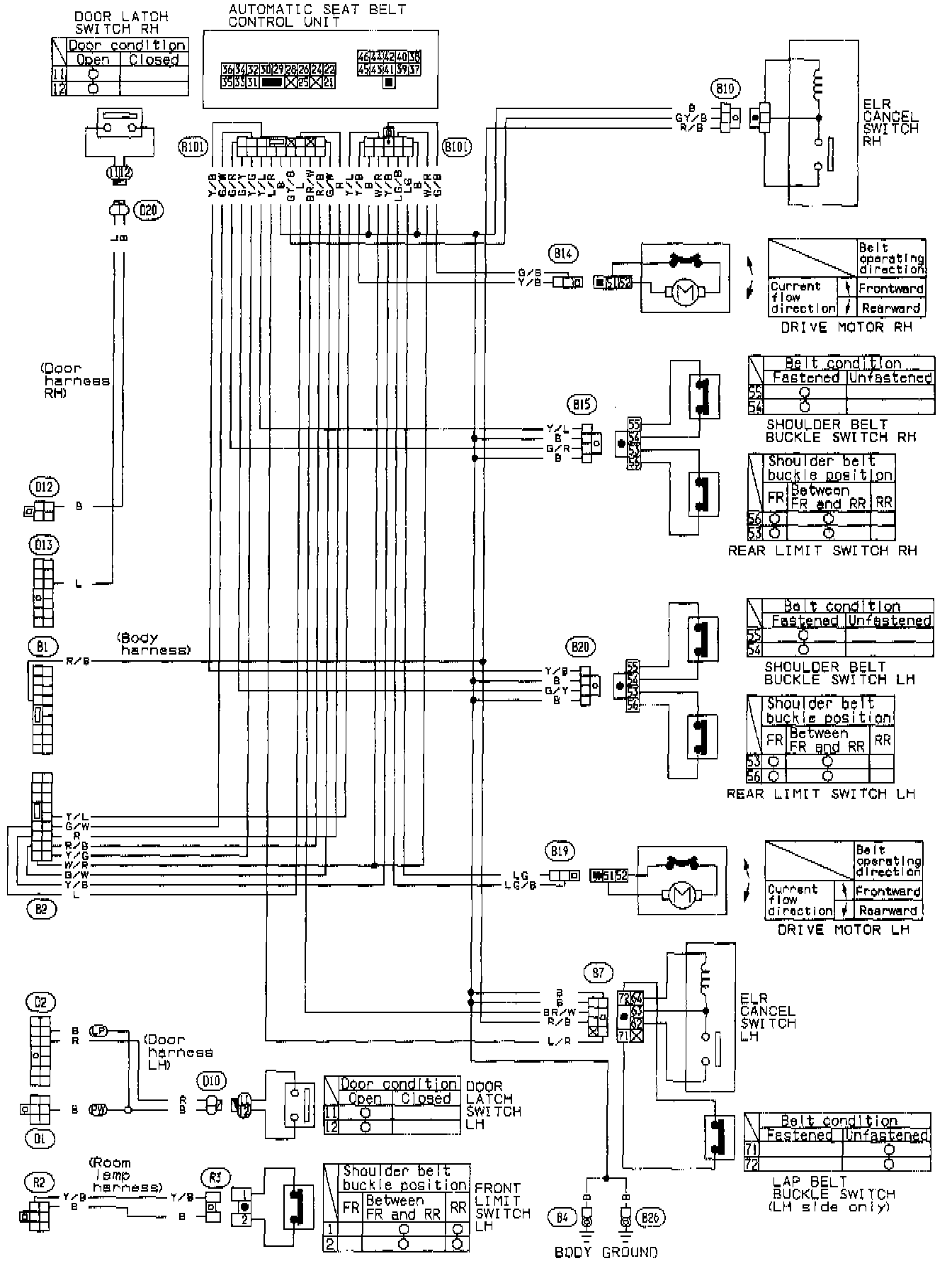

2-point Motorized Automatic Seat Belt System - 4-door Sedan:



2-point Motorized Automatic Seat Belt System - 4-door Sedan:
