Accelerator Pedal: Description and Operation

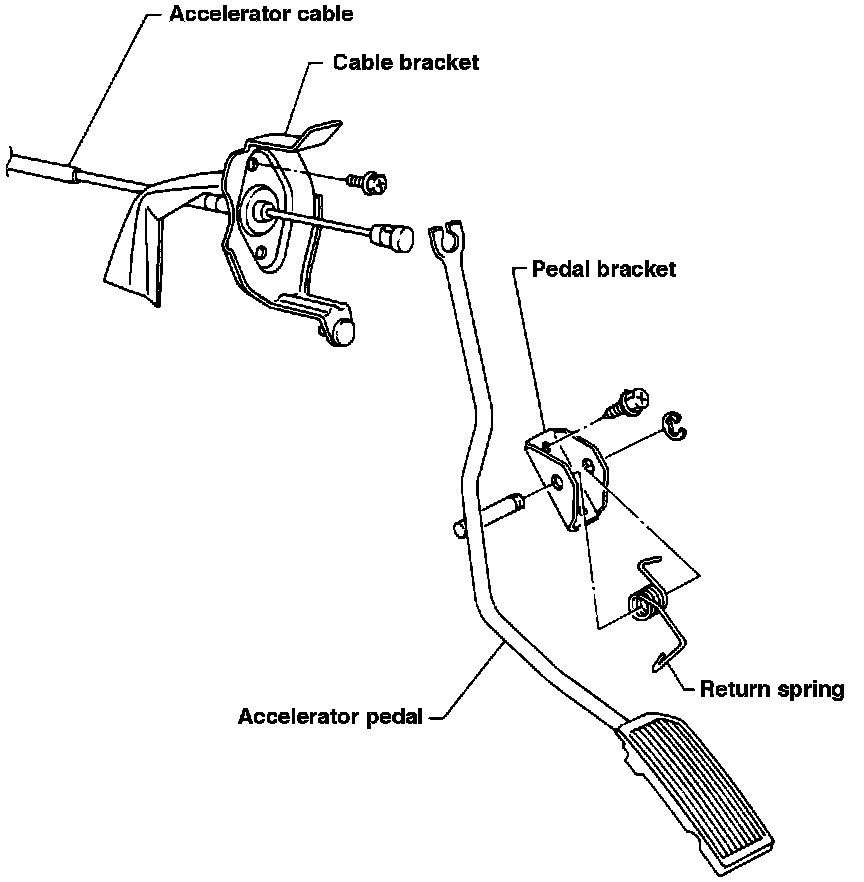

Accelerator Pedal Assembly:

PURPOSE
Allows operator control over throttle operation.

OPERATION
When the accelerator pedal is depressed, it pulls the inner wire of the throttle cable, which in turn opens the throttle valve.
