Home >> Nissan-Datsun >> 1994 >> Sentra (4 Door) L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Evaporative Emission Control Canister >> Locations

Evaporative Emission Control Canister: Locations

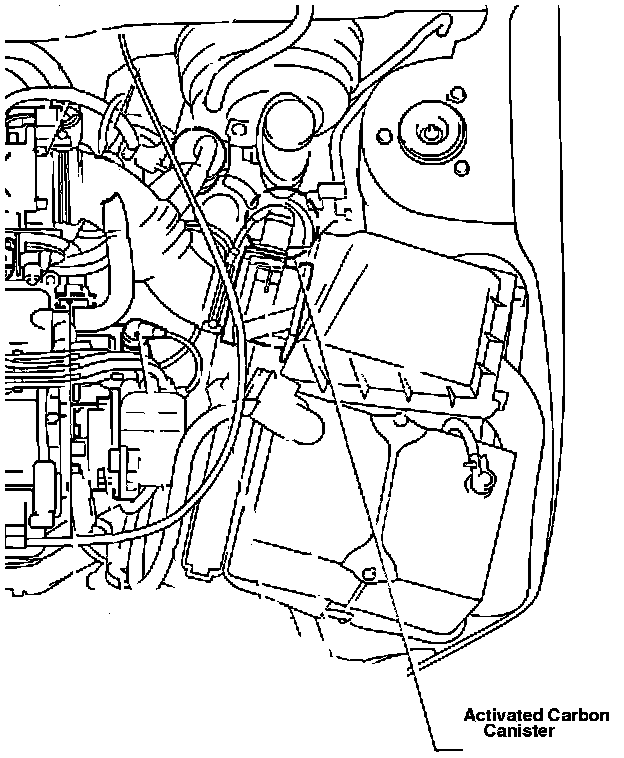

Activated Carbon Canister:




The Activated Carbon Canister is mounted below the power brake booster.
