Power Supply Testing

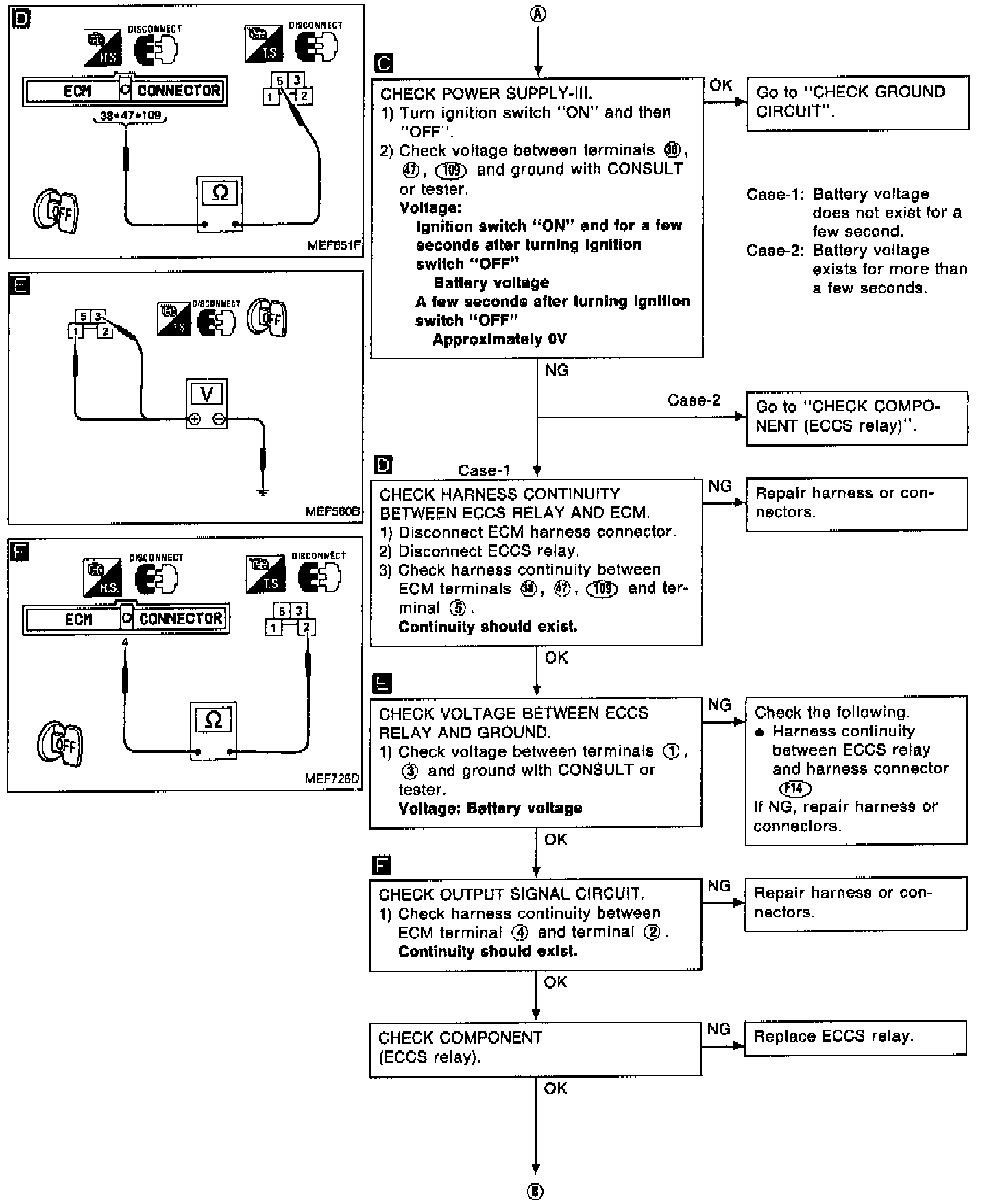

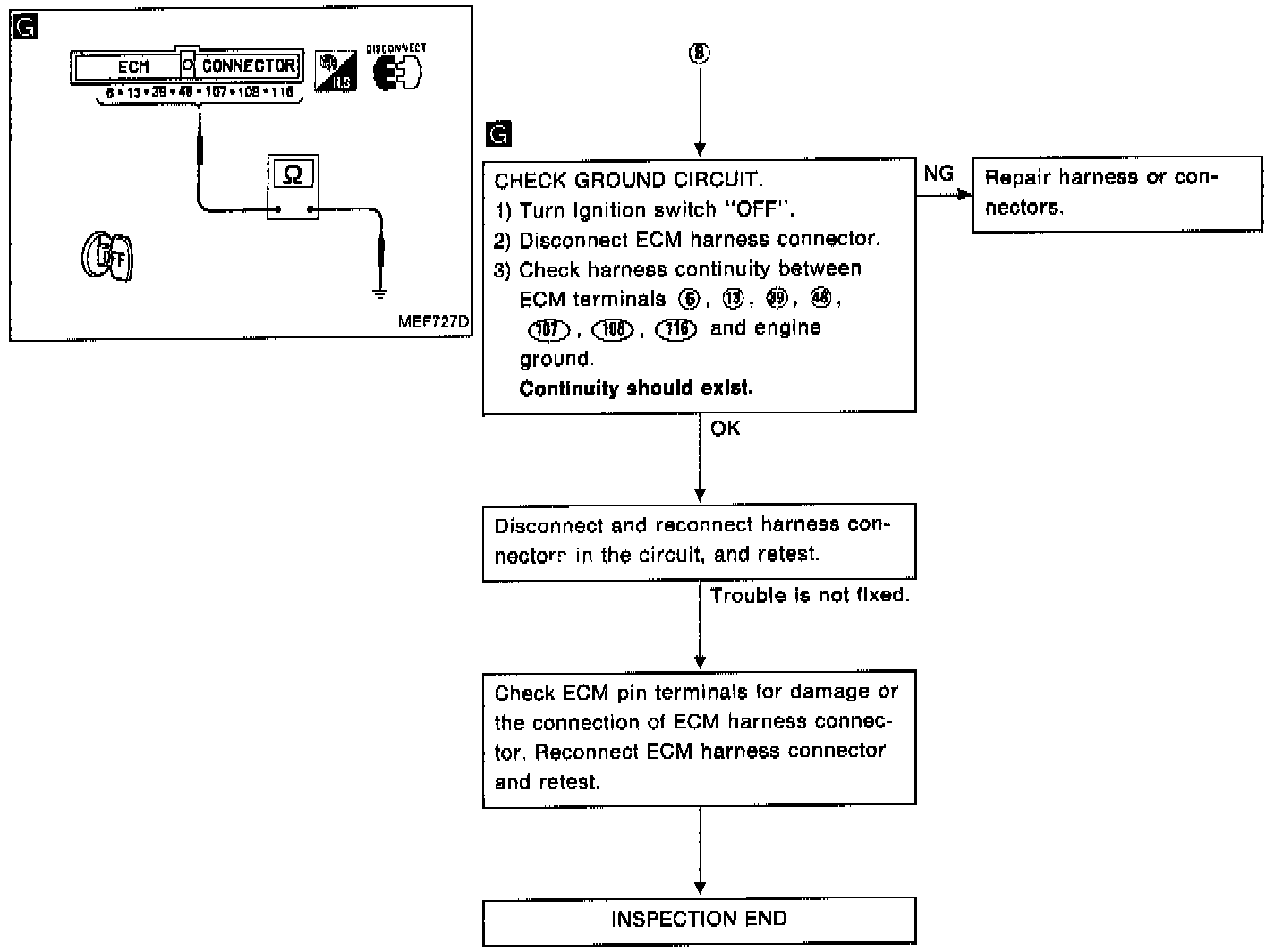

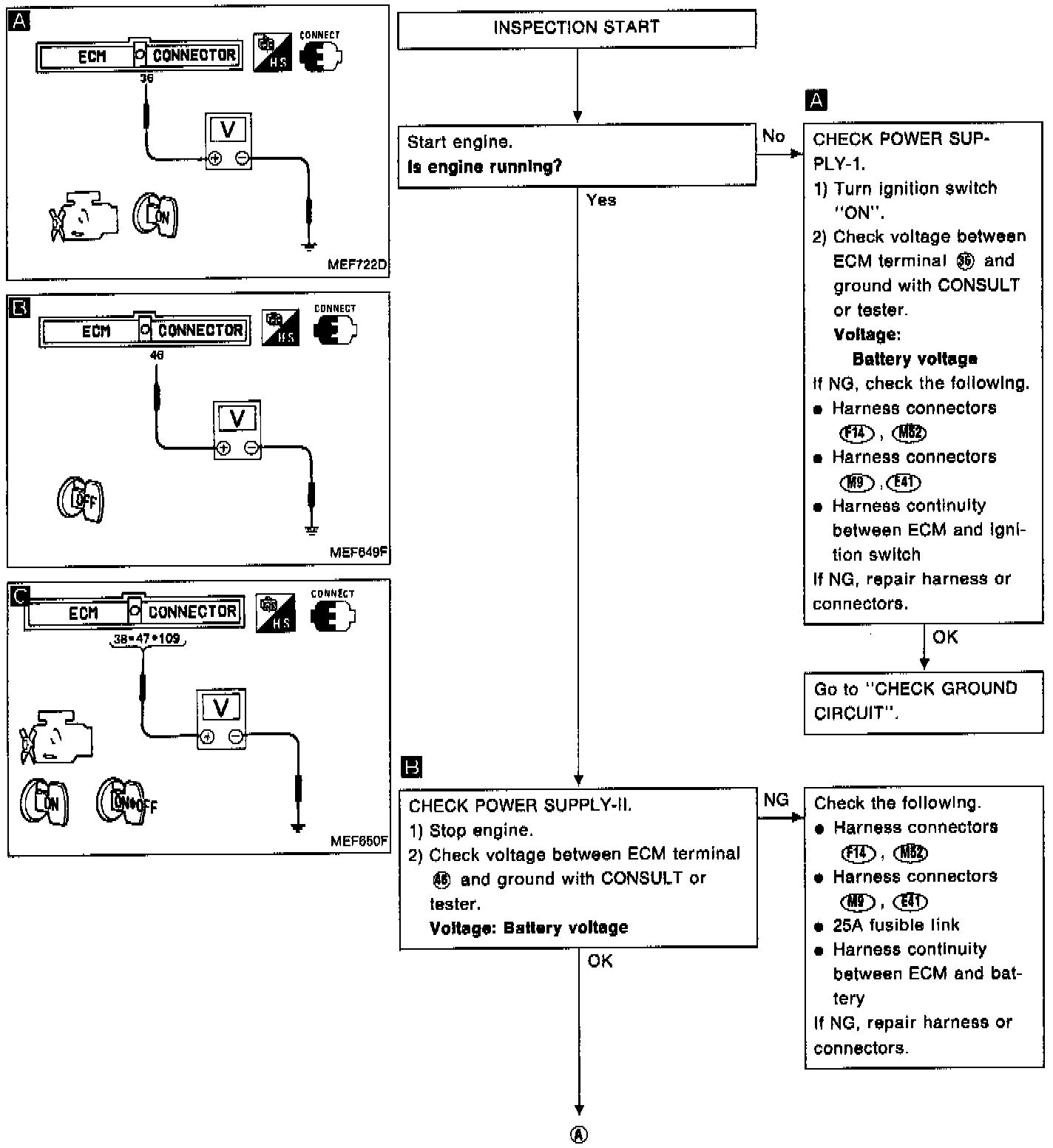

ECM Main Power And Ground Circuit Diagnostic Chart:




ECM Main Power And Ground Circuit Diagnostic Chart:




ECM Main Power And Ground Circuit Diagnostic Chart:





DIAGNOSTIC CHART

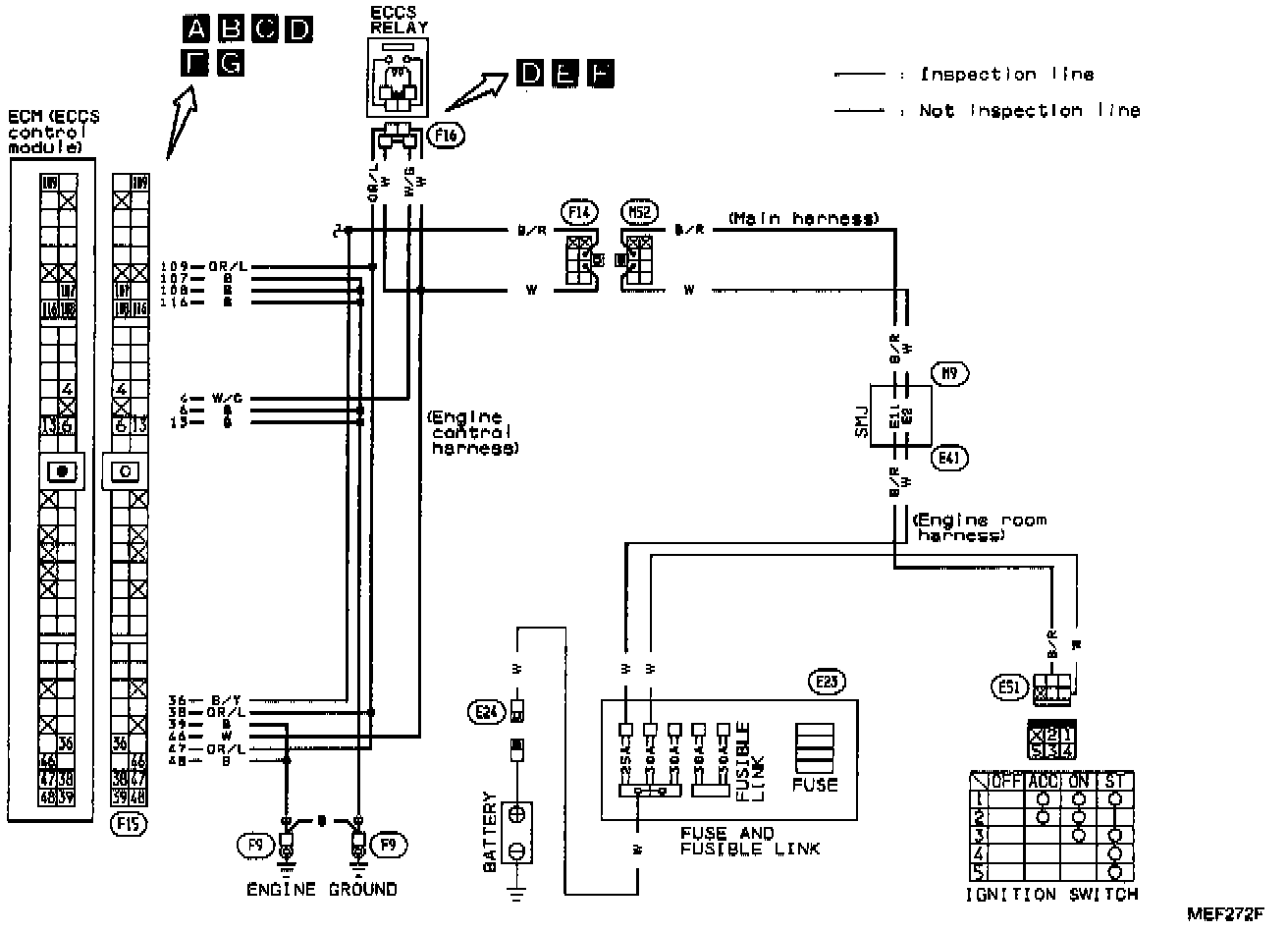

Main Power And Ground Circuit:





CIRCUIT DIAGRAM

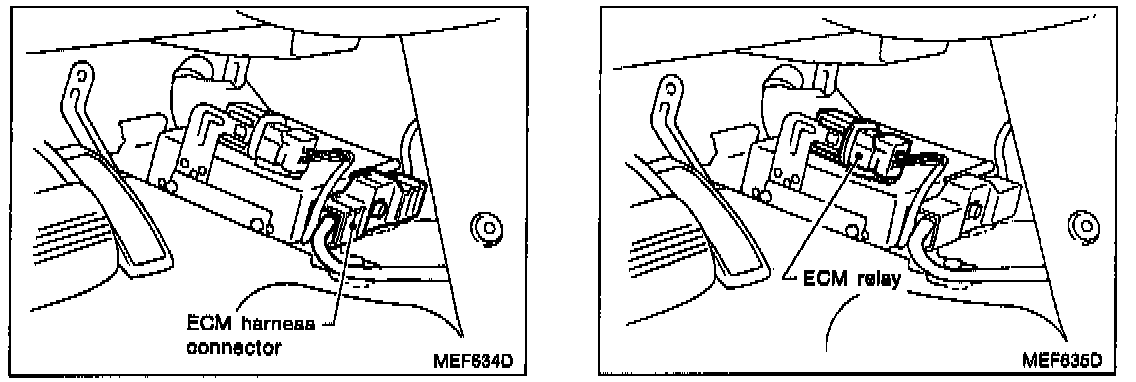

Harness Layout:





HARNESS LAYOUT
