Valve Timing Control Circuit

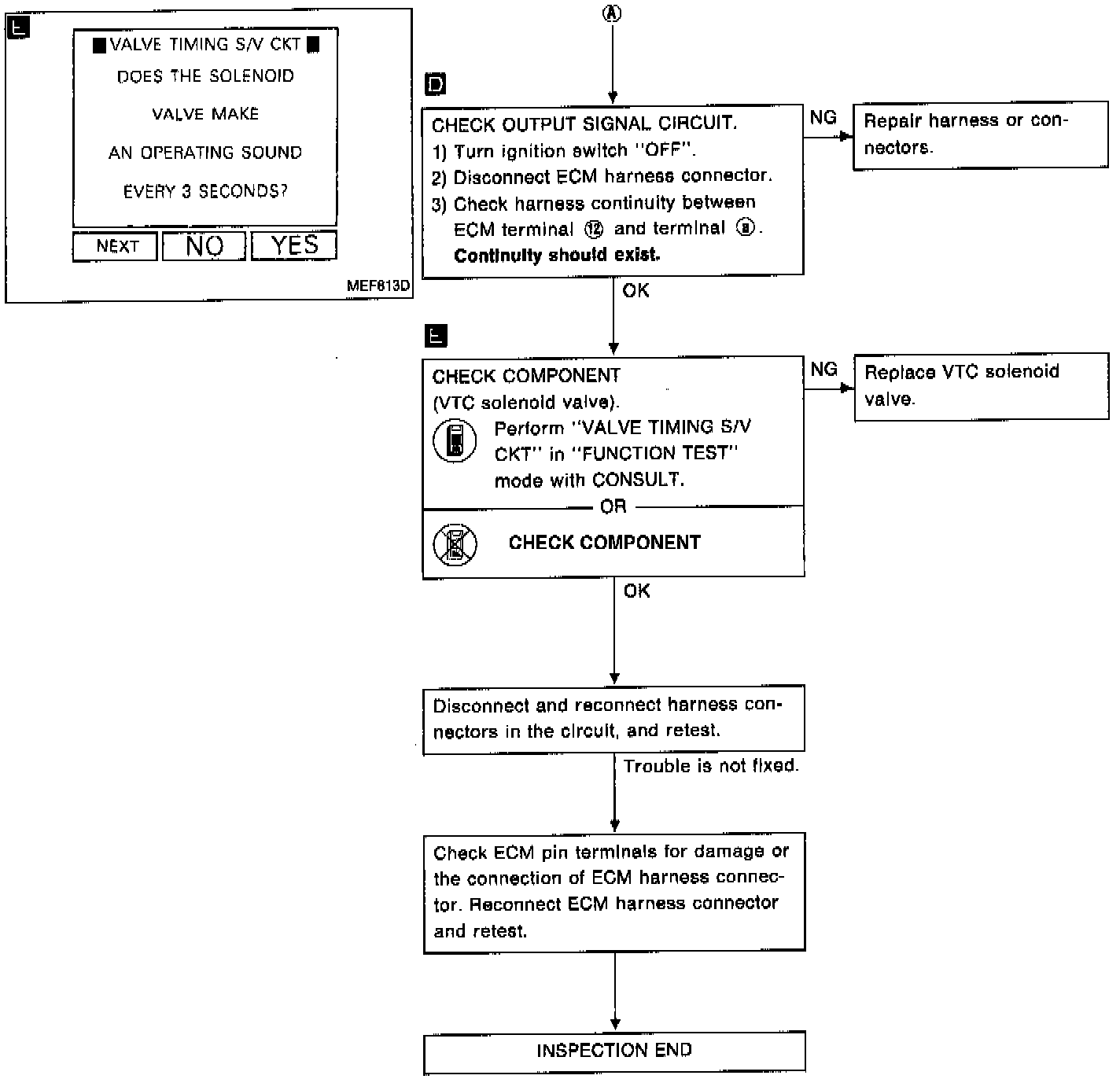

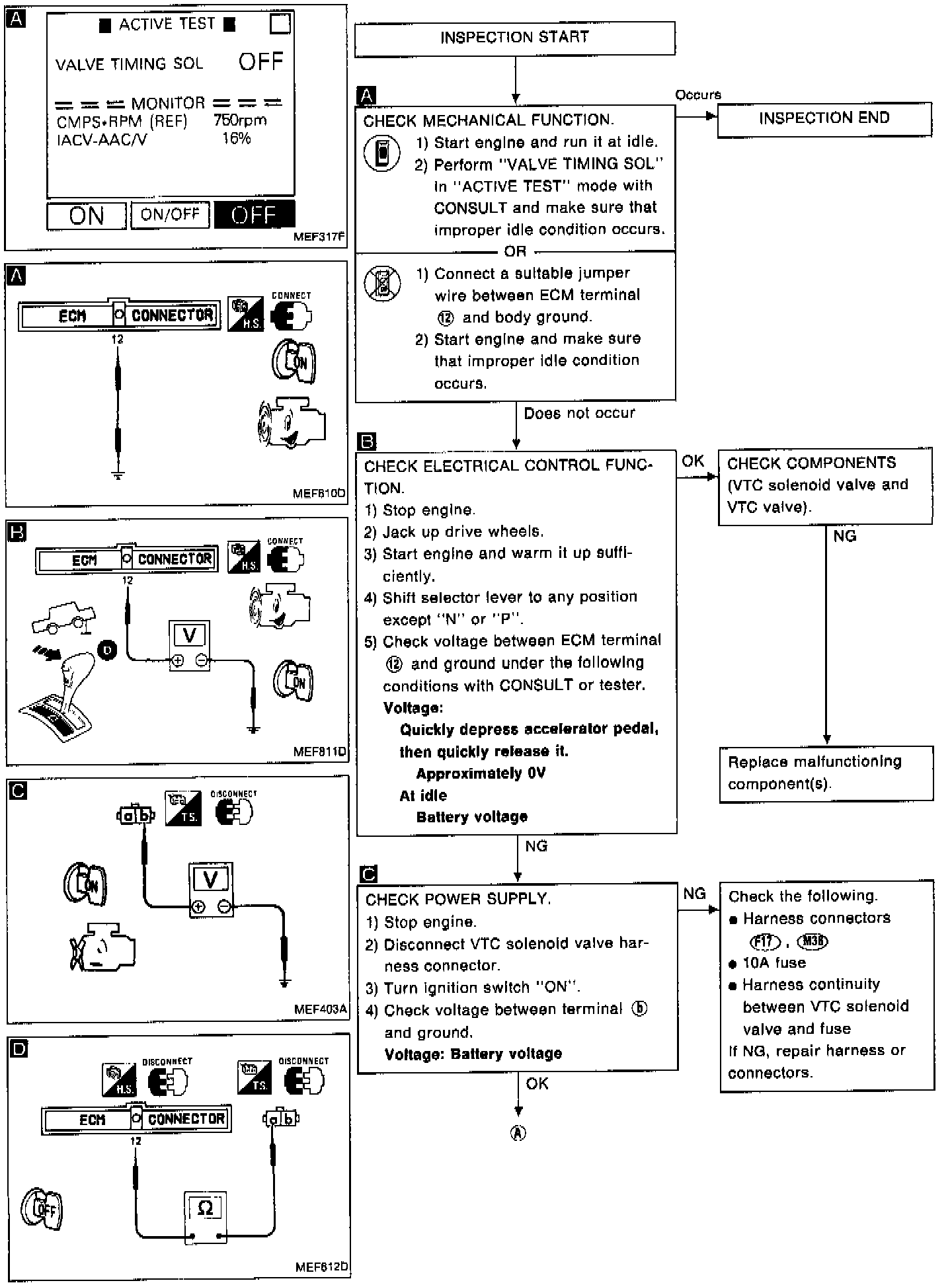

Valve Timing Control Solenoid Circuit Diagnostic Chart:




Valve Timing Control Solenoid Circuit Diagnostic Chart:





DIAGNOSTIC CHART

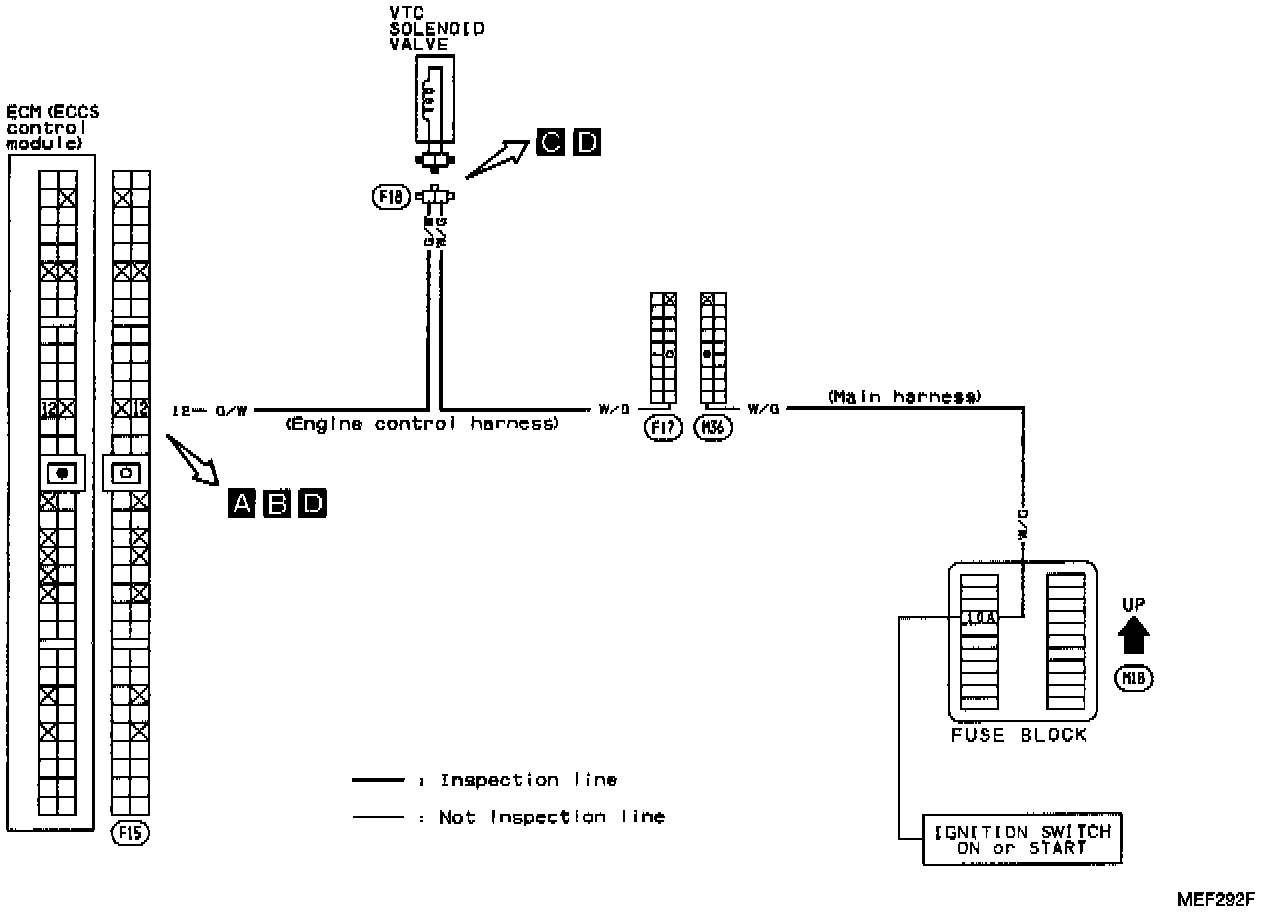

Valve Timing Control Solenoid Circuit:





CIRCUIT DIAGRAM

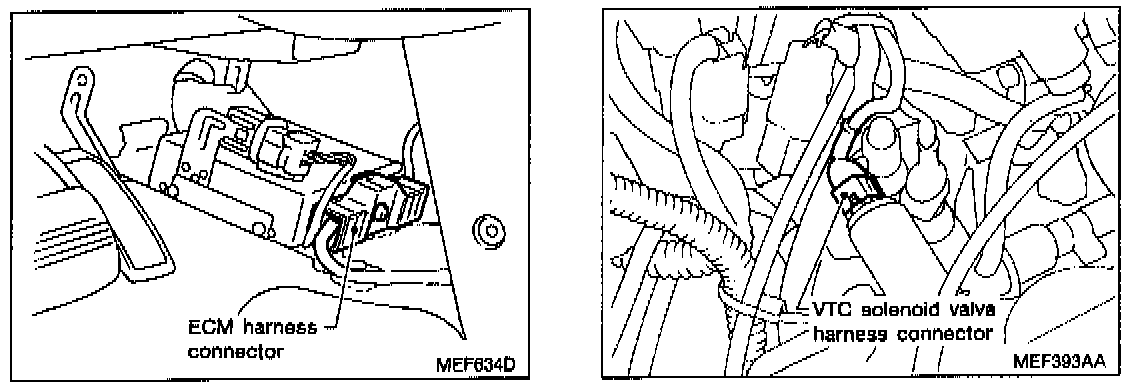

Harness Layout:





HARNESS LAYOUT
