Power Steering Oil Pressure Switch

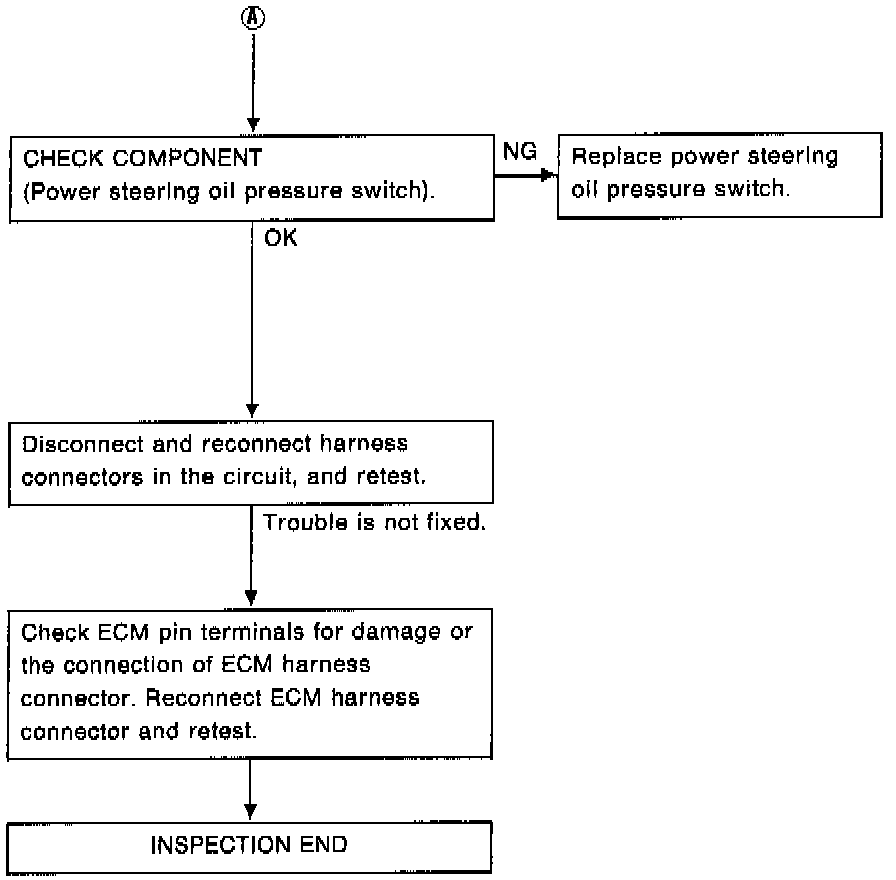

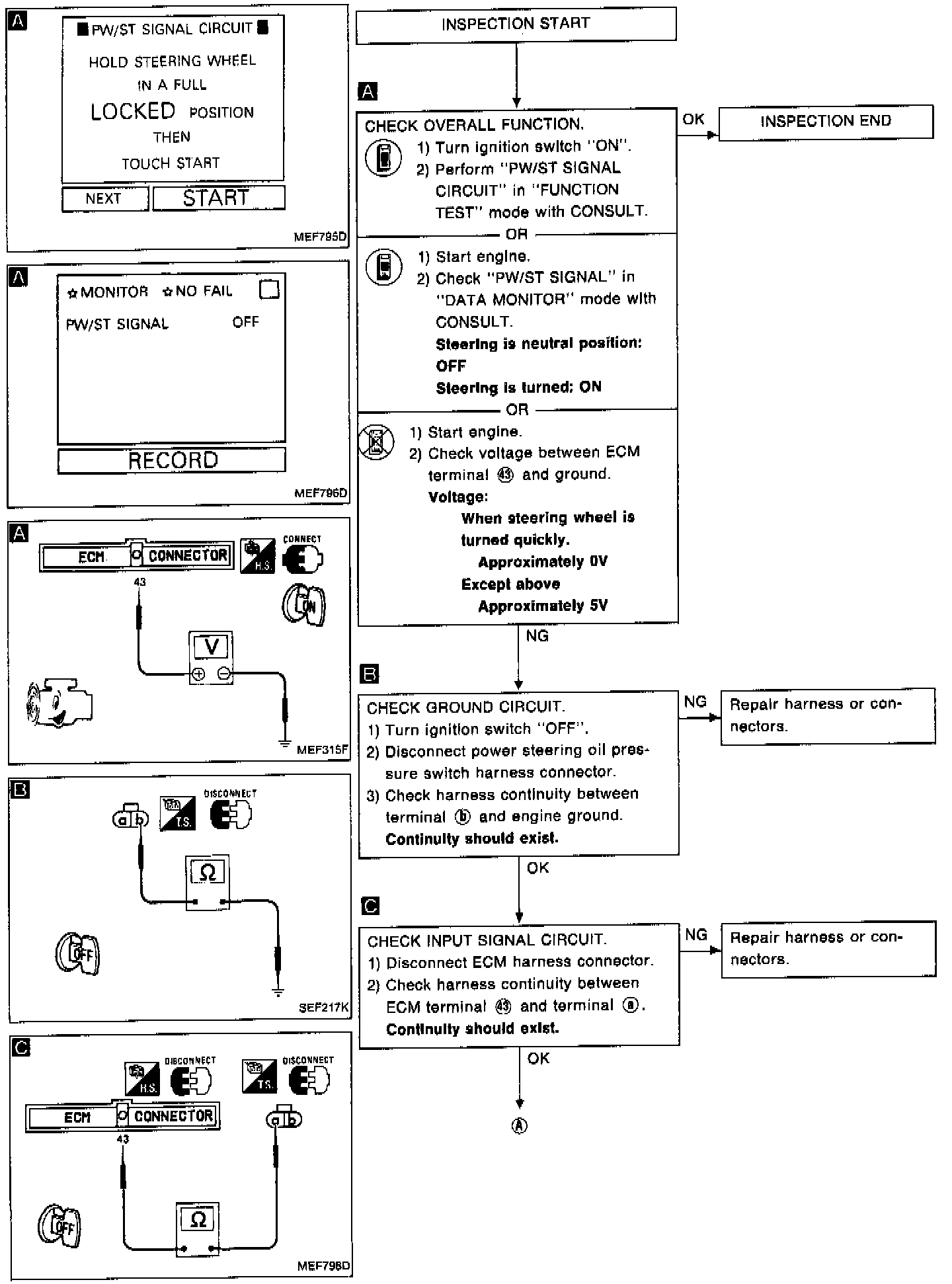

Power Steering Switch Circuit Diagnostic Chart:




Power Steering Switch Circuit Diagnostic Chart:





DIAGNOSTIC CHART

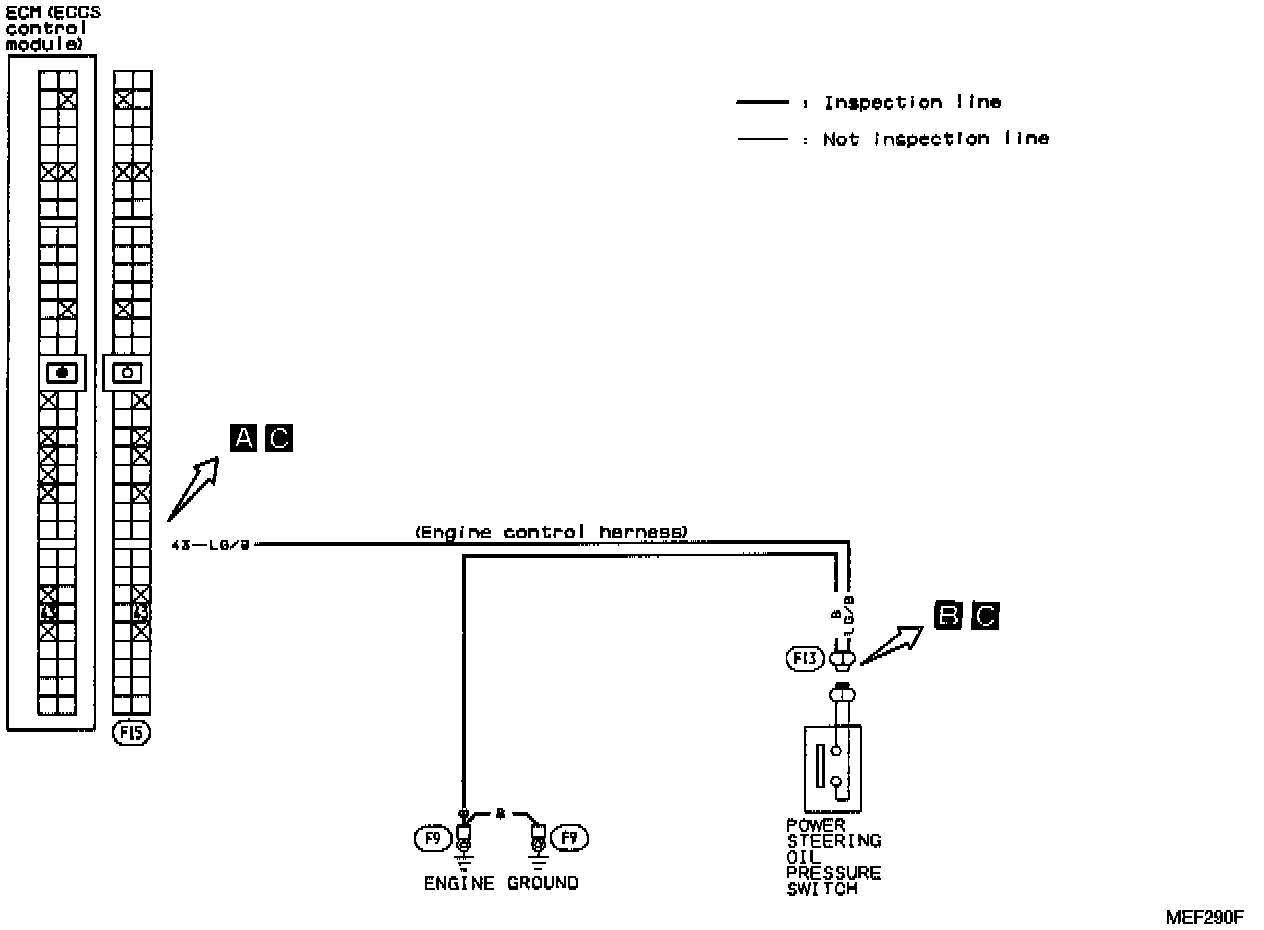

Power Steering Switch Circuit:





CIRCUIT DIAGRAM

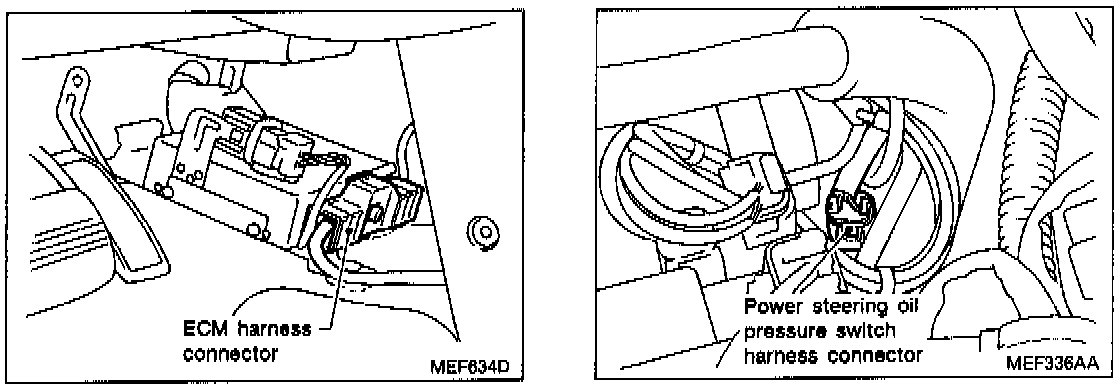

Harness Layout:





HARNESS LAYOUT
