Oxygen Sensor
Oxygen Sensor

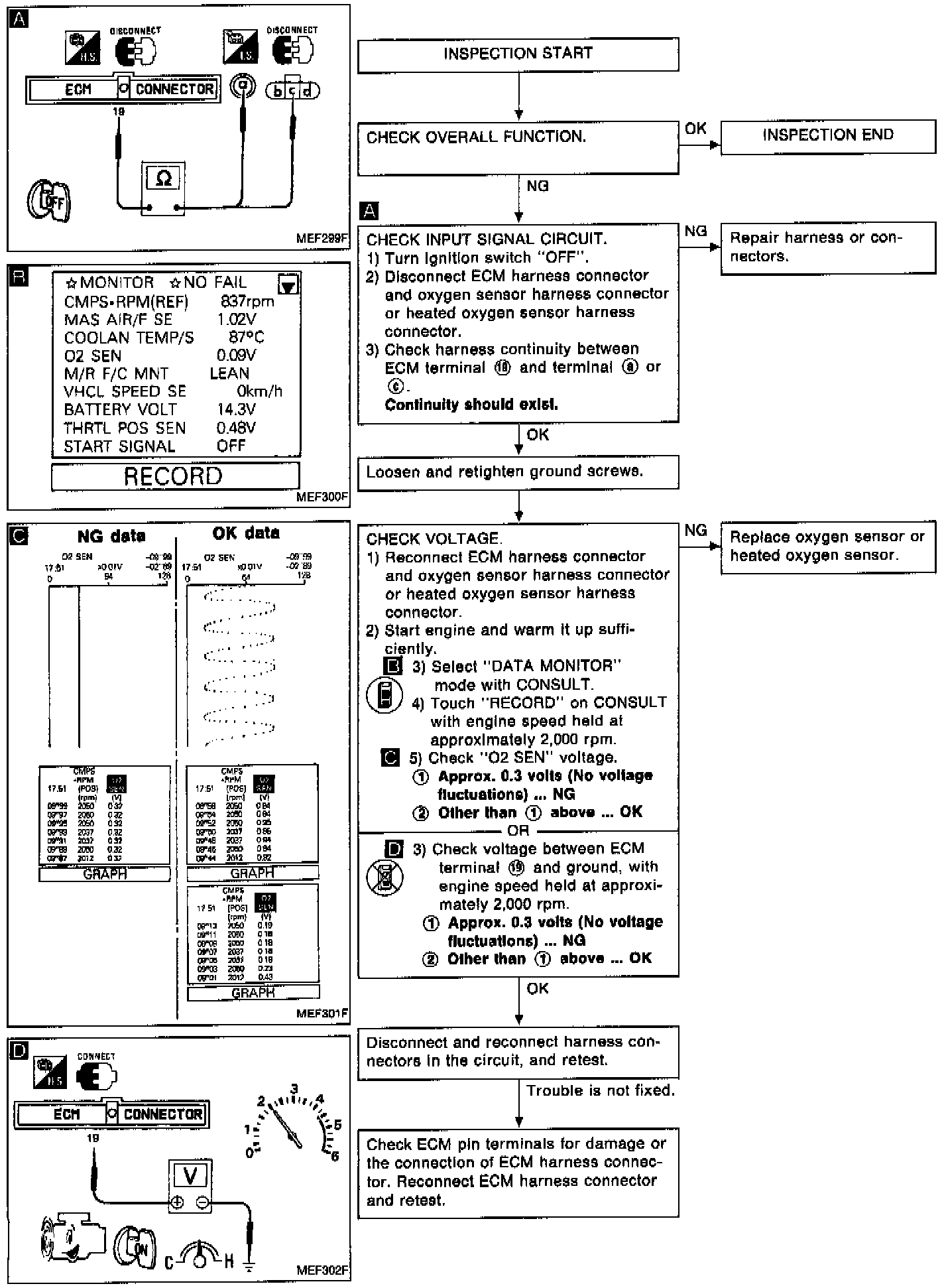

DTC 33 O2 Sensor/Heated O2 Sensor Diagnostic Chart:
DIAGNOSTIC CHART

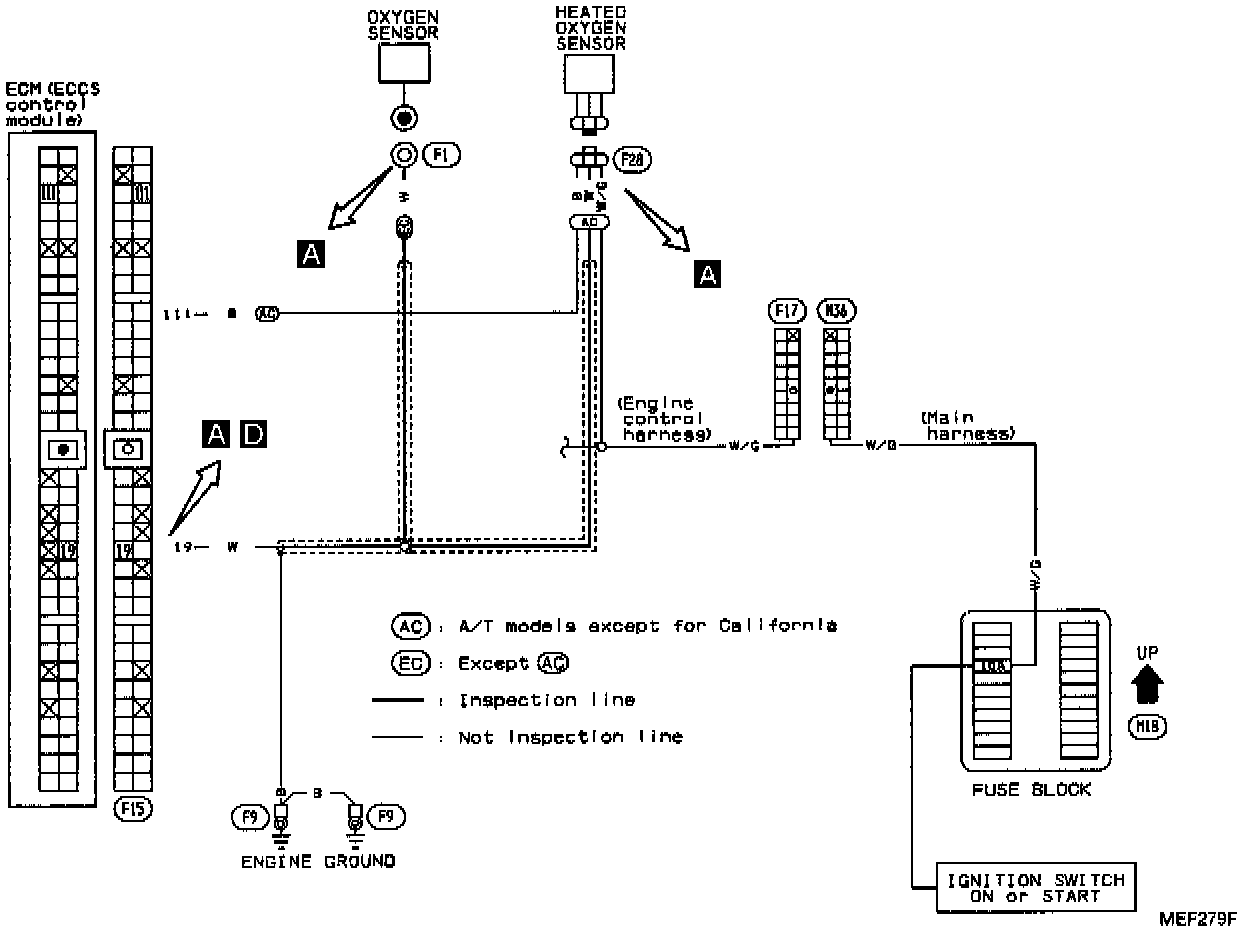

O2 Sensor/Heated O2 Sensor Circuit:
CIRCUIT DIAGRAM

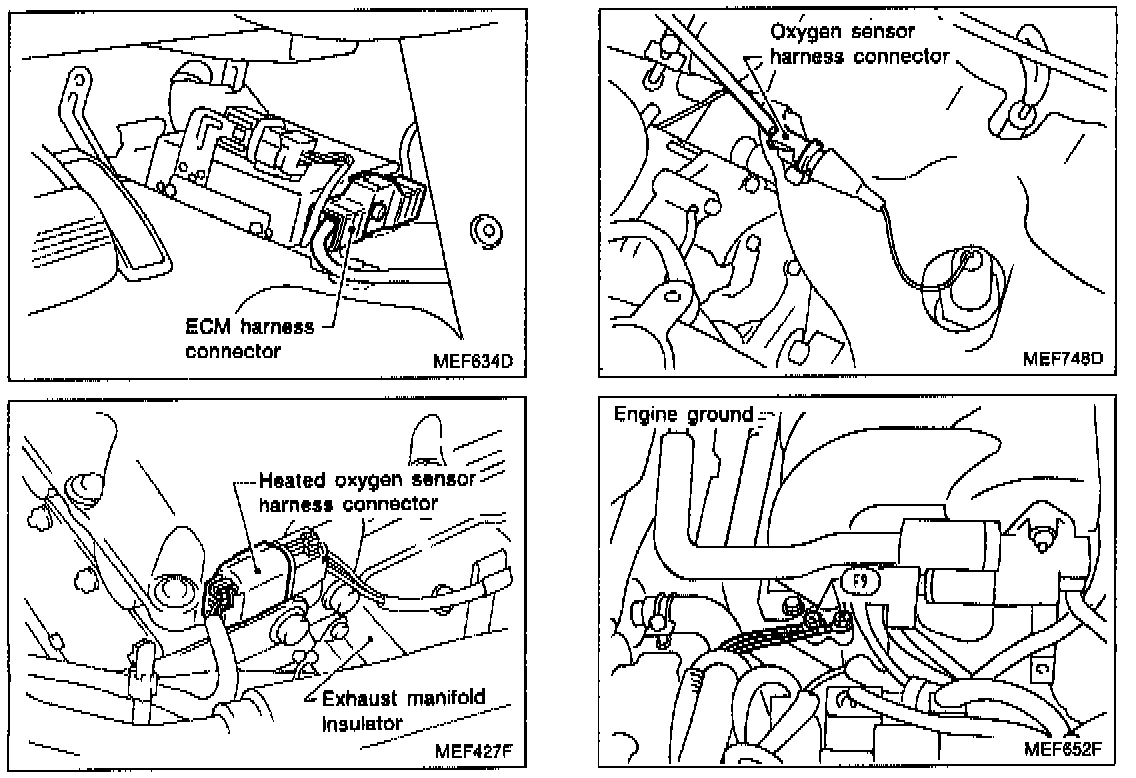

Harness Layout:
HARNESS LAYOUT
