Neutral Switch Circuit

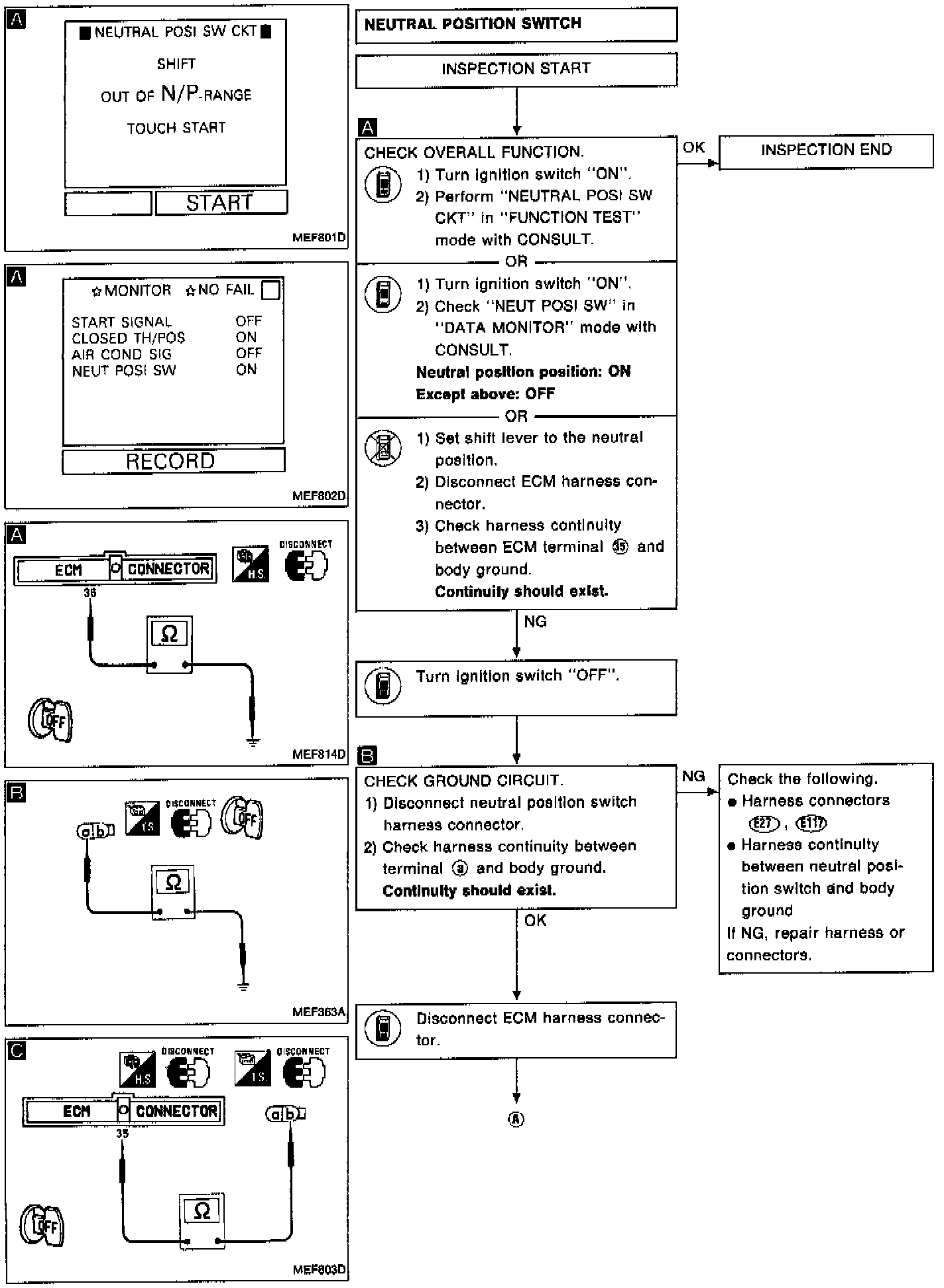

Neutral Position Switch Circuit Diagnostic Chart:




Neutral Position Switch Circuit Diagnostic Chart:

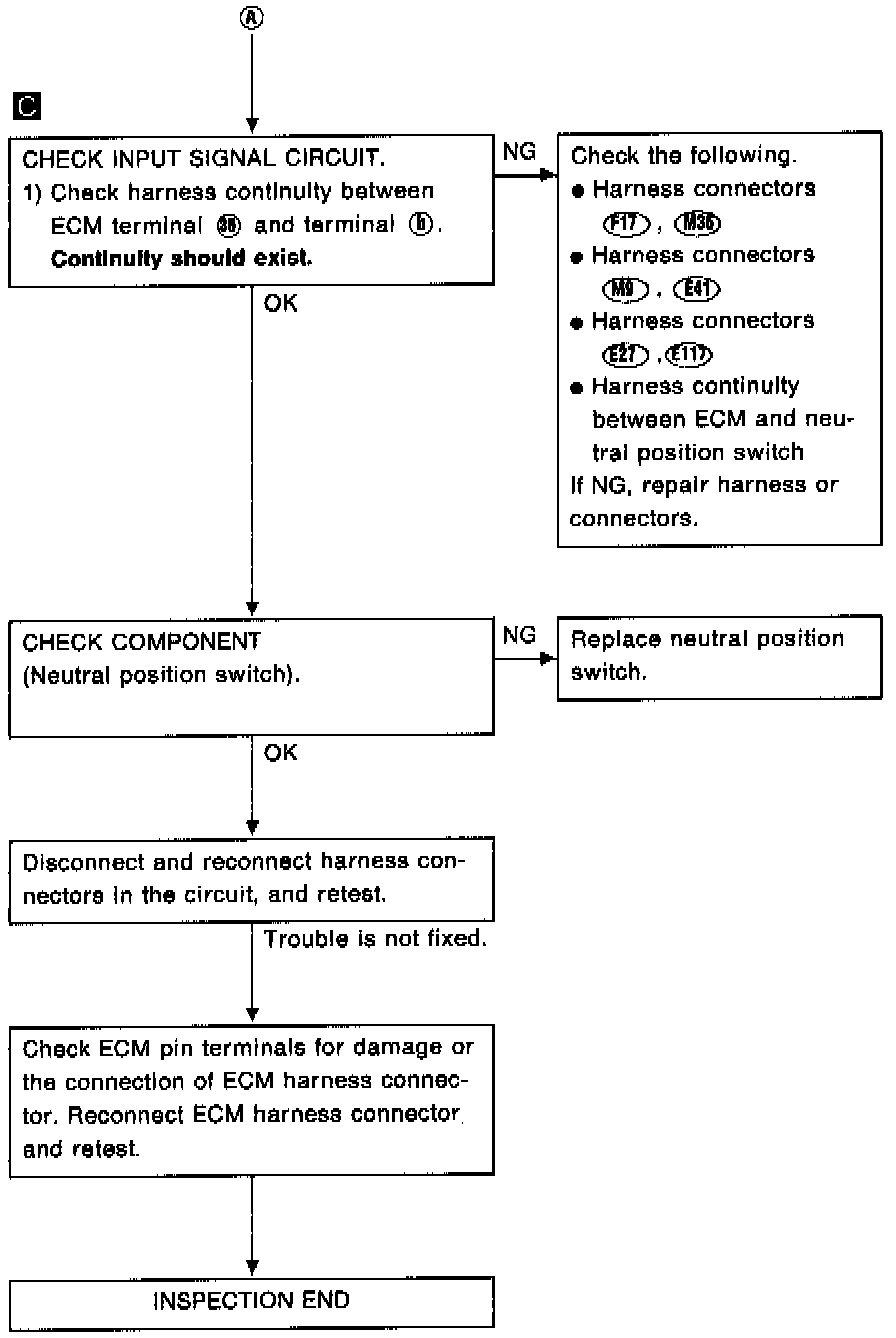

DIAGNOSTIC CHART

Neutral Position Switch/Inhibitor Switch Circuit:





CIRCUIT DIAGRAM

Harness Layout:





HARNESS LAYOUT
