EGR Control (Federal)

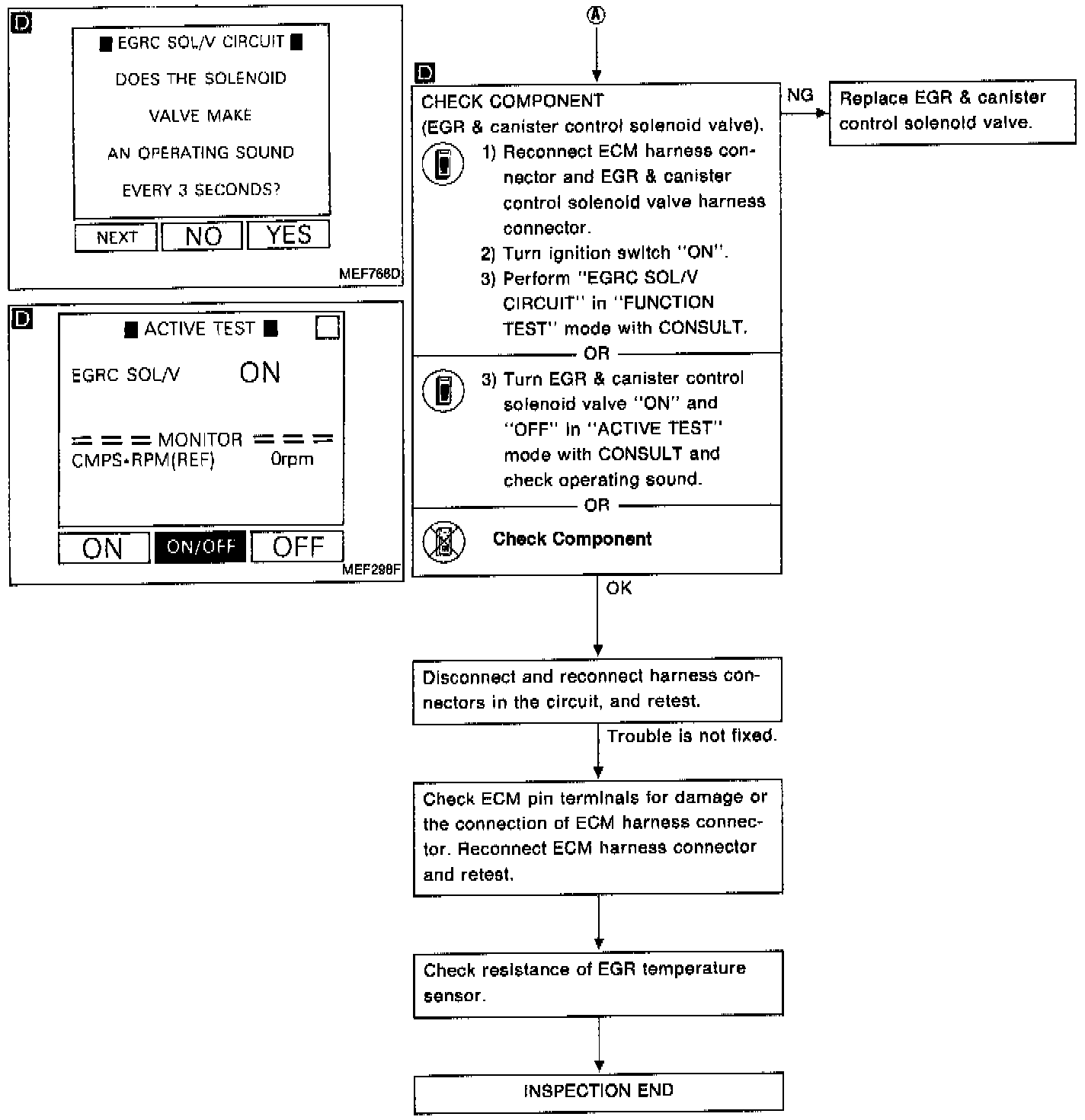

EGR Control/Canister Purge Control Diagnostic Chart:

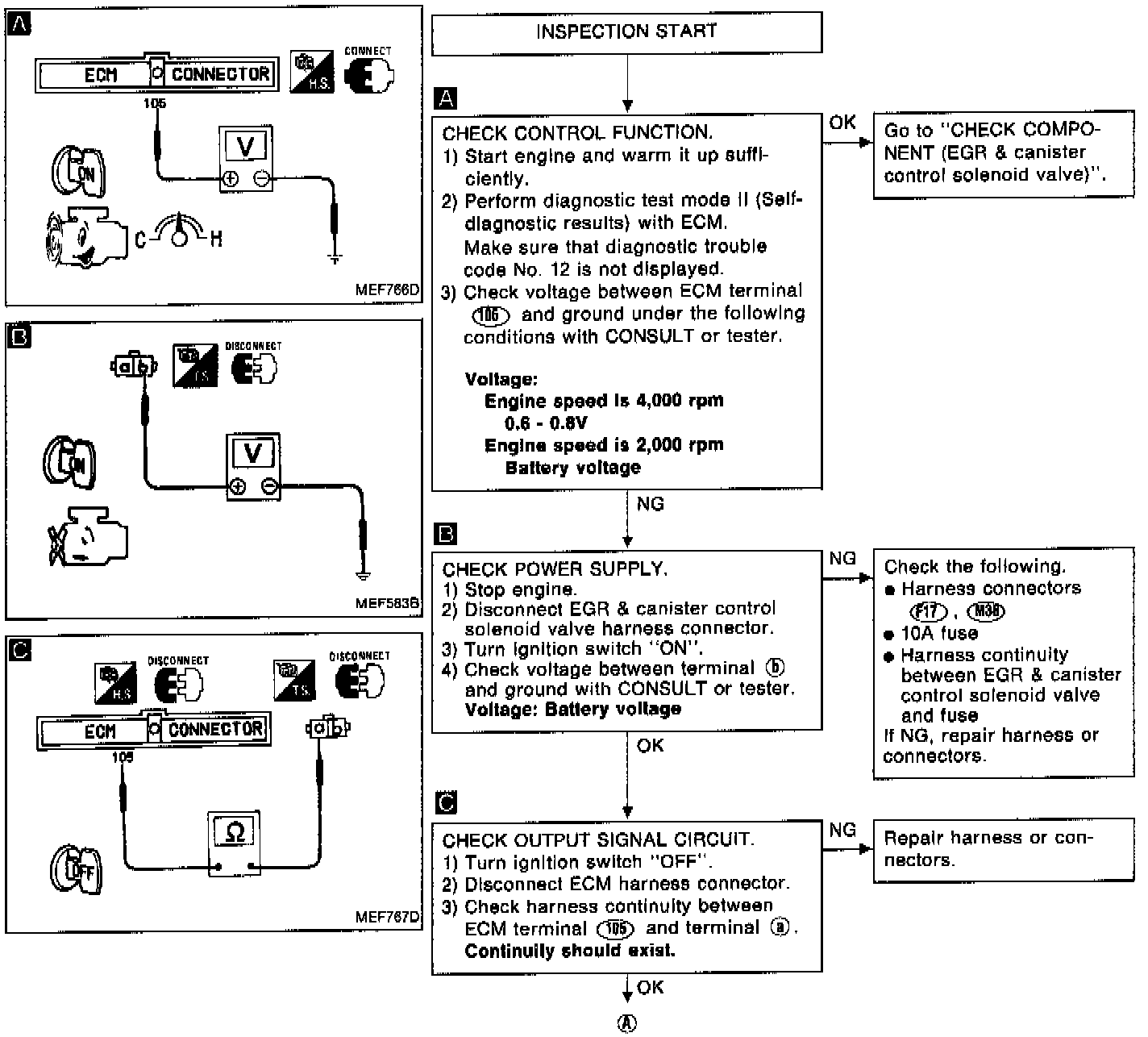

EGR Control/Canister Purge Control Diagnostic Chart:





DIAGNOSTIC CHART

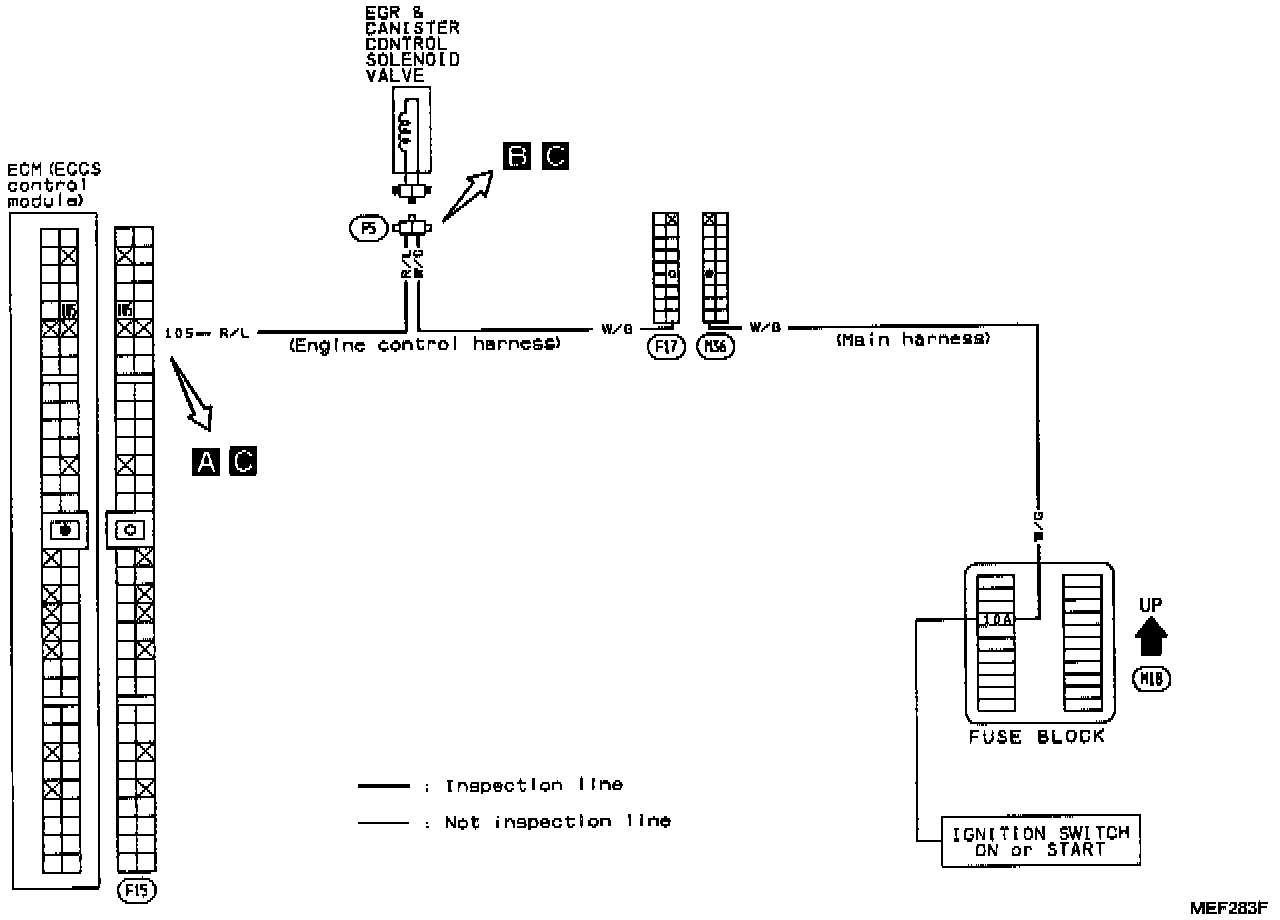

EGR Control/Canister Purge Control Circuit:





CIRCUIT DIAGRAM

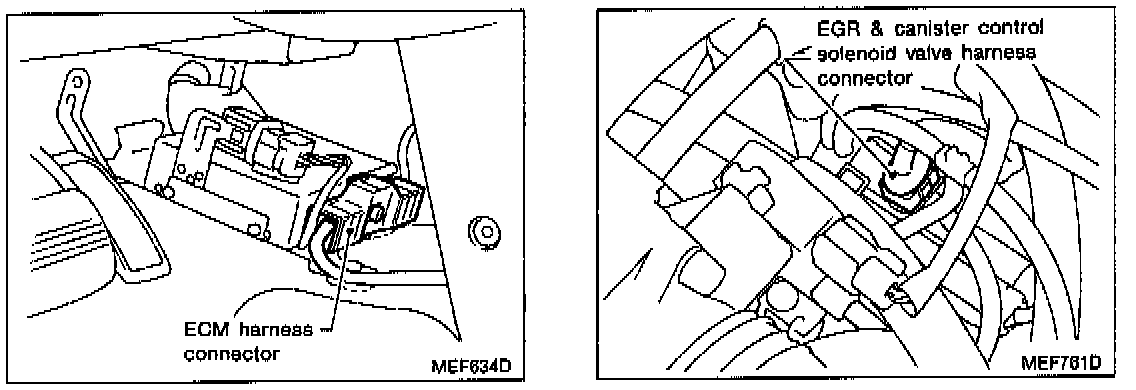

Harness Layout:





HARNESS LAYOUT
