Cooling Fan Control Circuit Diagnostic Chart - EXC A/T For U.S.A.:

Cooling Fan Control Circuit Diagnostic Chart - EXC A/T For U.S.A.:

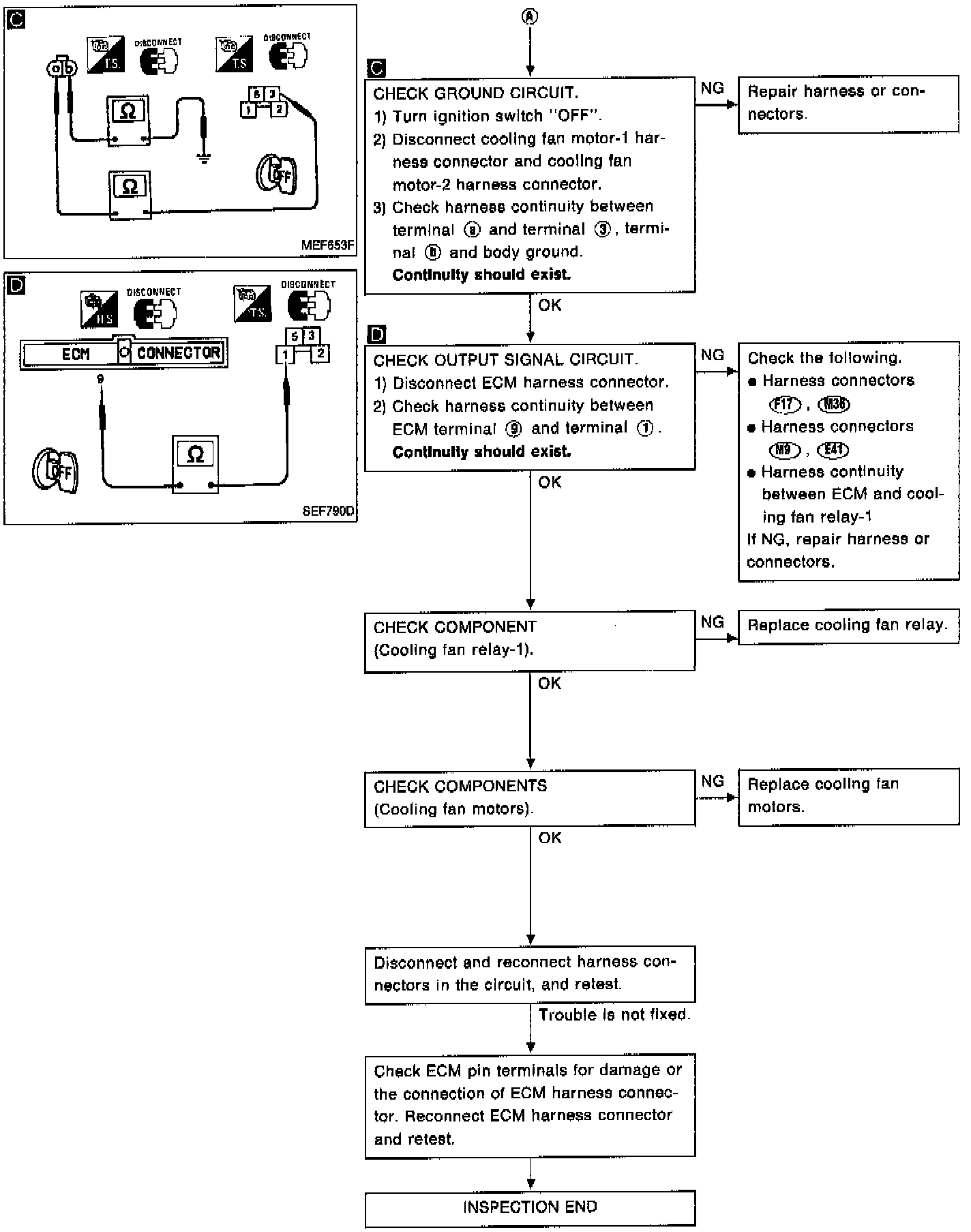

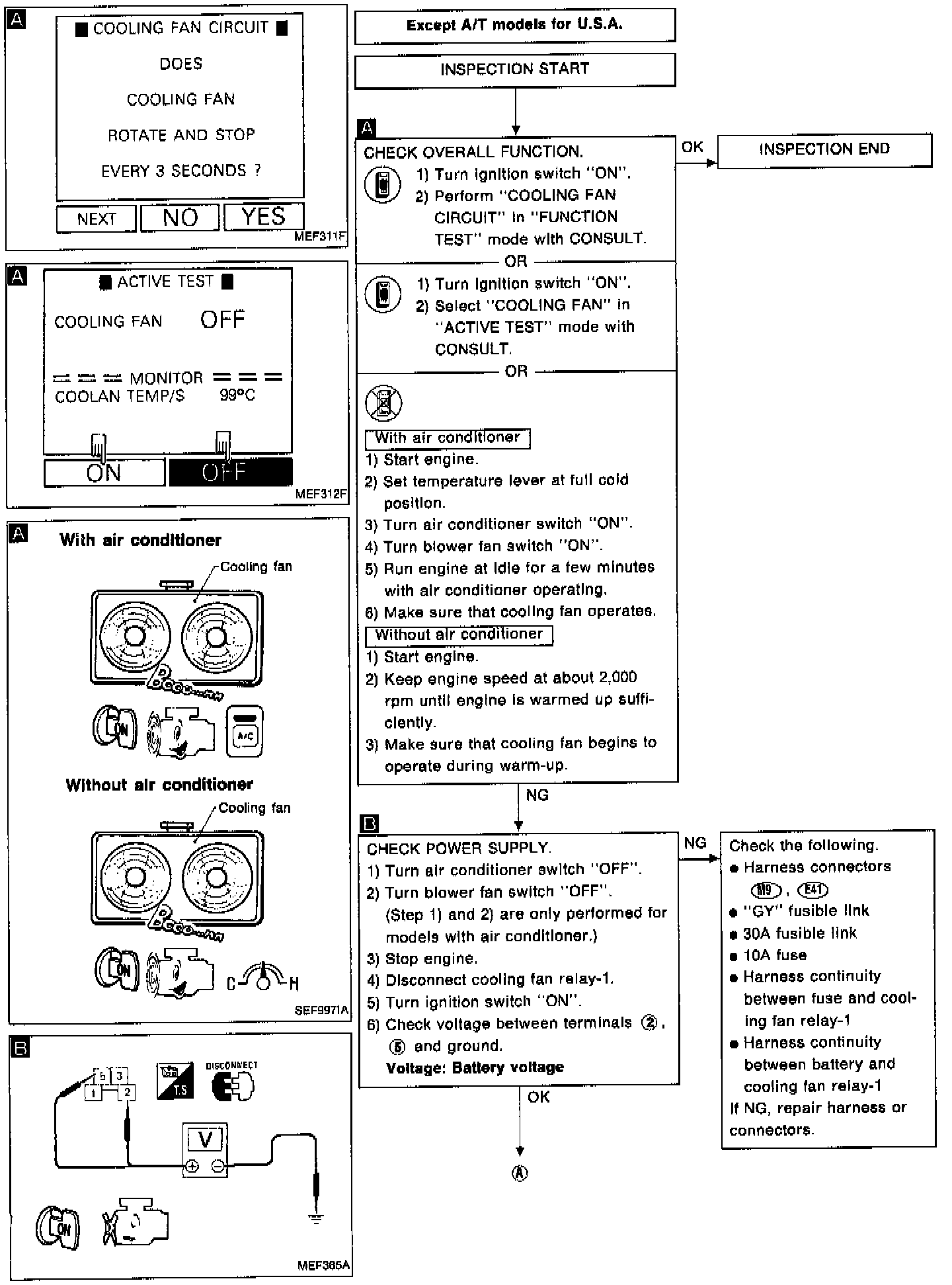

DIAGNOSTIC CHART

Cooling Fan Control Circuit:

CIRCUIT DIAGRAM

Harness Layout:

HARNESS LAYOUT
