Automatic Transmission

Cooling Fan Control Circuit Diagnostic Chart - A/T For USA:




Cooling Fan Control Circuit Diagnostic Chart - A/T For USA:

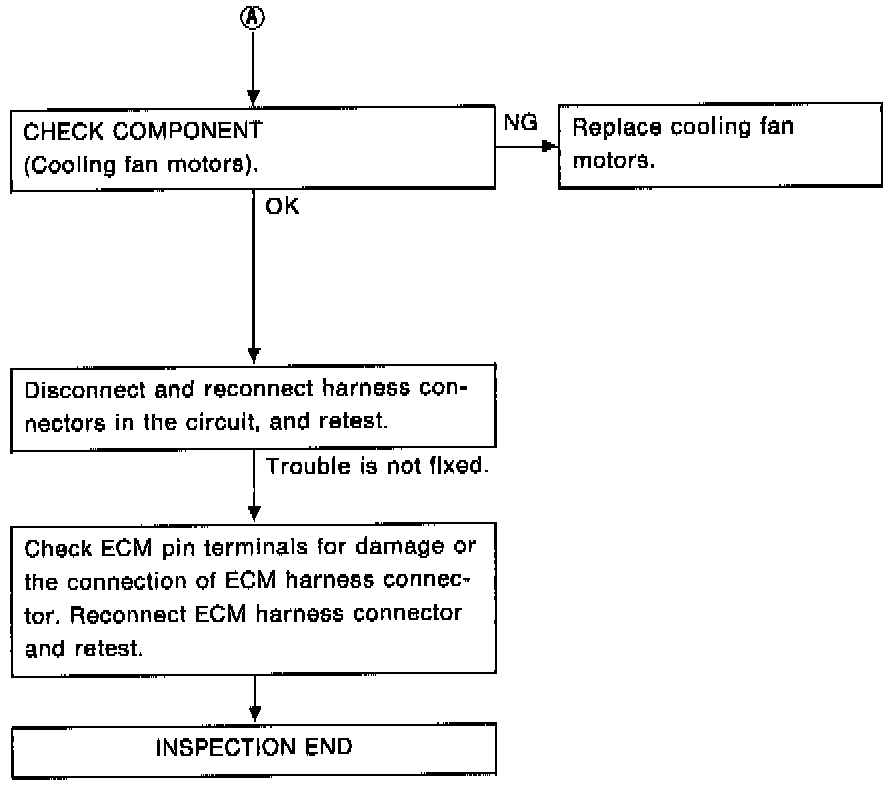

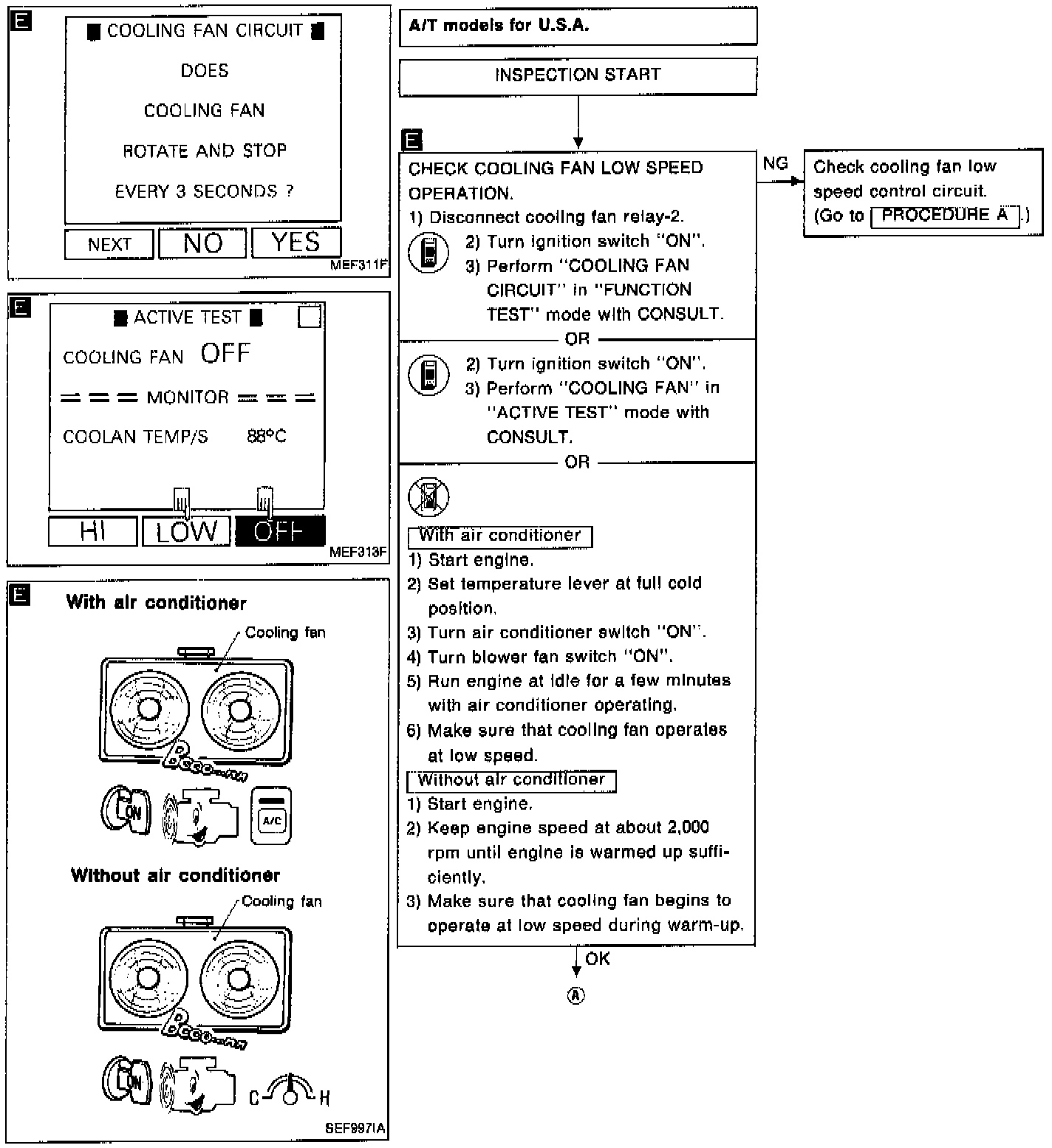

DIAGNOSTIC CHART

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:




Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

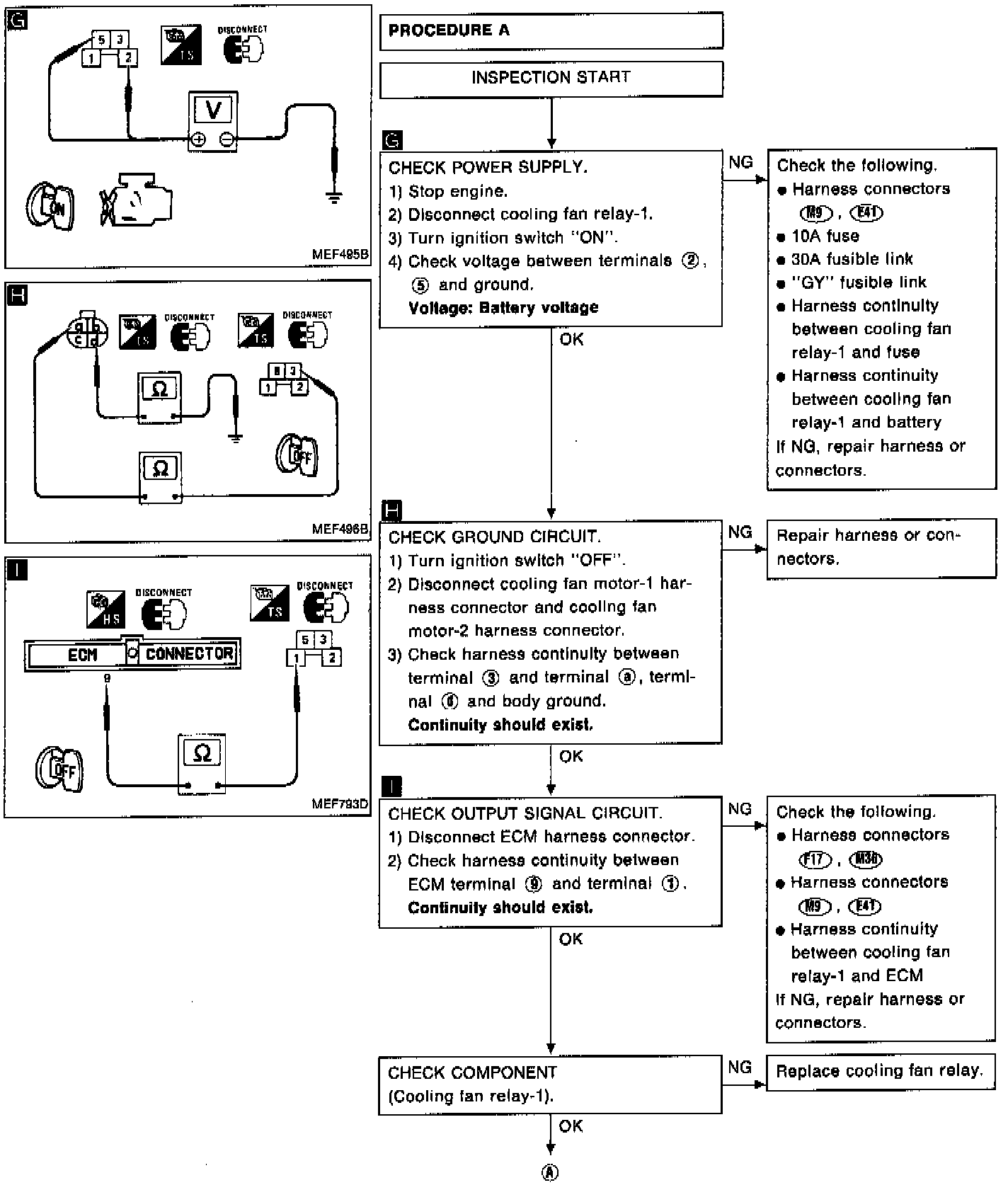

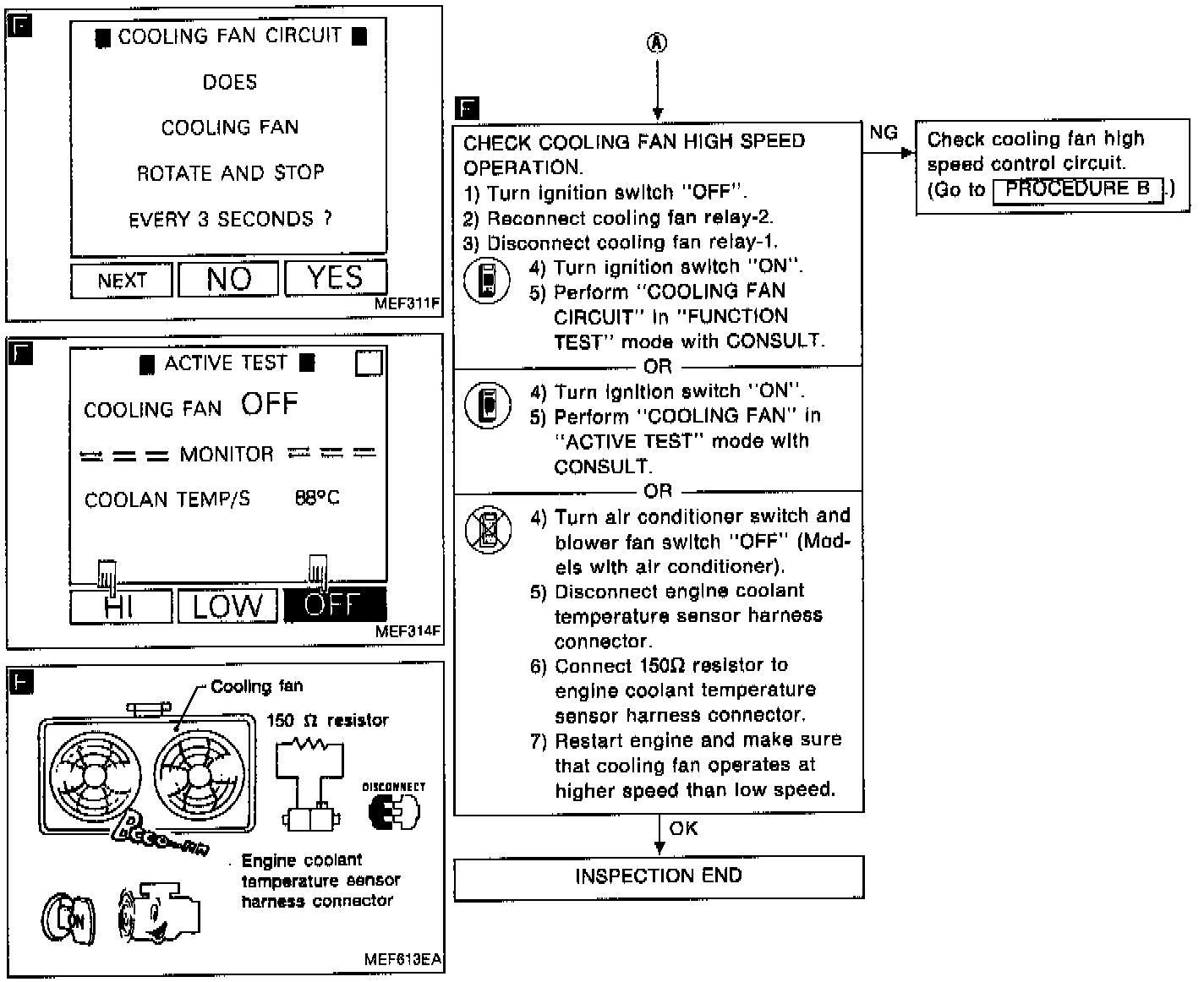

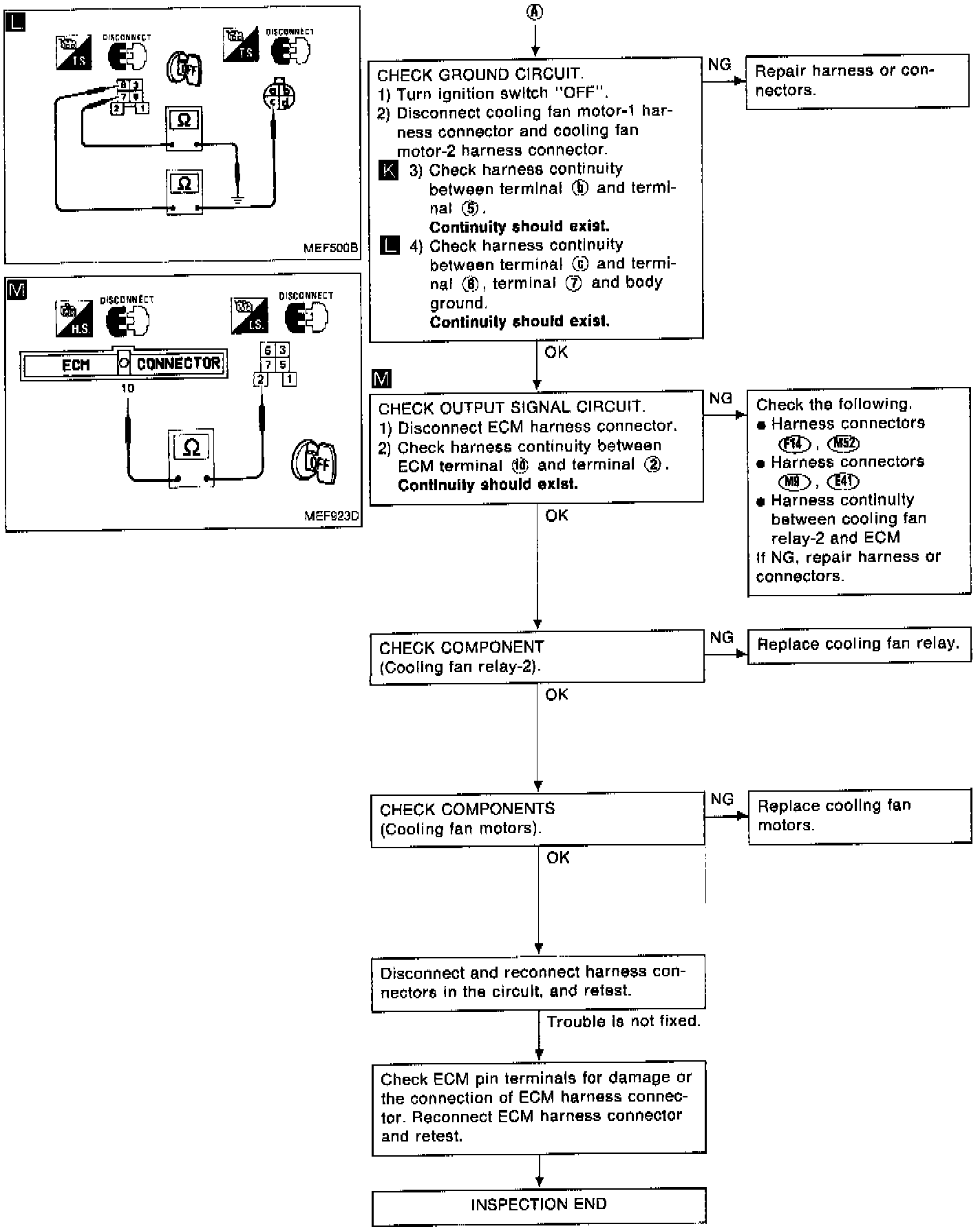

PROCEDURE A

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:




Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:

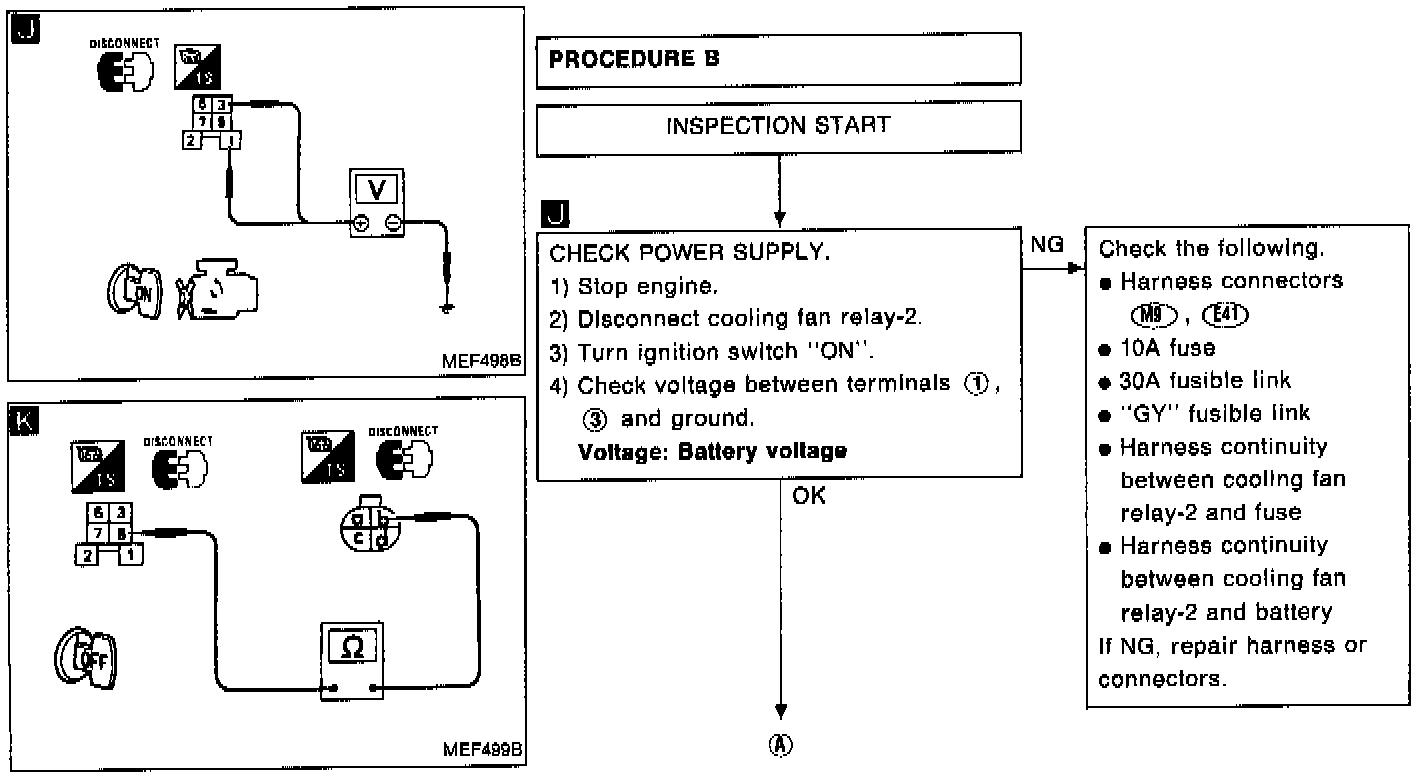

PROCEDURE B

Cooling Fan Control Circuit:

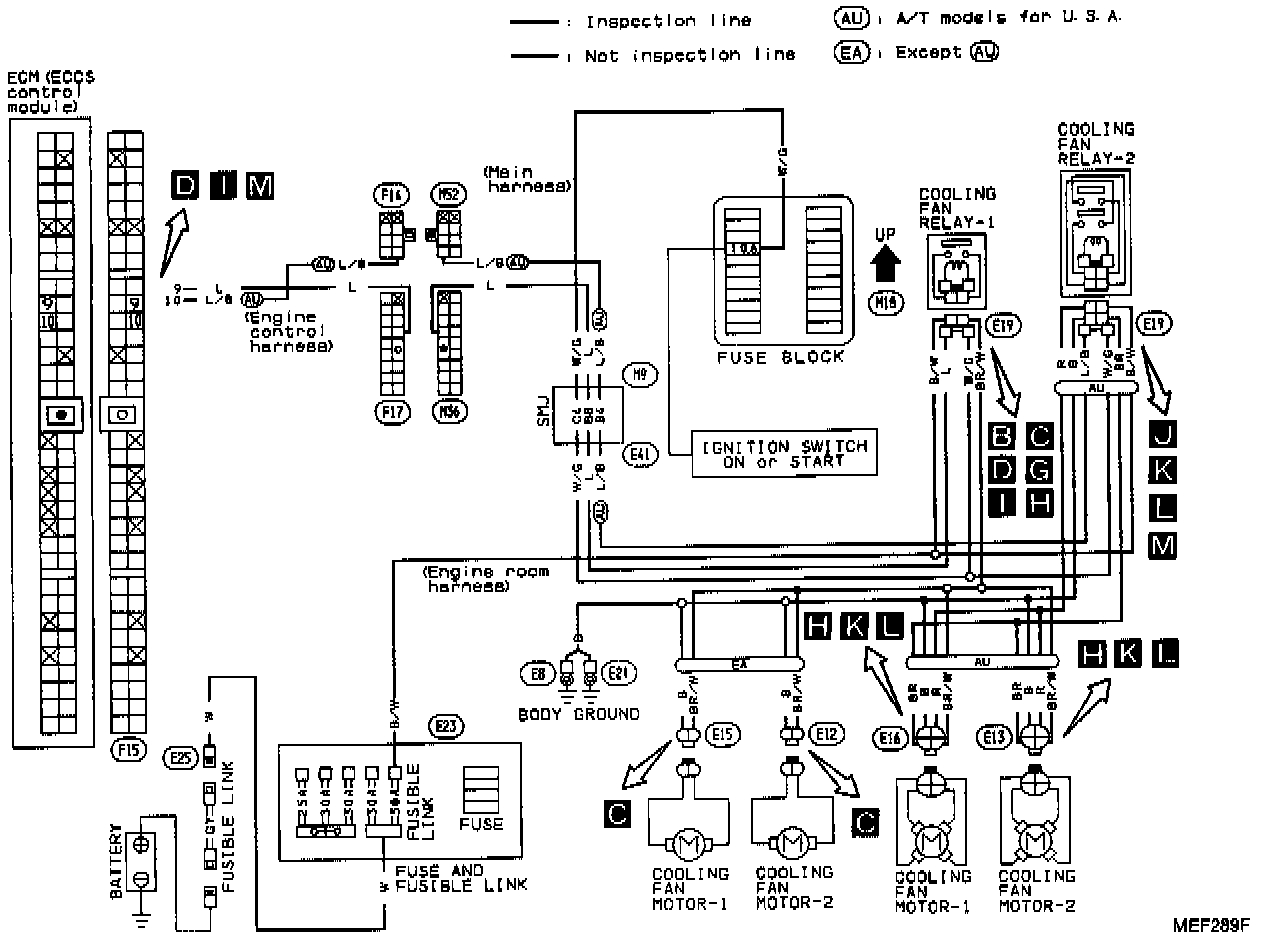

CIRCUIT DIAGRAM

Harness Layout:

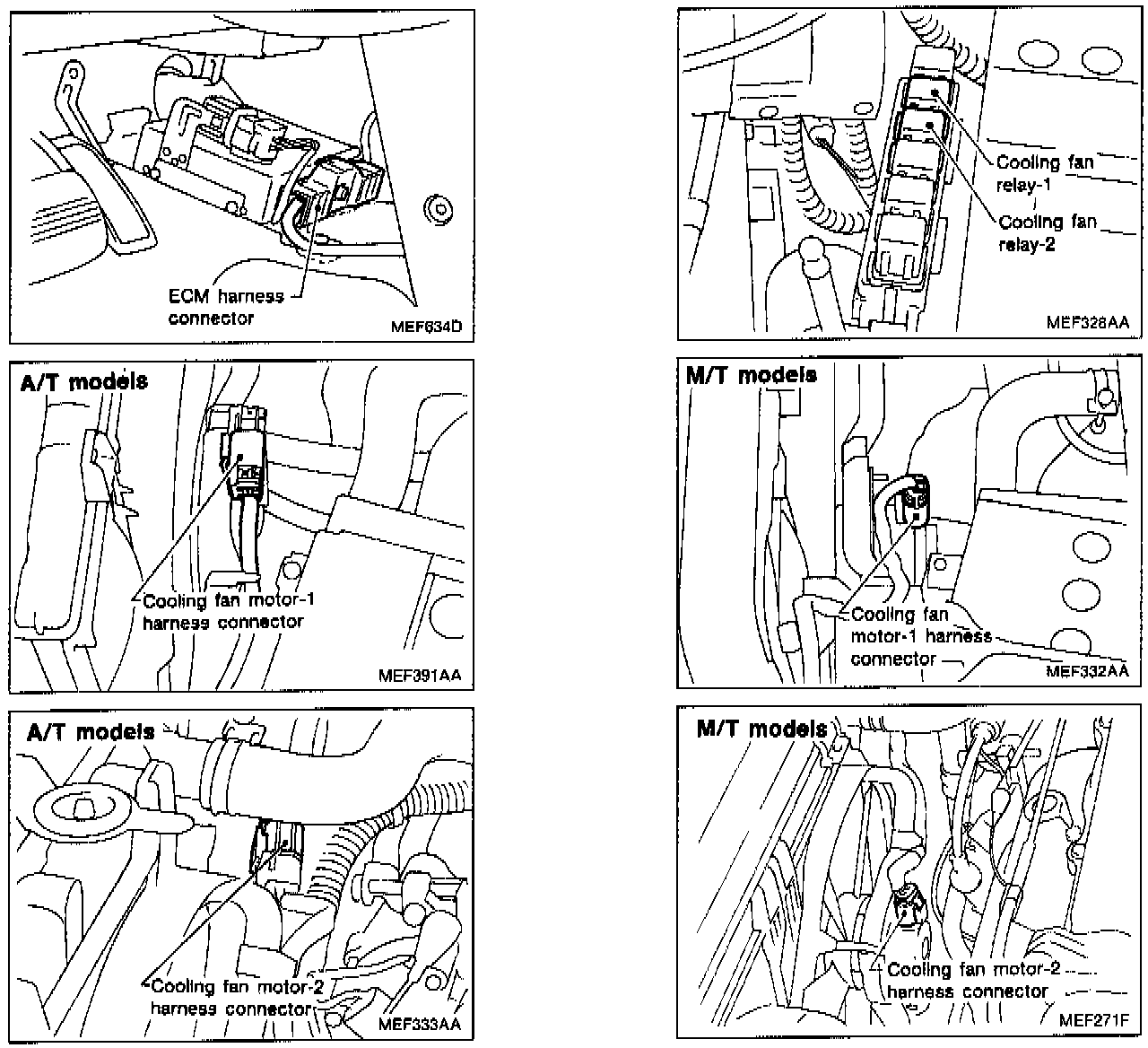

HARNESS LAYOUT
