Vehicle Speed Sensor: Testing and Inspection

Vehicle Speed Sensor Test:

1. Raise drive wheels.
2. Disconnect the speed sensor connector, on the transaxle.

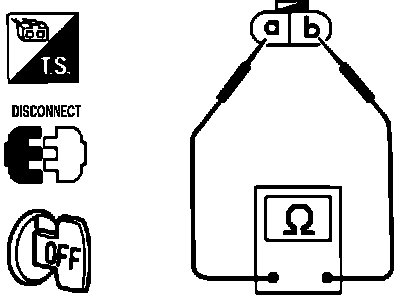

3. Using an ohmmeter, check for continuity across sensor terminals.
4. Continuity should open and close as wheels are turned SLOWLY.
5. Replace sensor if it fails the above test.
