Cooling Fan Control System

Radiator Fan Control:

PURPOSE
To allow the Engine Control Module (ECM) to control cooling fan operation based on various sensor input signals.

OPERATION

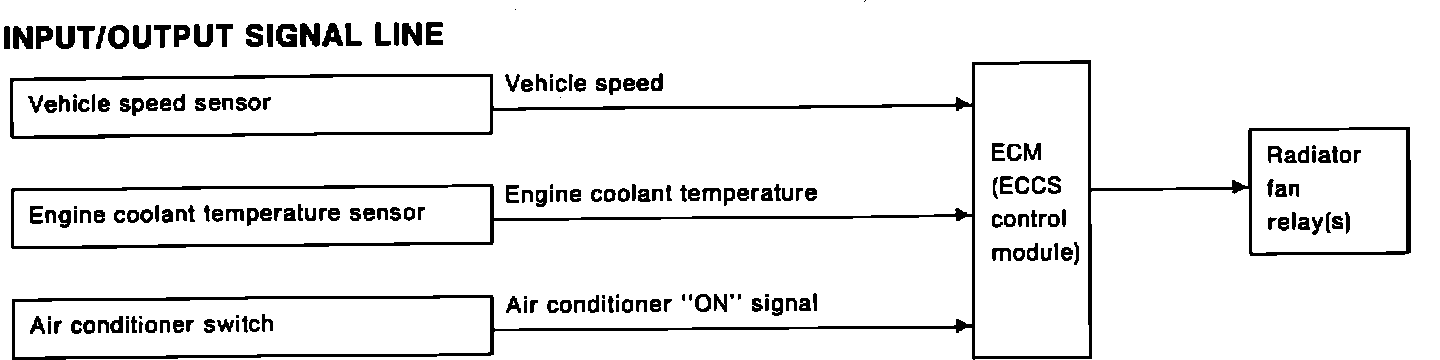

The ECM provides the ground signals to the radiator fan relays to control fan speed and operation based on signals supplied from the engine coolant temperature sensor, Air Conditioner ON signal and vehicle speed sensor. Automatic Transmissions models for the U.S.A. have a 3-step control system [HIGH/LOW/OFF]. Outside the U.S.A. and all Manual Transmission Models, the control system has a 2-step control [ON/OFF].

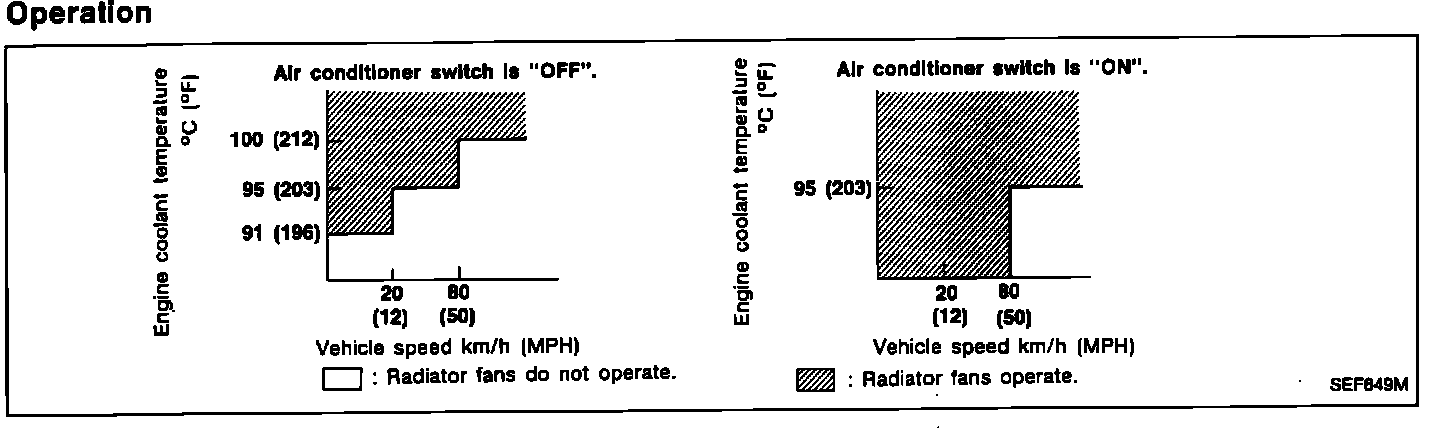

Radiator Fan Operation (M/T)&(A/T)- Non U.S.A.:

OPERATION CHARTS- ALL EXCEPT A/T MODELS FOR U.S.A.

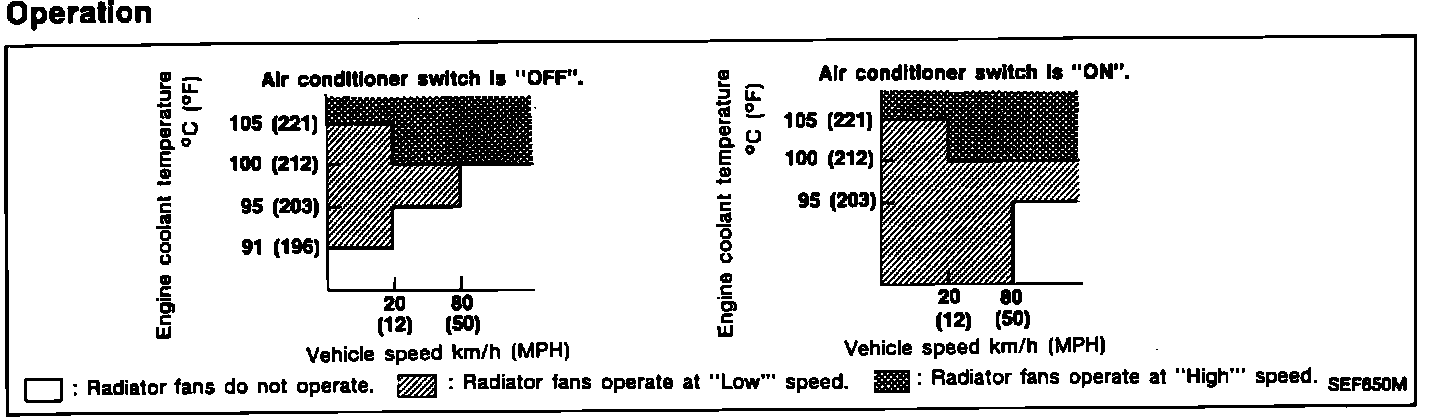

Radiator Fan Operation (A/T U.S.A.):

OPERATION CHARTS- A/T MODELS FOR U.S.A.
