Nissan-Datsun
>>
1994
>>
Sentra (4 Door) L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
M Connectors, Main
>>
M-73 Thru M-76, Instrument Side
M-73 Thru M-76, Instrument Side

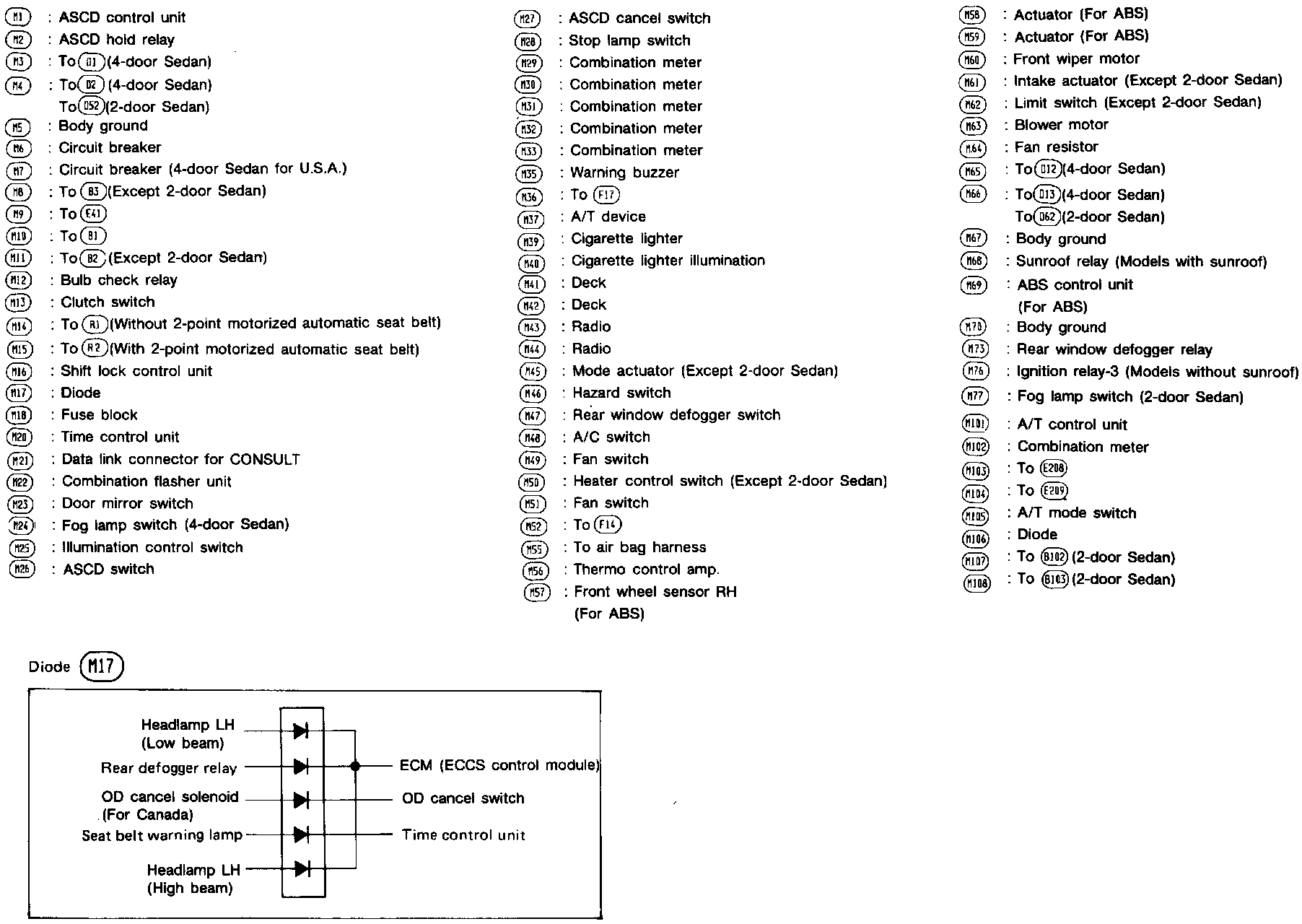

Main Harness - Instrument Side:

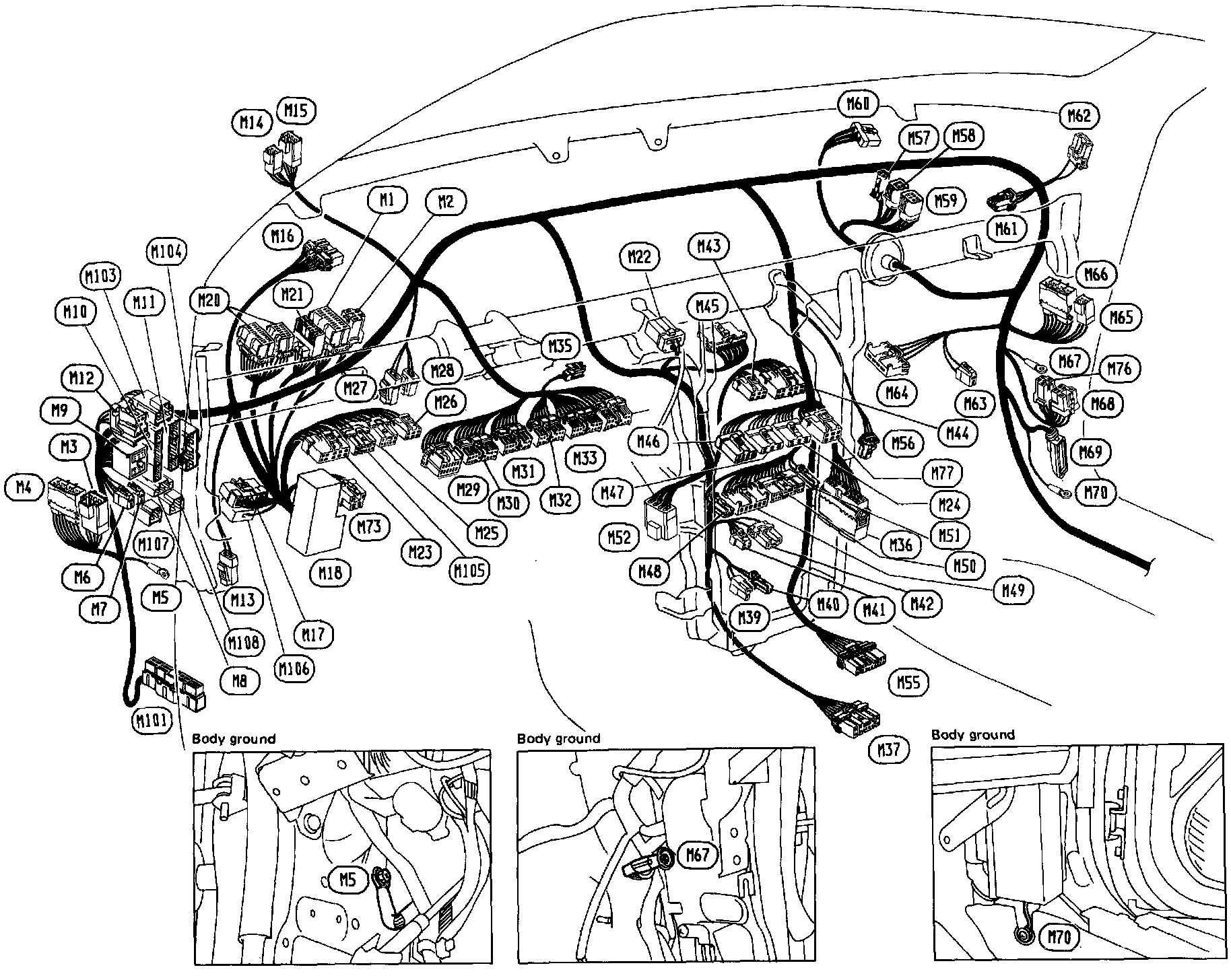

Main Harness:
