Home >> Nissan-Datsun >> 1994 >> Sentra (4 Door) L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection

Blower Motor: Testing and Inspection

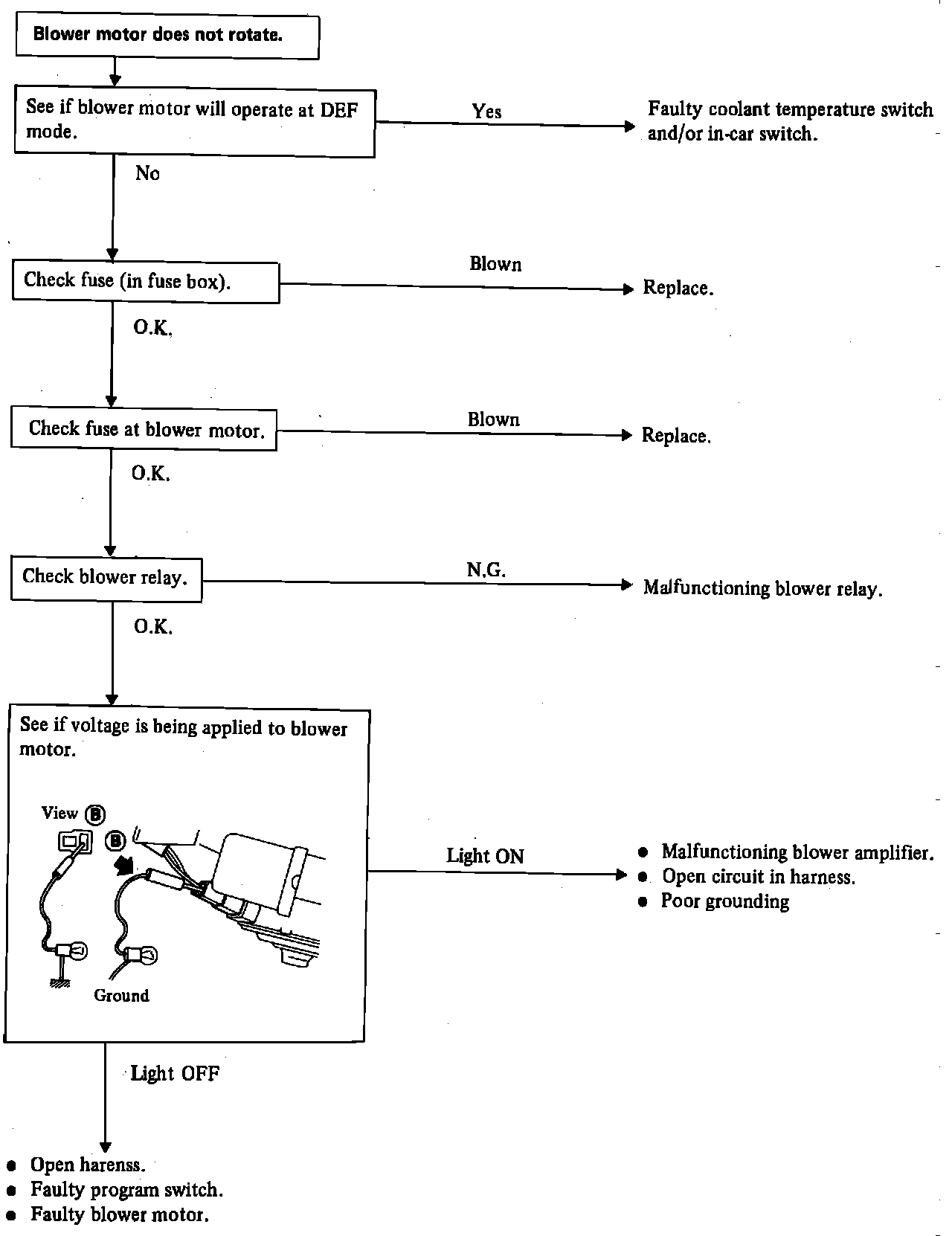

Fig. 18 Blower motor diagnosis:
