Radiator Cooling Fan: Testing and Inspection

Radiator Fan Test:

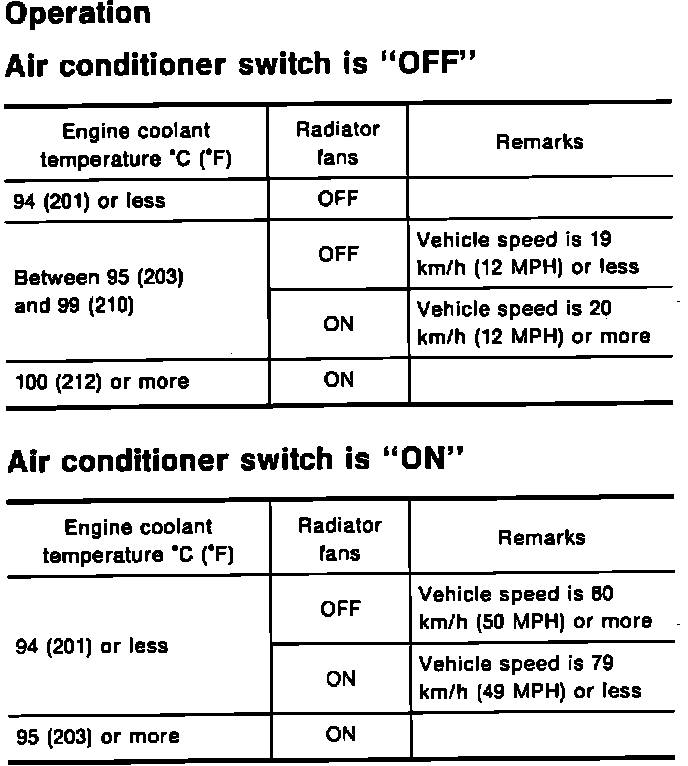

Radiator Fan Control Chart:

ALL M/T and (A/T - NON U.S.A.) MODELS

1. Disconnect the connectors from the radiator fan motor harness.

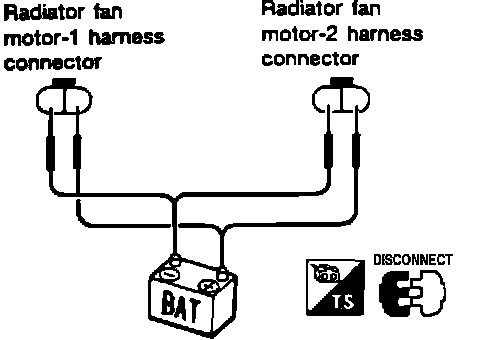

2. Supply 12 volts to the terminals as shown.
3. Verify that the fan motor operates correctly.
If the fan does not operate correctly, replace the fan motor.

Radiator Fan Motor Testing:

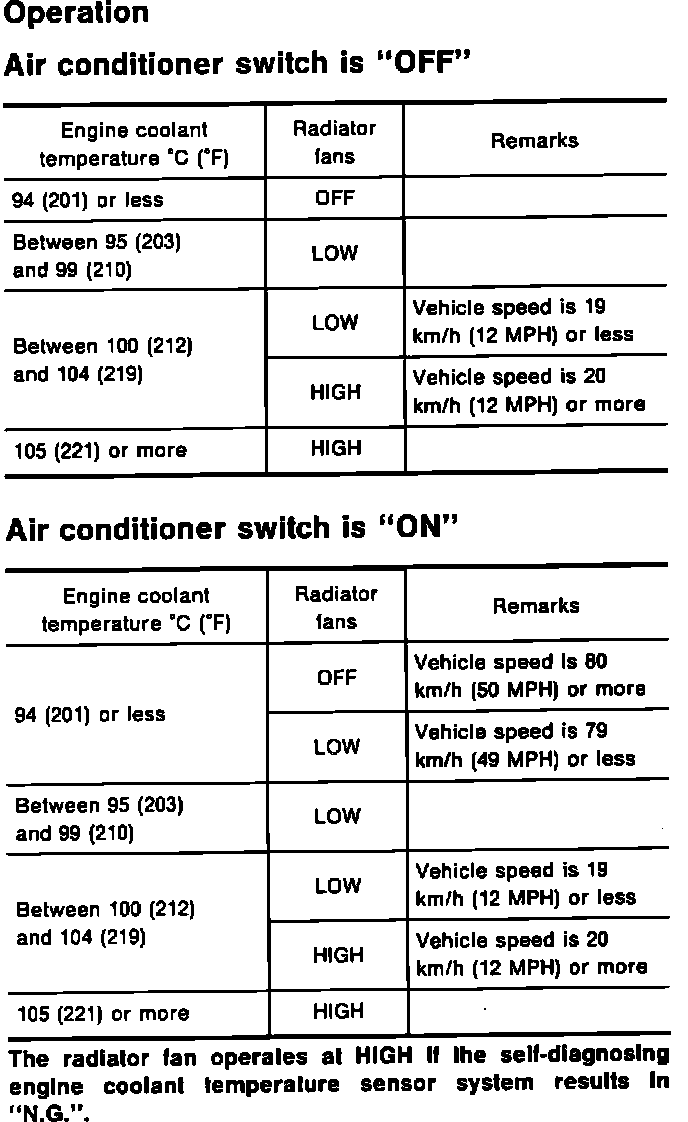

Radiator Fan Control Chart:

A/T MODELS (U.S.A.)
1. Disconnect the connectors from the radiator fan motor harness.

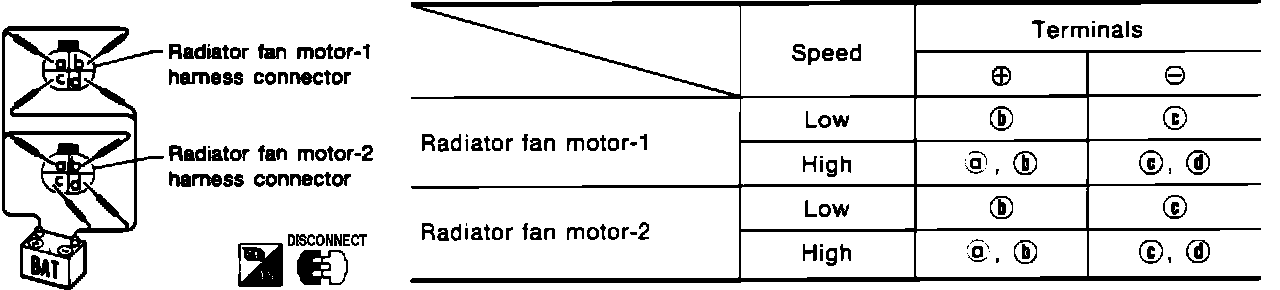

2. Supply 12 volts to the terminals as shown.
3. Verify that the fan motor operates correctly.
If the fan does not operate correctly, replace the fan motor.
