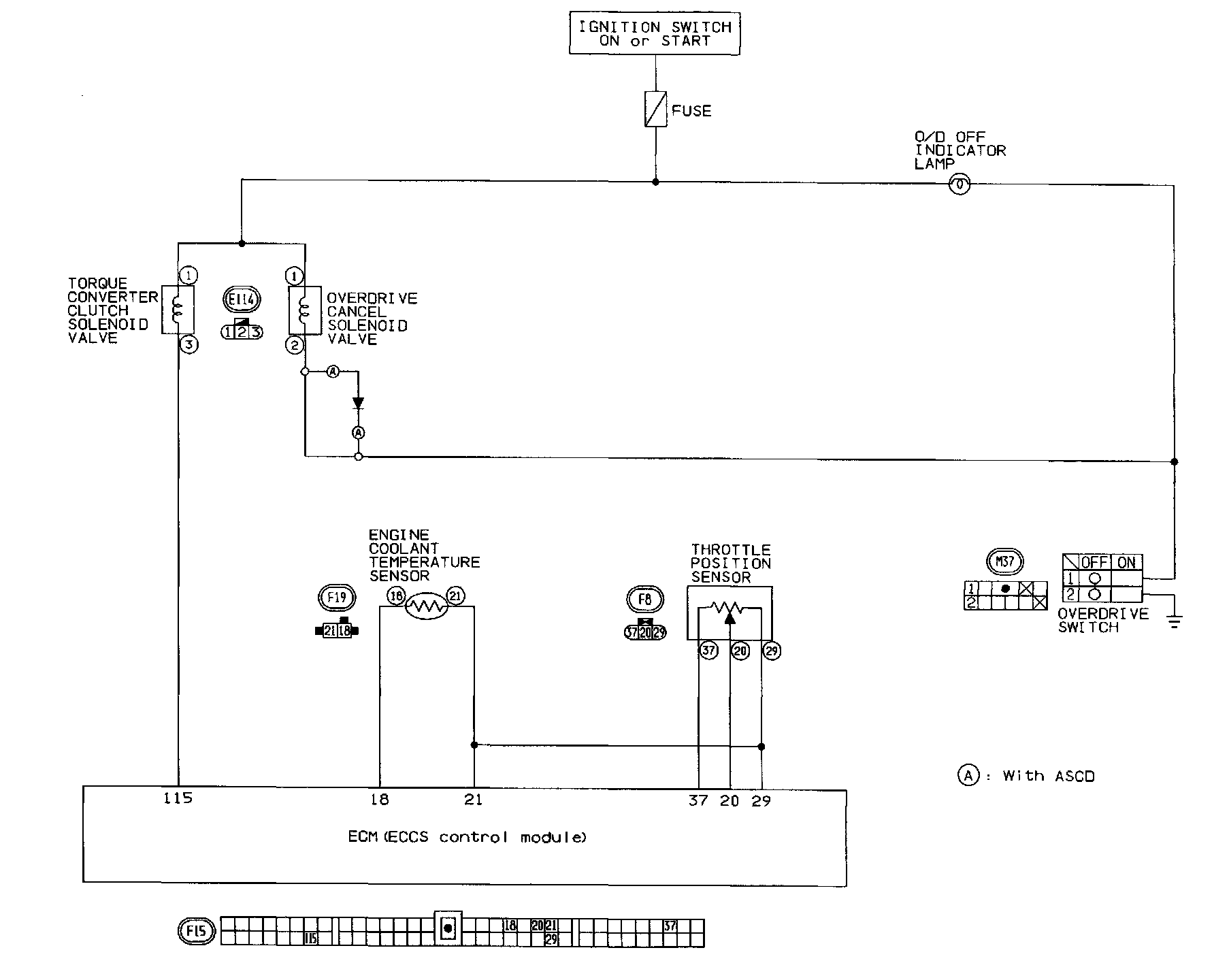

Home >> Nissan-Datsun >> 1994 >> Sentra (4 Door) L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram >> Electrical System (RL4F03A) >> Circuit Diagram
