Assembly

ASSEMBLY

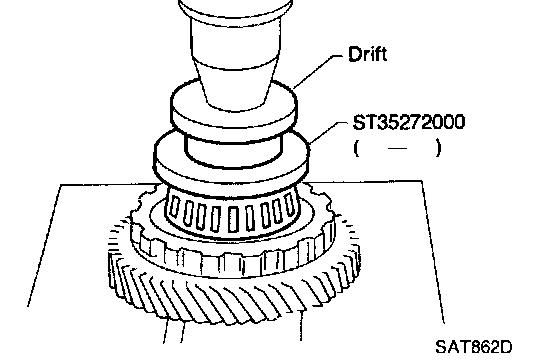

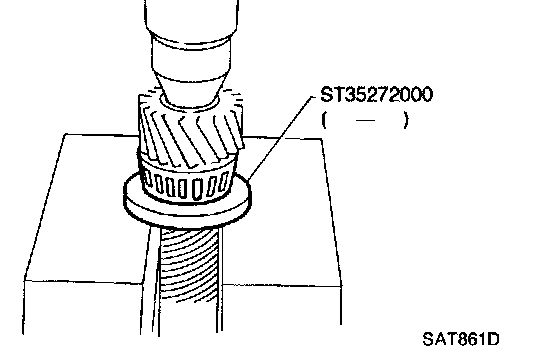

1. Press reduction gear bearing inner race on reduction gear.

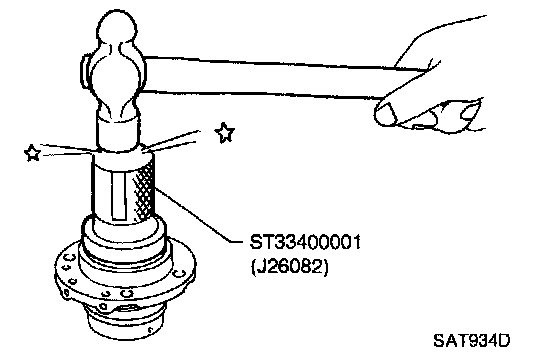

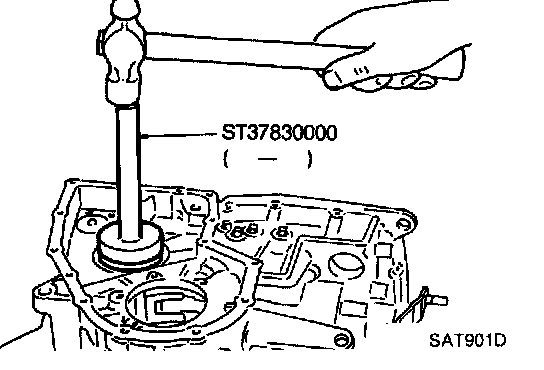

2. Install reduction gear bearing outer race on transmission case.

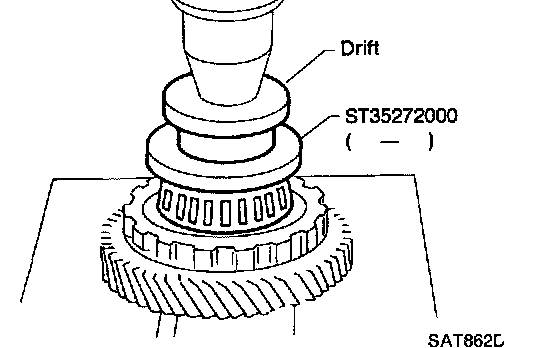

3. Press idler gear bearing inner race on idler gear.





4. Install idler gear bearing outer race on transmission case.





5. Press output gear bearing inner race on output gear.





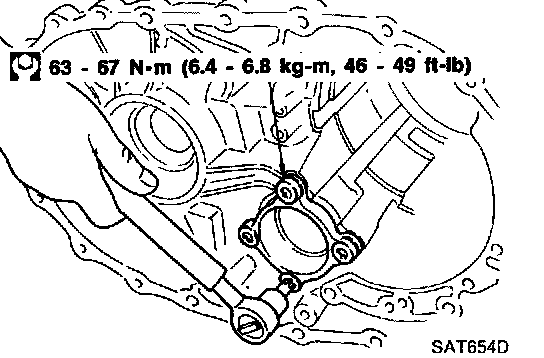

6. Install output gear bearing outer race on bearing retainer.

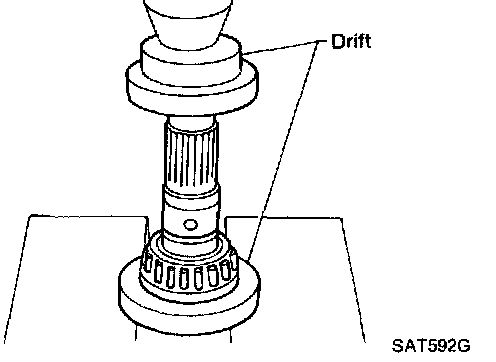

7. Press output shaft bearing inner race on output shaft.

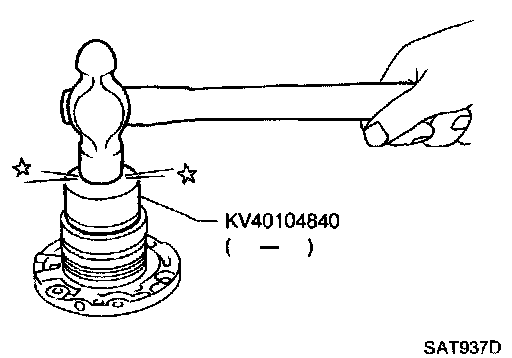

8. Install output shaft bearing outer race on bearing retainer.

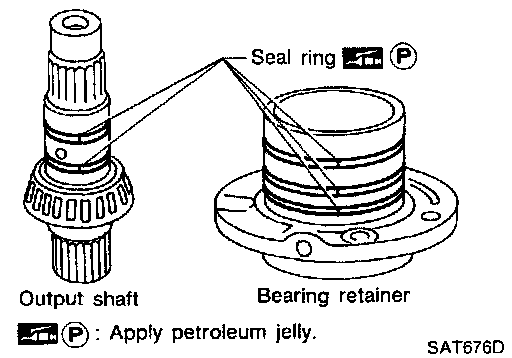

9. Install new seal rings onto output shaft and bearing retainer.
- Apply petroleum jelly to seal rings.

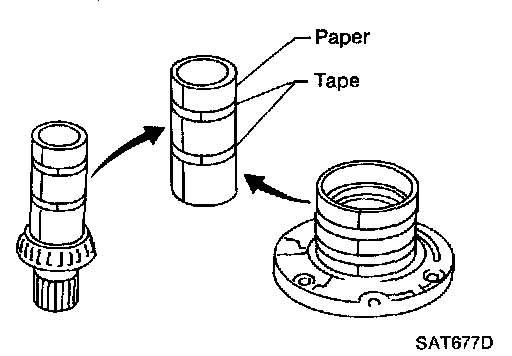

10. Roll paper around seal rings to prevent seal rings from spreading.
