Disassembly

DISASSEMBLY

1. Remove valves at retainer plates.
- Do not use a magnetic "hand".

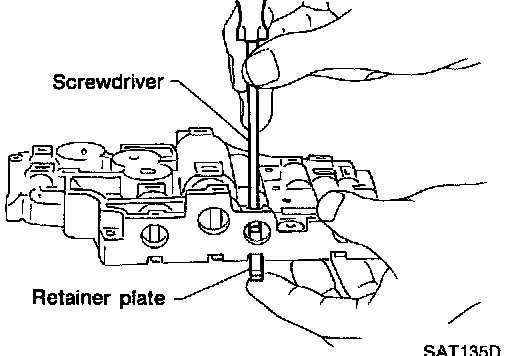

a. Use a screwdriver to pry out retainer plates.

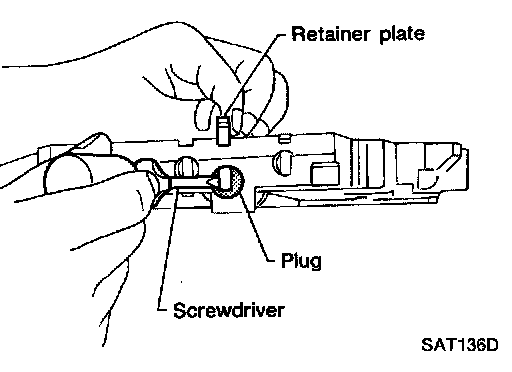

b. Remove retainer plates while holding spring, plugs and sleeves.
- Remove plug slowly to prevent internal parts from jumping out.
c. Place mating surface of valve face down, and remove internal parts.

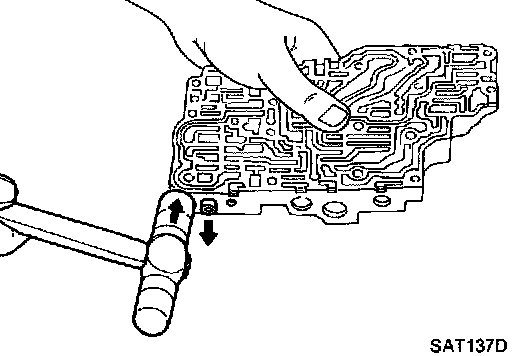

- If a valve is hard to remove, place valve body face down and lightly tap it with a soft hammer.
- Be careful not to drop or damage valves and sleeves.
