Inspection

INSPECTION





Pistons, retainers and piston stem
- Check frictional surfaces for abnormal wear or damage.

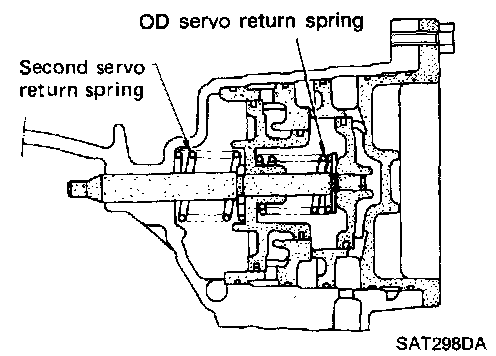

Return springs





- Check for deformation or damage.

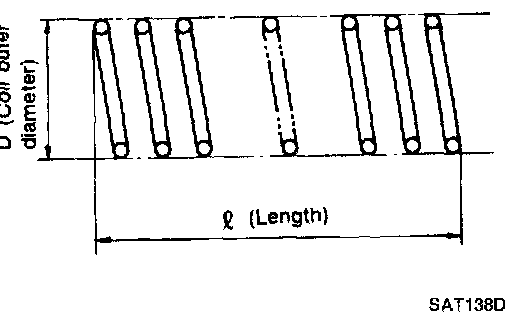

- Measure free length and outer diameter.
