Transfer Oil

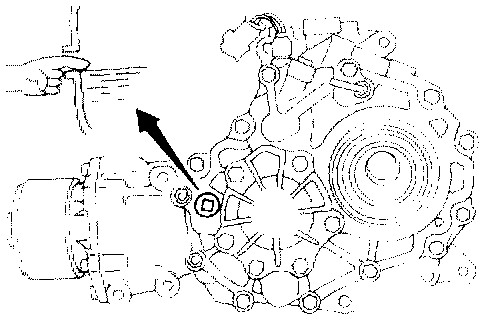

Checking Transfer Oil Level

Note: Never start engine while checking oil level.





1. Check for oil leaks.
2. Check oil level.

Filler plug:
18 - 25 Nm (1.8 - 2.6 kg-m 13 - 19 ft.lb)

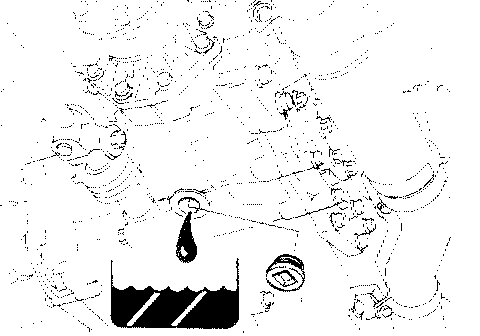

Changing Transfer Oil

Oil Capacity:
1.1liters (1-1/8 US qt, 1 lmp qt)

Drain plug:
20-29 Nm (2.0 - 3.0 kg-m, 14 - 22 ft-lb)
