Fuel Pump: Description and Operation

Fuel Pump:

PURPOSE
Provides pressurized fuel to the injectors.

CONSTRUCTION

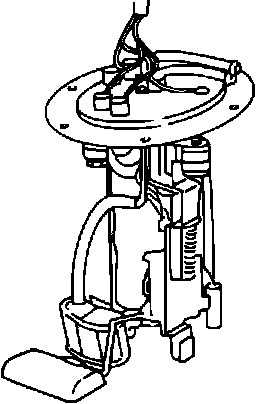

It consists of a motor, a vane roller pump, a fuel damper, and a relief valve to prevent system damage from over pressure. The fuel pump shares its mounting cage with the fuel gauge sending unit in the fuel tank.
