Heating and Air Conditioning: Service and Repair

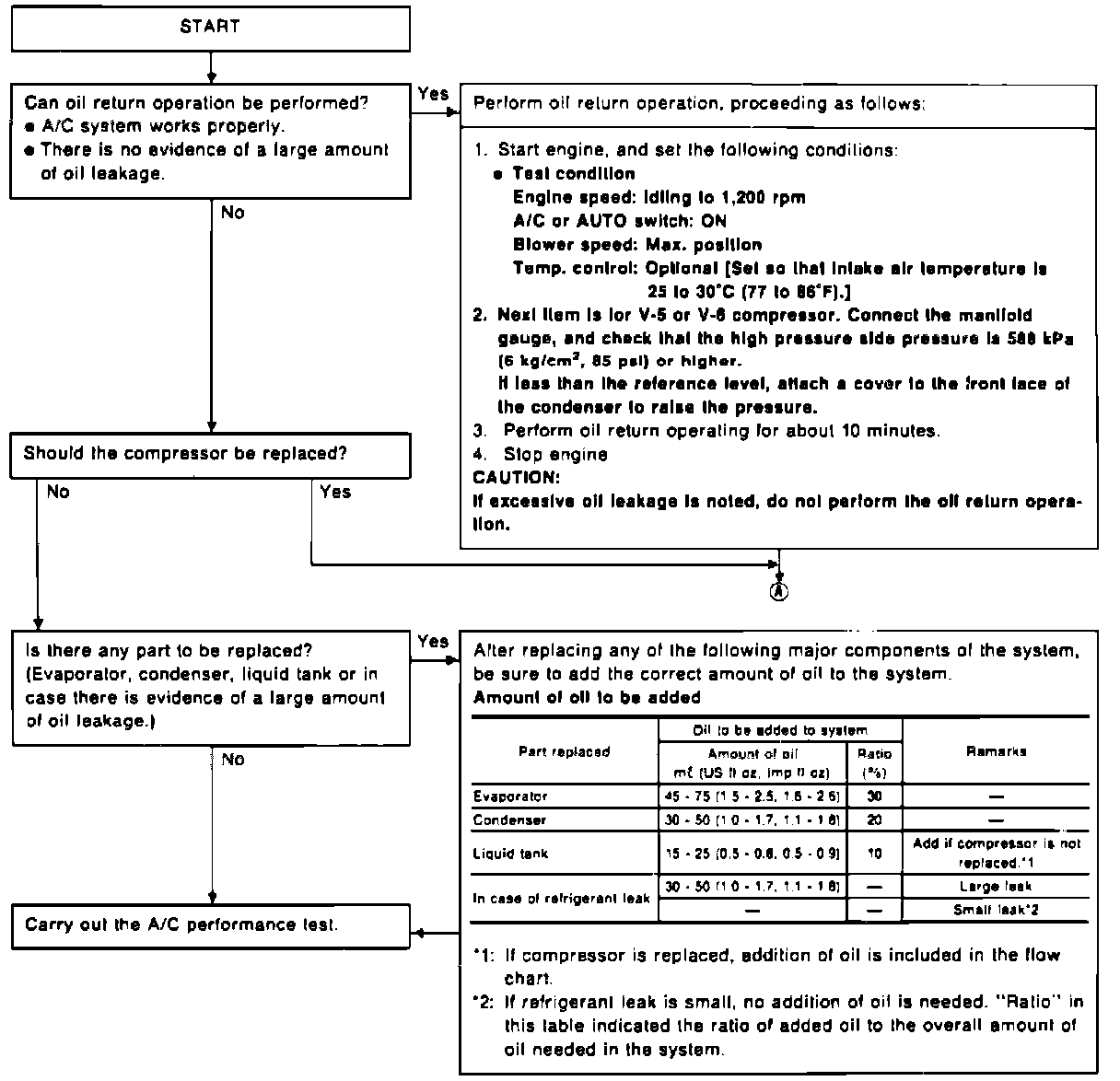

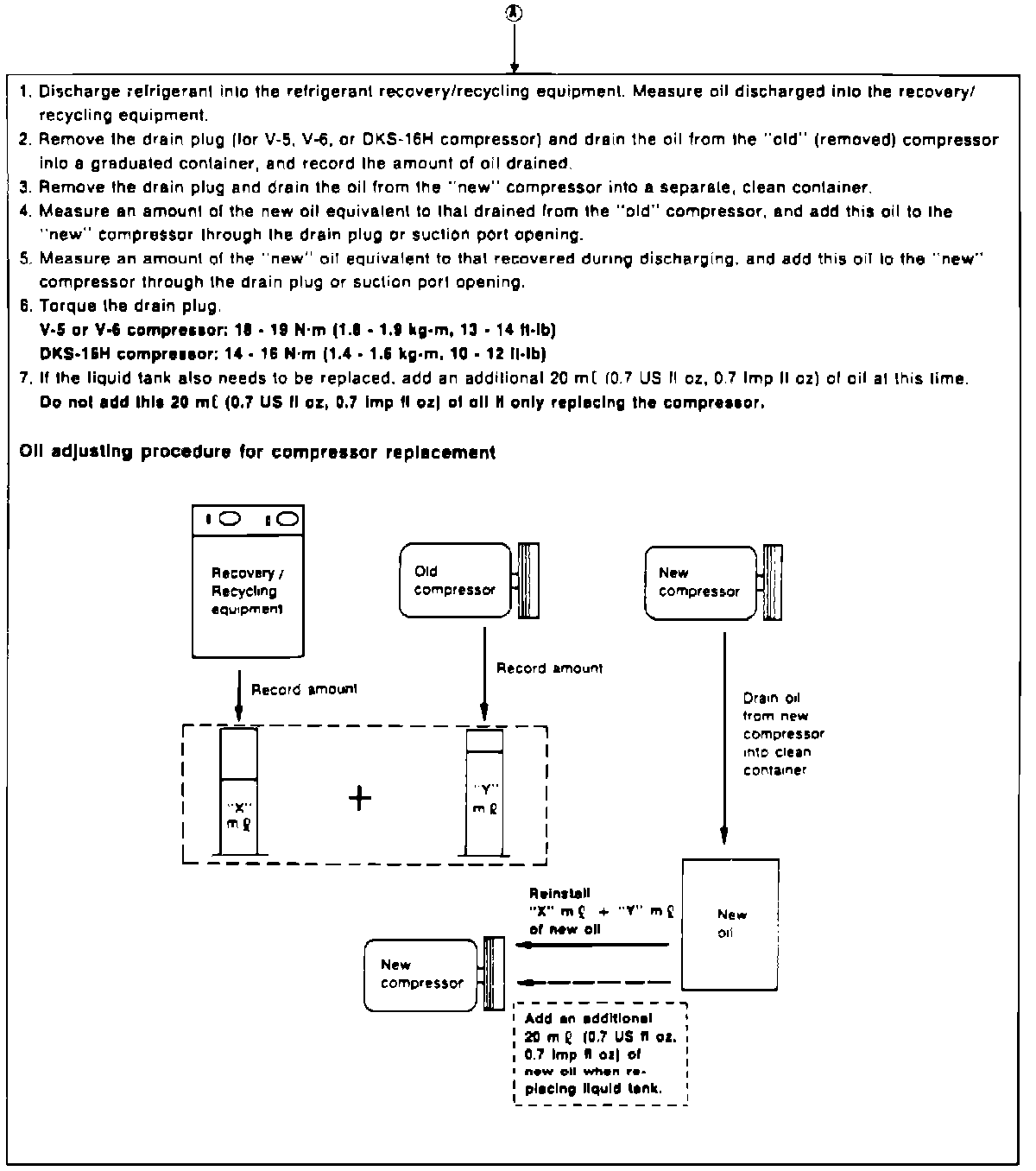

Fig. 27 Refrigerant Oil Replacement Work Flow:

Fig. 27 Refrigerant Oil Replacement Work Flow:

Adjust oil quantity according to the chart in Fig. 27.
