Timing Marks

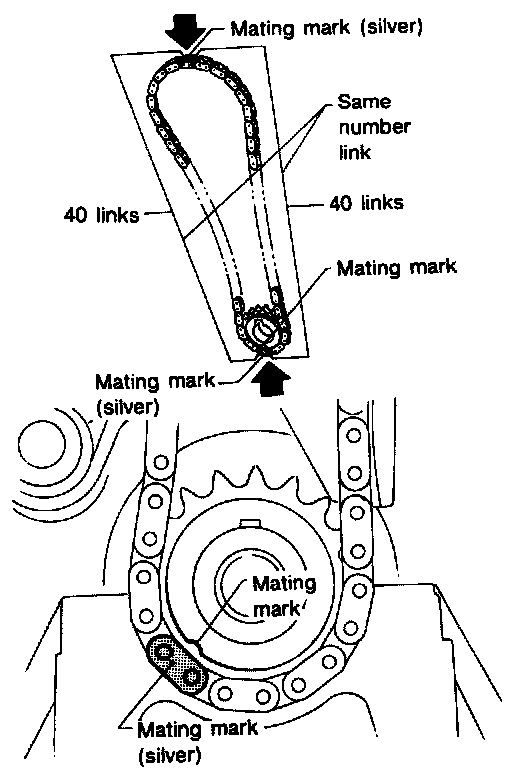

Set timing chain by aligning its mating mark with the one on crankshaft sprocket.

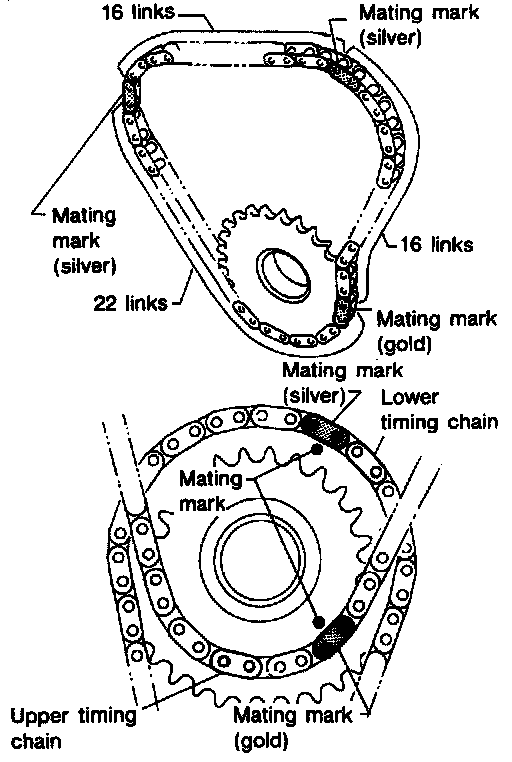

Make sure sprockets mating mark faces engine front. The number of links between the alignment marks (gold) are the same for the left and right sides, so either side can be used during alignment with the sprocket.





Make sure sprocket's mating mark faces engine front.
