Cooling System: Testing and Inspection

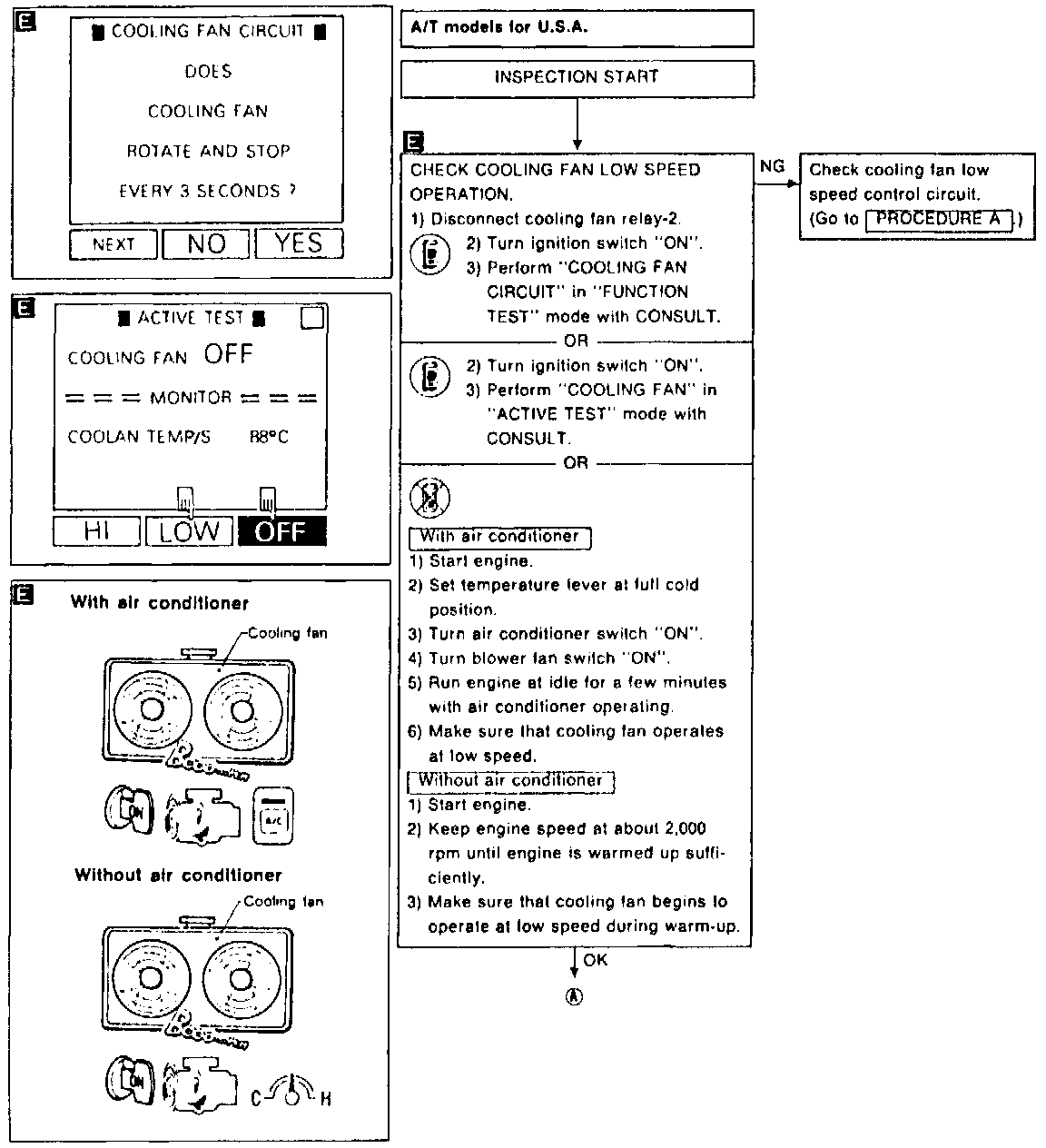

Fig. 5 Cooling Fan Diagnosis (Part 1 Of 6):

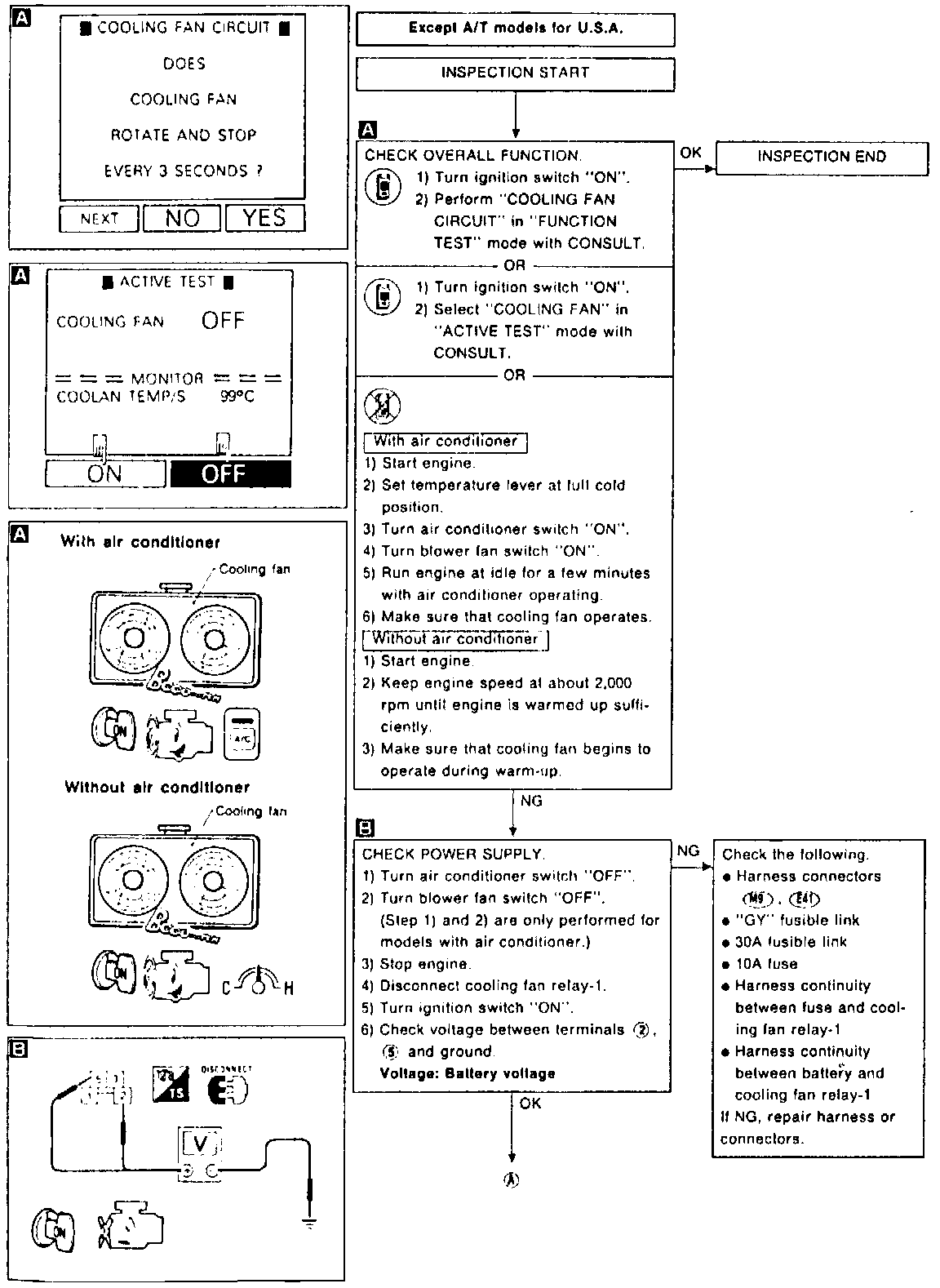

Fig. 5 Cooling Fan Diagnosis (Part 2 Of 6):

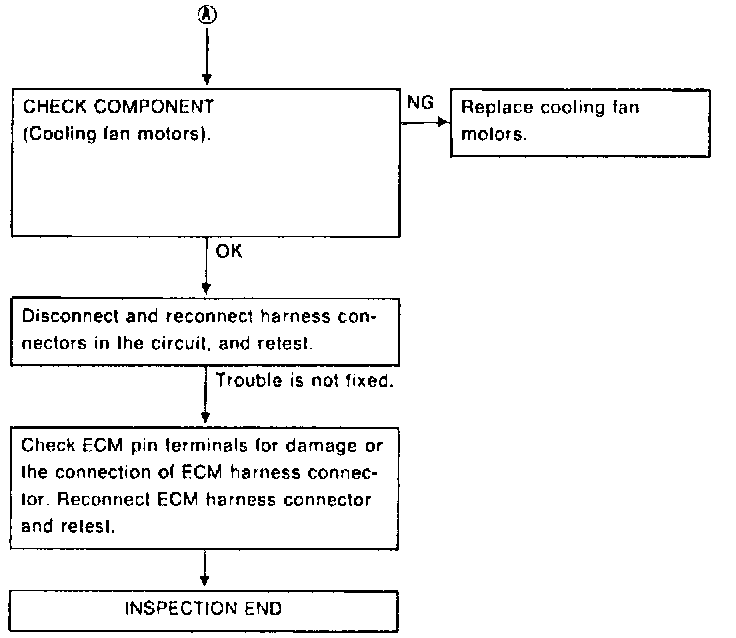

Fig. 5 Cooling Fan Diagnosis (Part 3 Of 6):

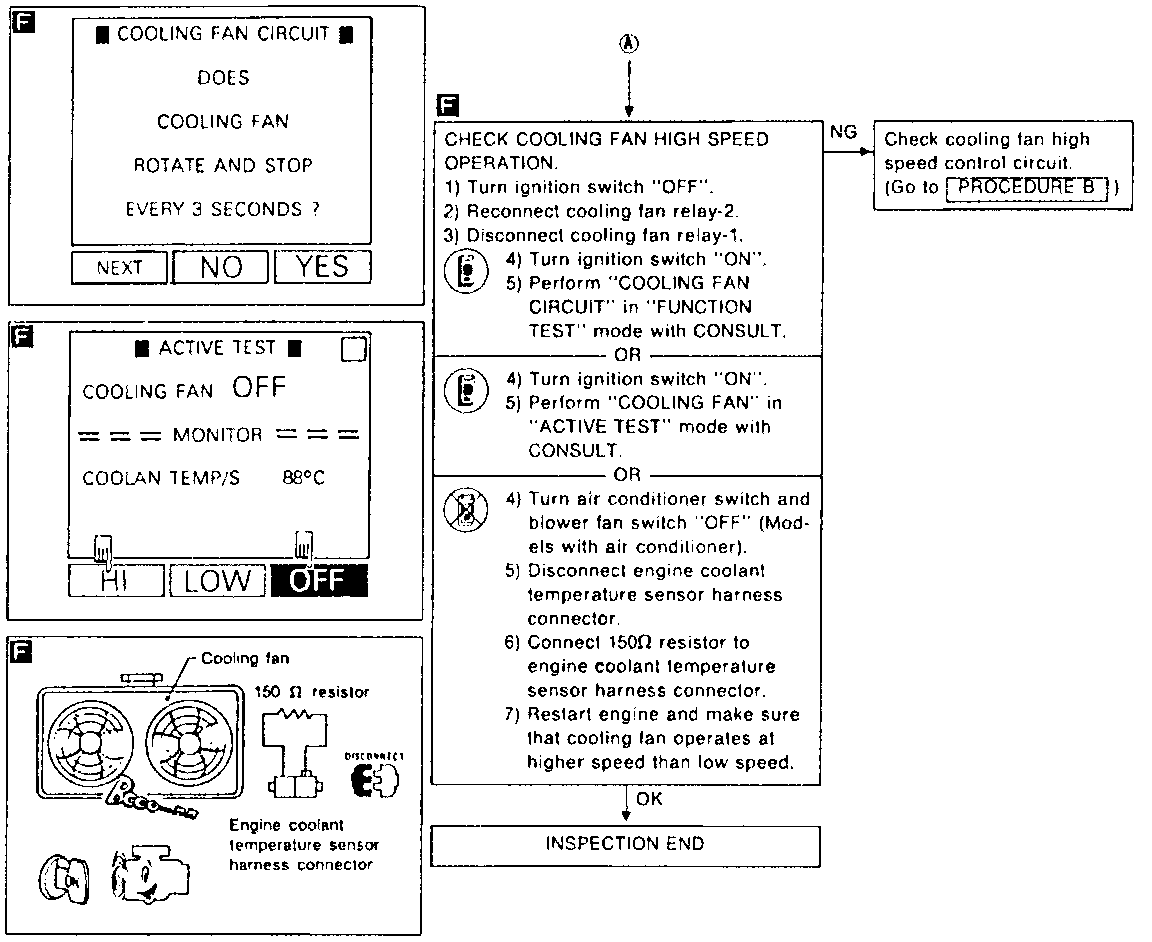

Fig. 5 Cooling Fan Diagnosis (Part 4 Of 6):

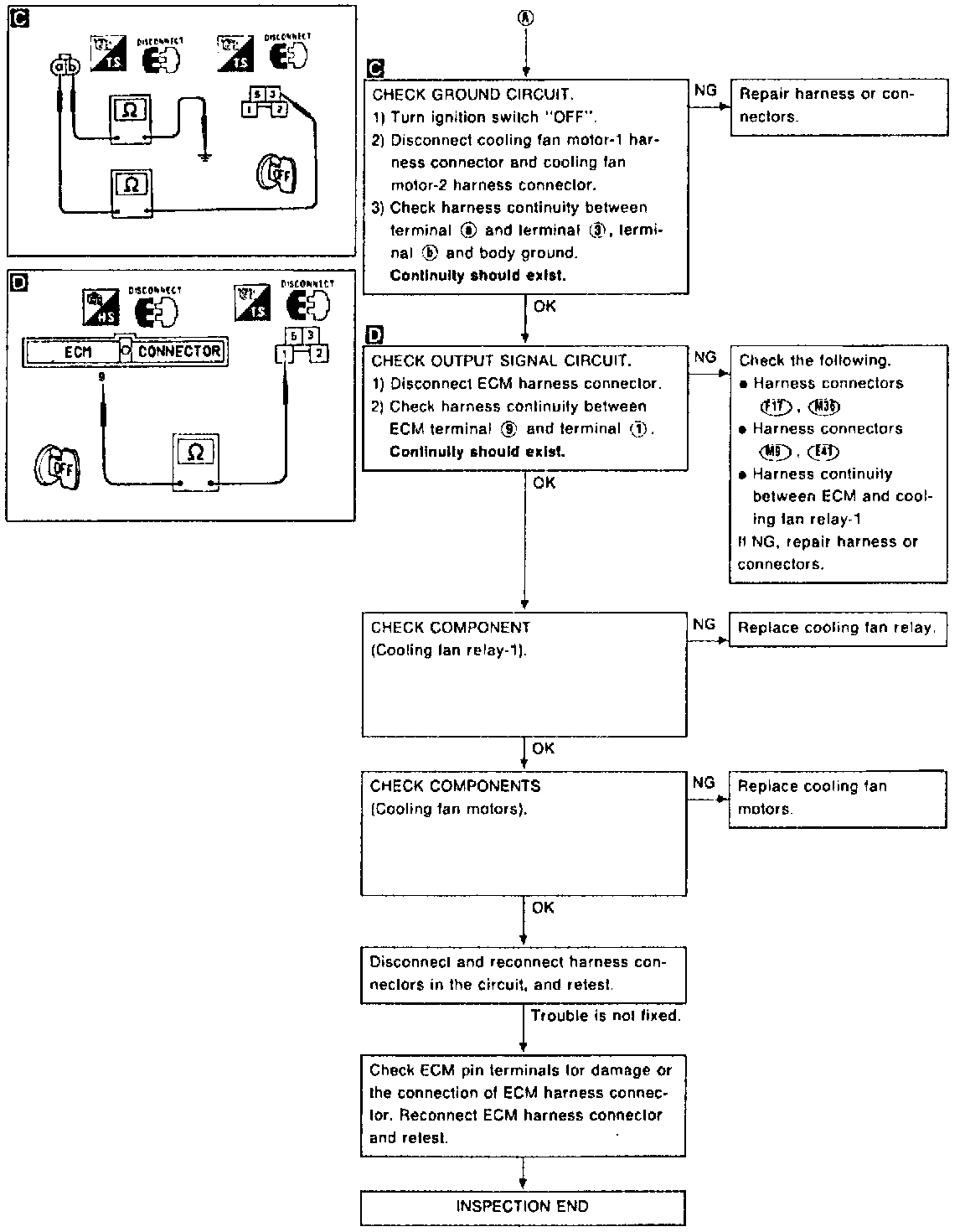

Fig. 5 Cooling Fan Diagnosis (Part 5 Of 6):

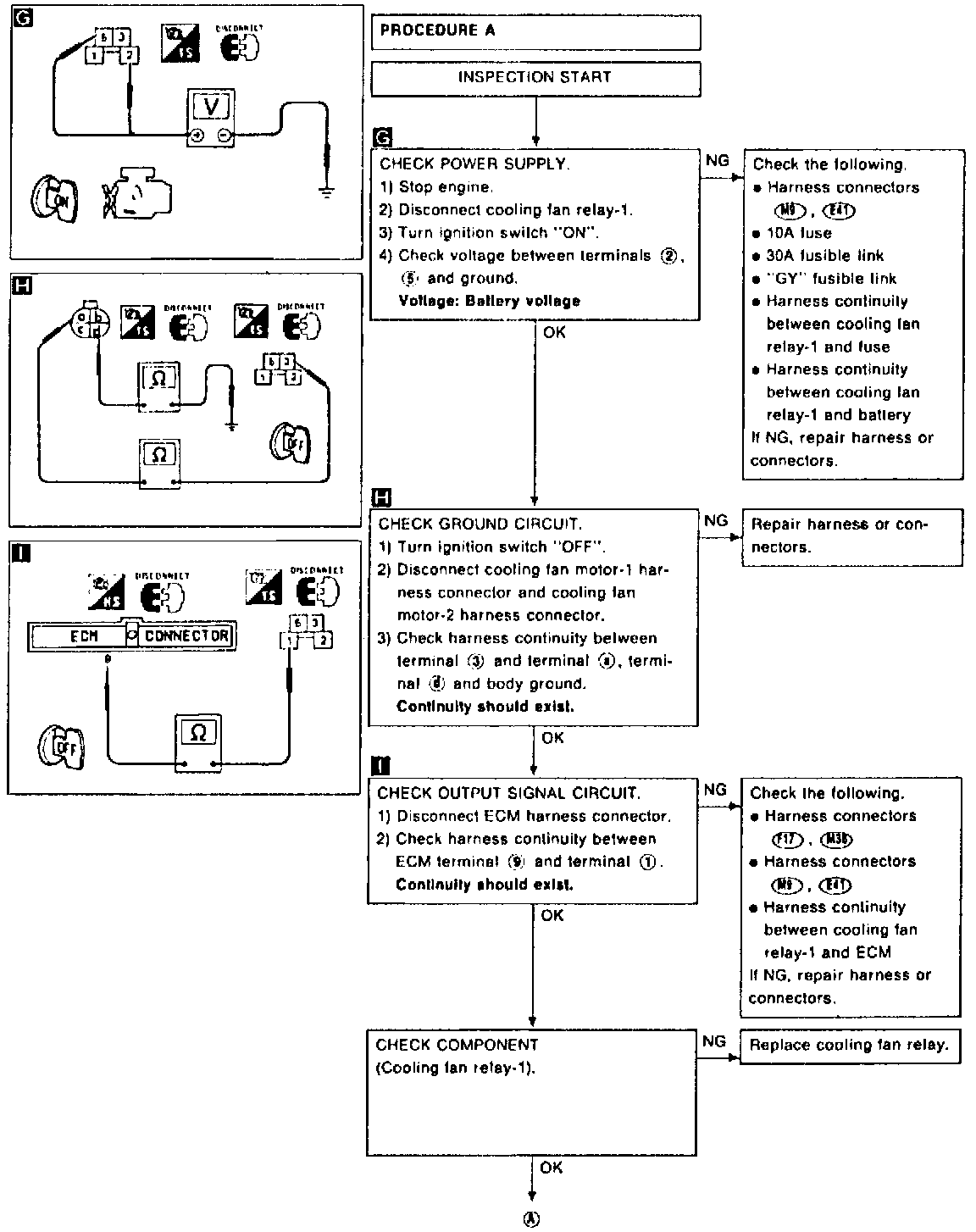

Fig. 5 Cooling Fan Diagnosis (Part 6 Of 6):

Refer to diagnosis charts, Fig. 5 to diagnose the cooling fan system.
