Timer/Control Unit, Accessory Control

Time Control System - 2-door Sedan:

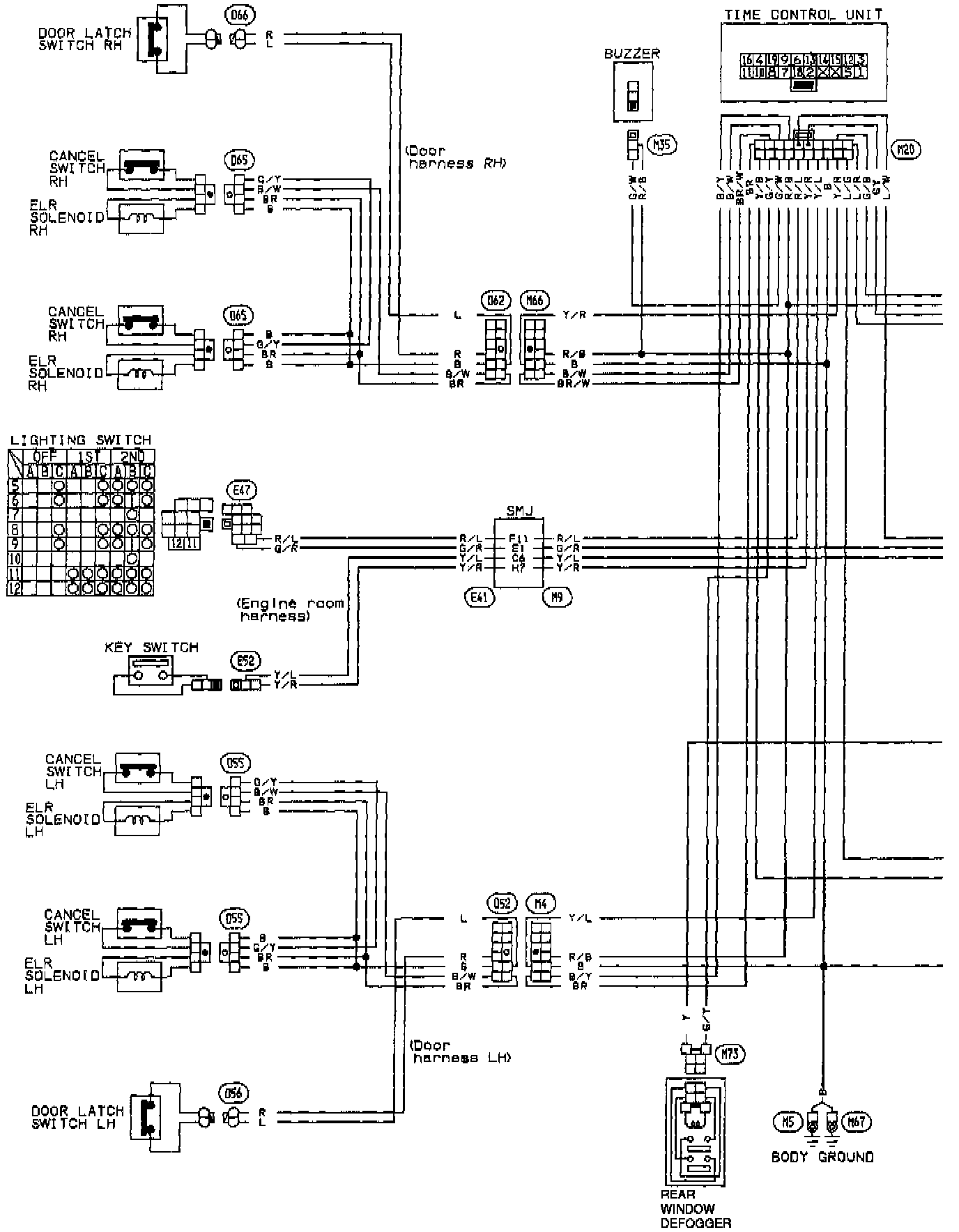

Time Control System - 2-door Sedan:
