DTC 32

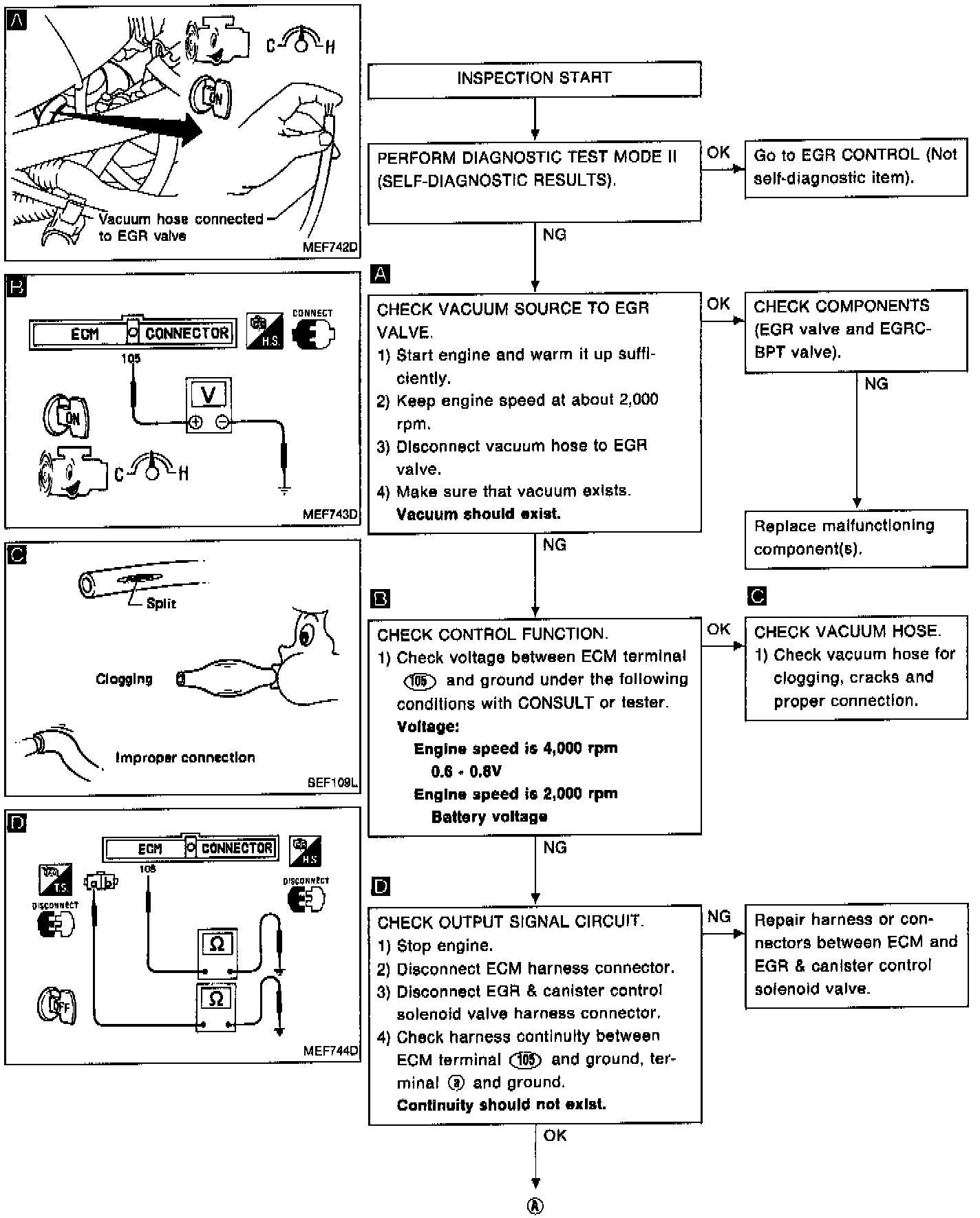

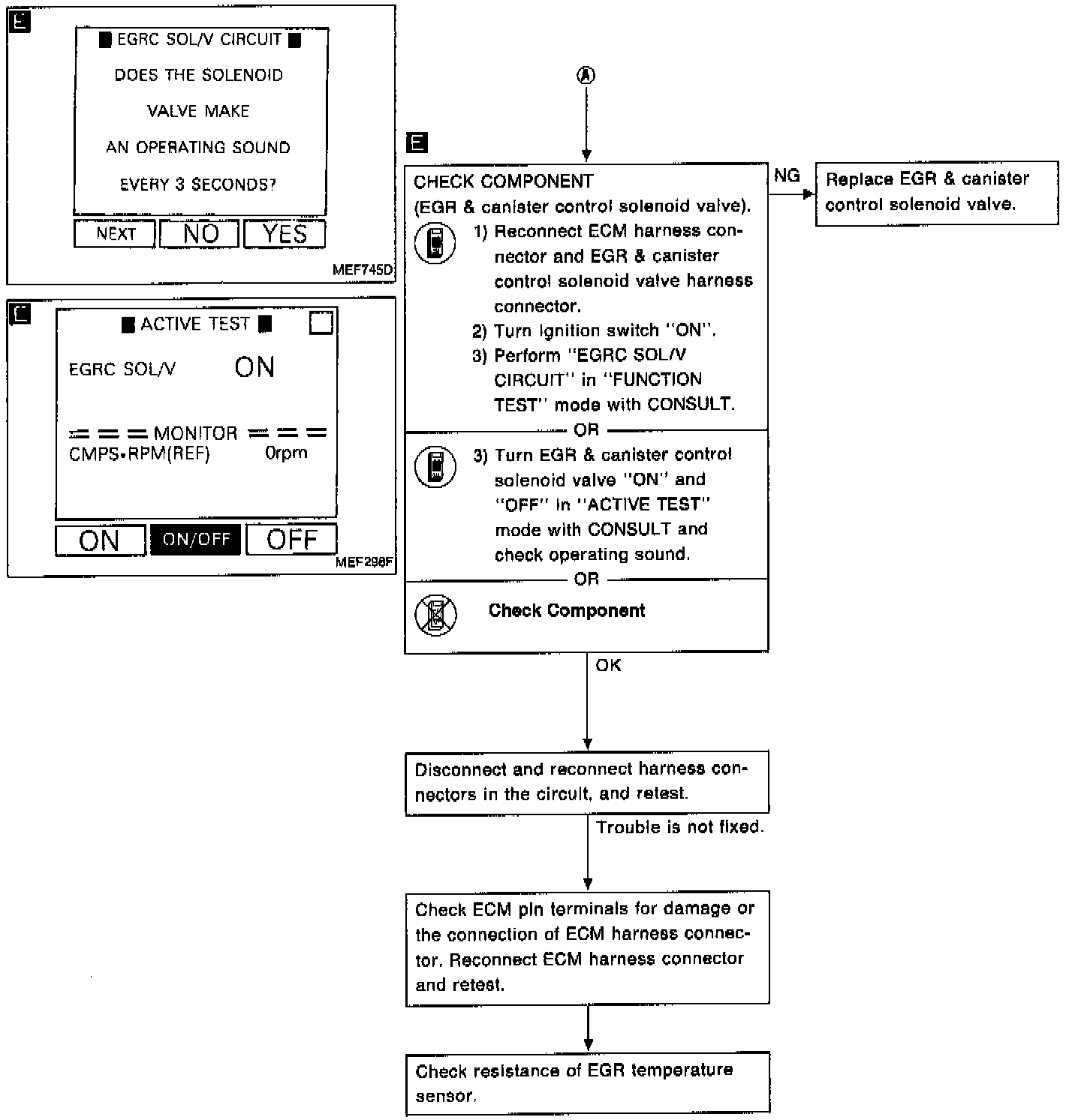

DTC 32 EGR Function Diagnostic Chart:




DTC 32 EGR Function Diagnostic Chart:





DIAGNOSTIC CHART

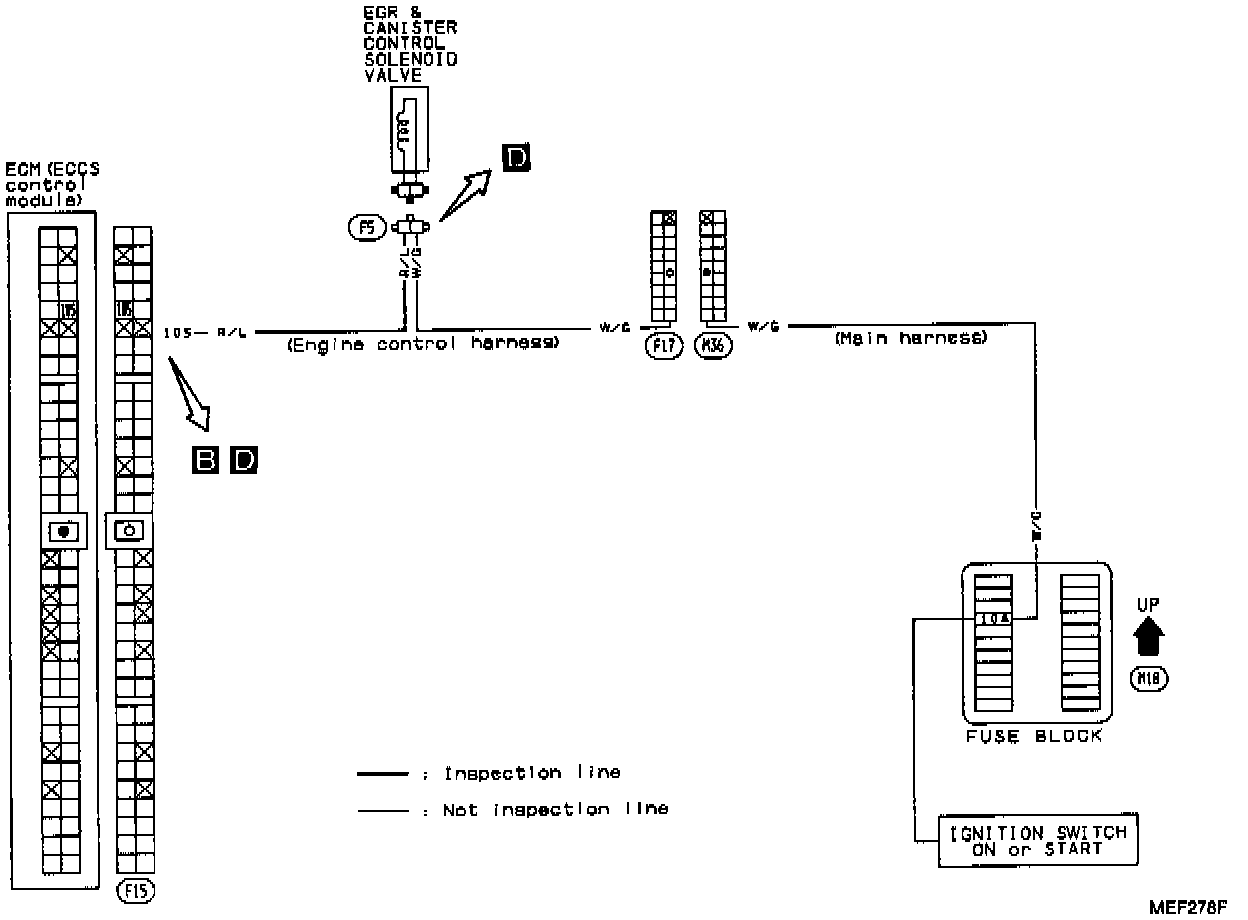

EGR Control/Purge Control Solenoid Circuit:





CIRCUIT DIAGRAM

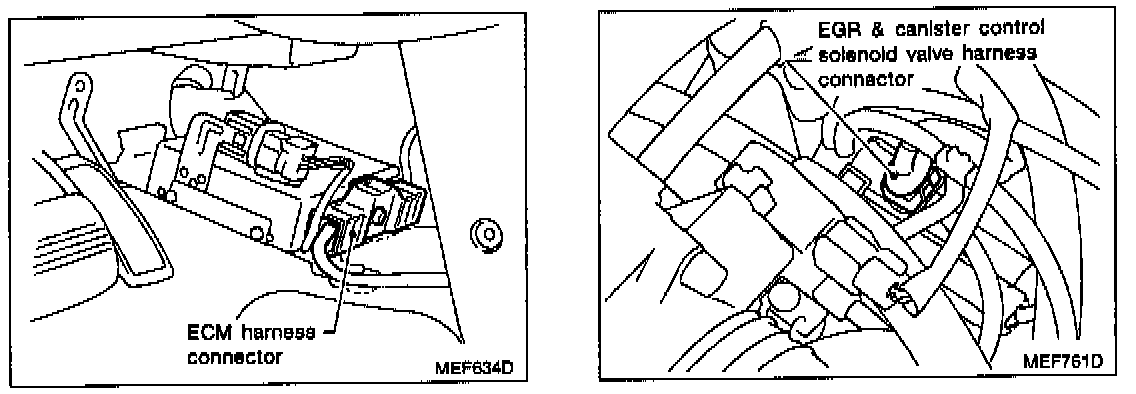

Harness Layout:





HARNESS LAYOUT

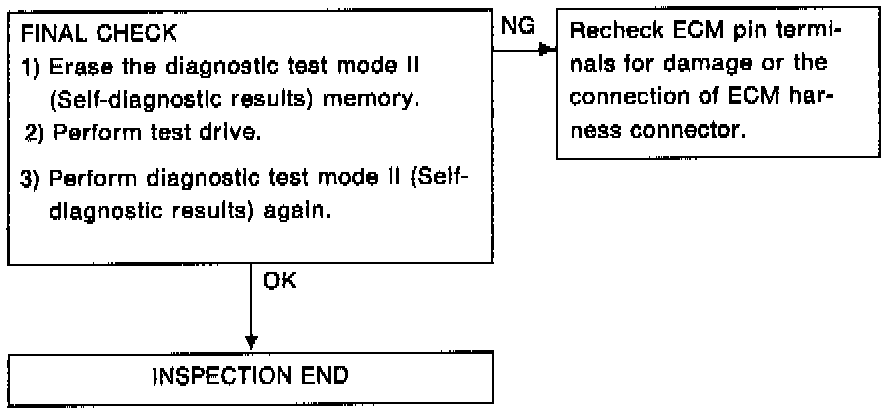

Final Check:





FINAL CHECK
