Sentra (2 Door) L4-1597cc 1.6L DOHC MFI (GA16DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 14
DTC 14

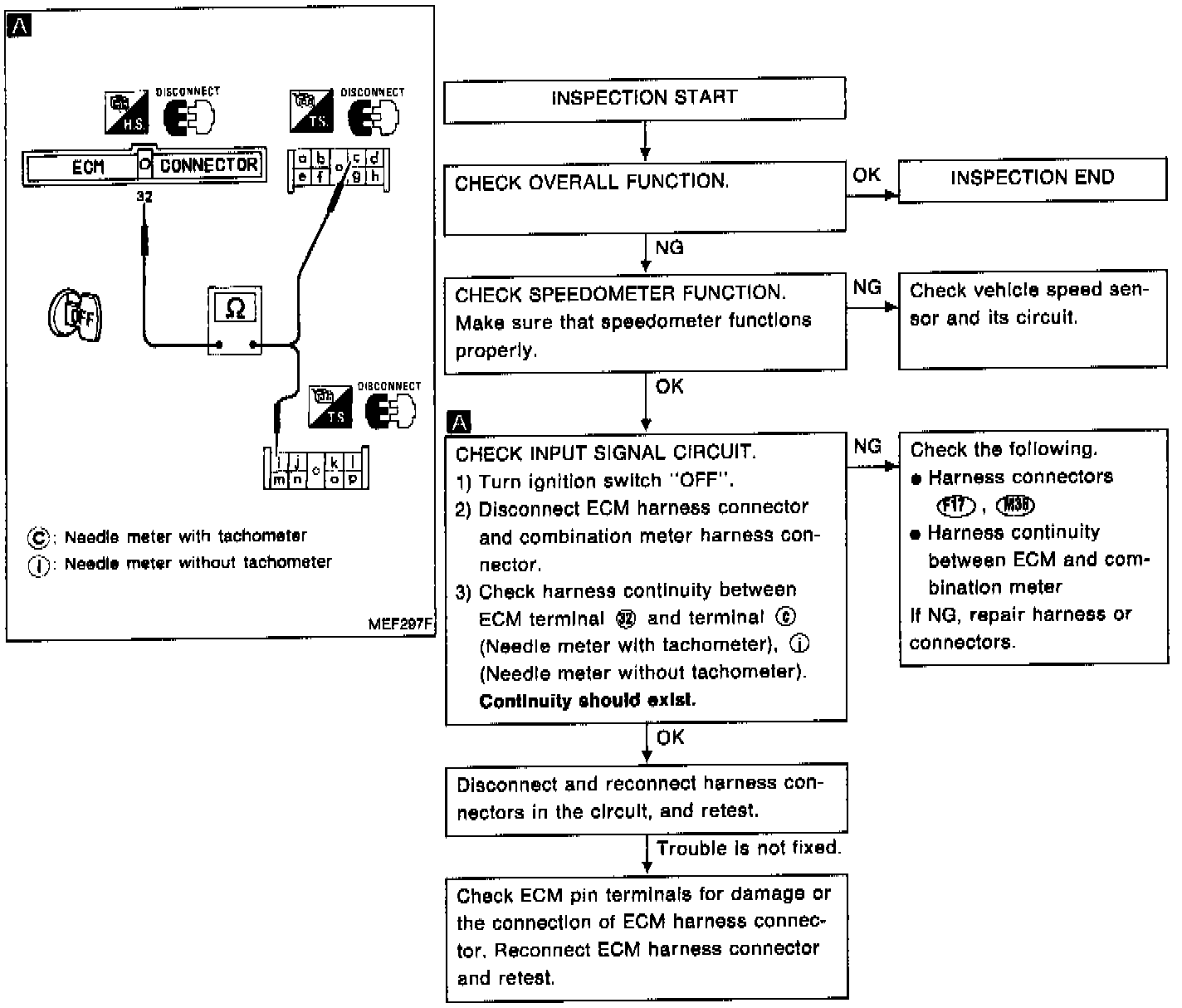

DTC 14 Vehicle Speed Sensor Diagnostic Chart:
DIAGNOSTIC CHART
Vehicle Speed Sensor Circuit:
CIRCUIT DIAGRAM

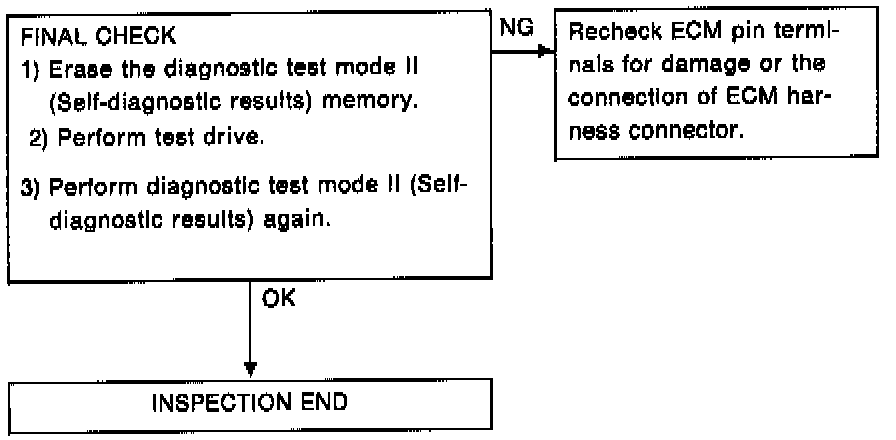

Final Check:
FINAL CHECK
