Wiper Motor: Service and Repair

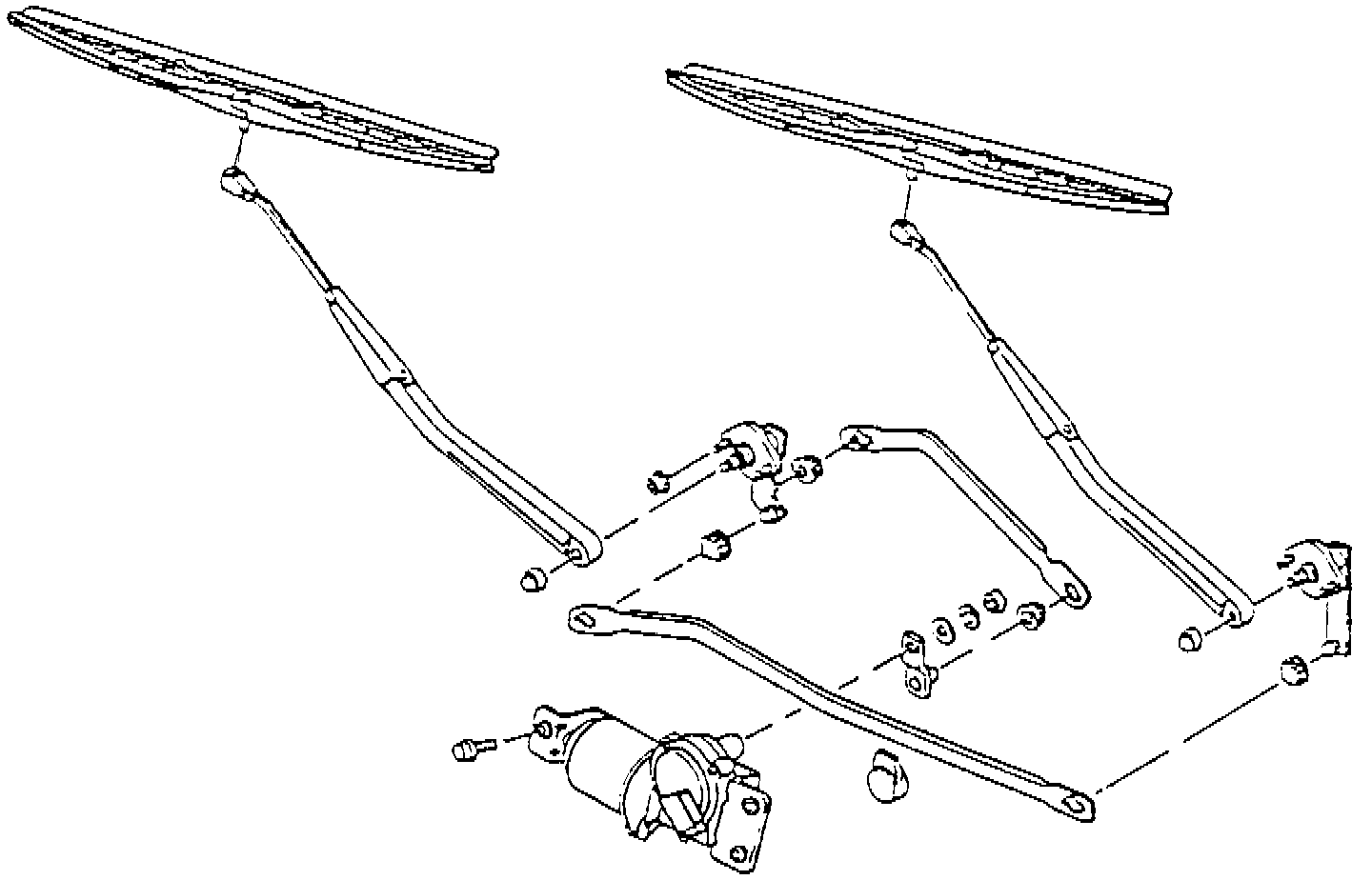

Fig. 7 Exploded View Of Windhsield Wiper System:

1. Disconnect battery ground cable.
2. Remove wiper arms, Fig. 7.
3. Remove cowl top grille.
4. Remove stop ring connecting wiper motor arm to connecting rod, then disconnect wiper motor electrical connector from beneath instrument panel.
5. Remove wiper motor retaining bolts and the wiper motor.
6. Remove flange nuts retaining pivot to cowl top, then remove wiper motor linkage.
7. Reverse procedure to install.
