Manual Linkage With Floor Shift

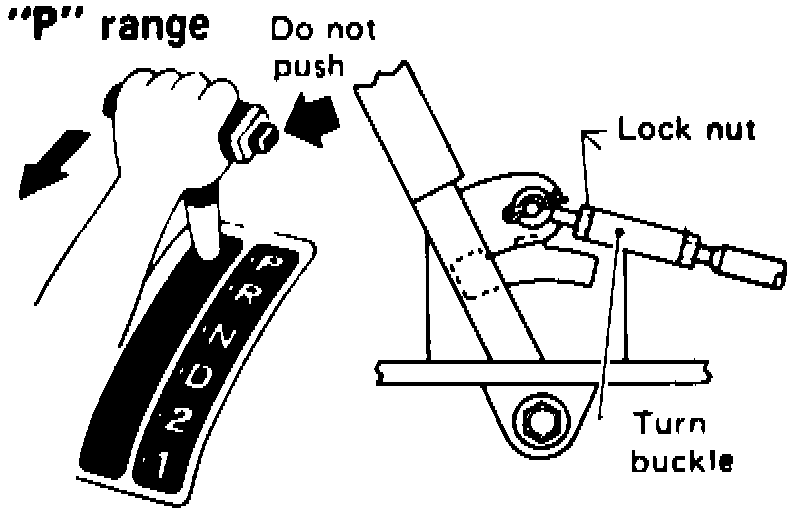

Fig. 6 Manual Linkage Adjustment:

1. Place selector lever in Park range.
2. Loosen locknuts, Fig. 6
3. Tighten turnbuckle until it aligns with inner cable, pulling selector lever toward reverse range side without pushing button.
4. Back off turnbuckle one turn and torque locknuts to 34 ft.lbs.
5. Move selector lever from Park range to 1 range. Ensure lever moves smoothly.
