Interior - Squeak and Rattle Repair

Classification:
BT96-014

Reference:
NTB96-048

Date:
May 1, 1996

1994-1996 TRUCK SQUEAK AND RATTLE REPAIR

APPLIED VEHICLE:
1994-1996 Trucks (D21)

SERVICE INFORMATION

If squeak or rattle noises occur inside the cab or bed liner edges of any truck, use the following information to assist in the diagnosis and repair.

SERVICE PROCEDURE

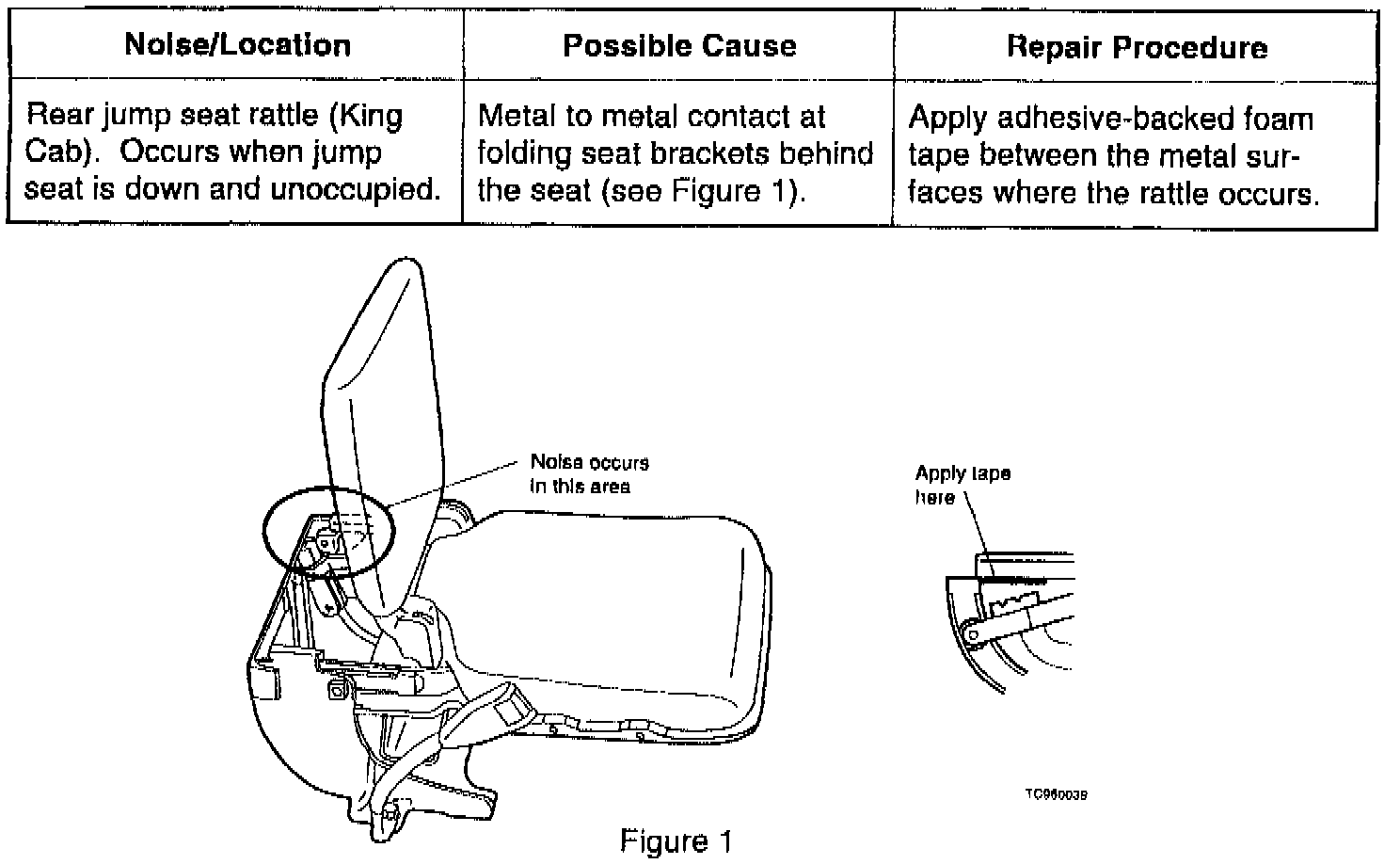

A) Rear Jump Seat

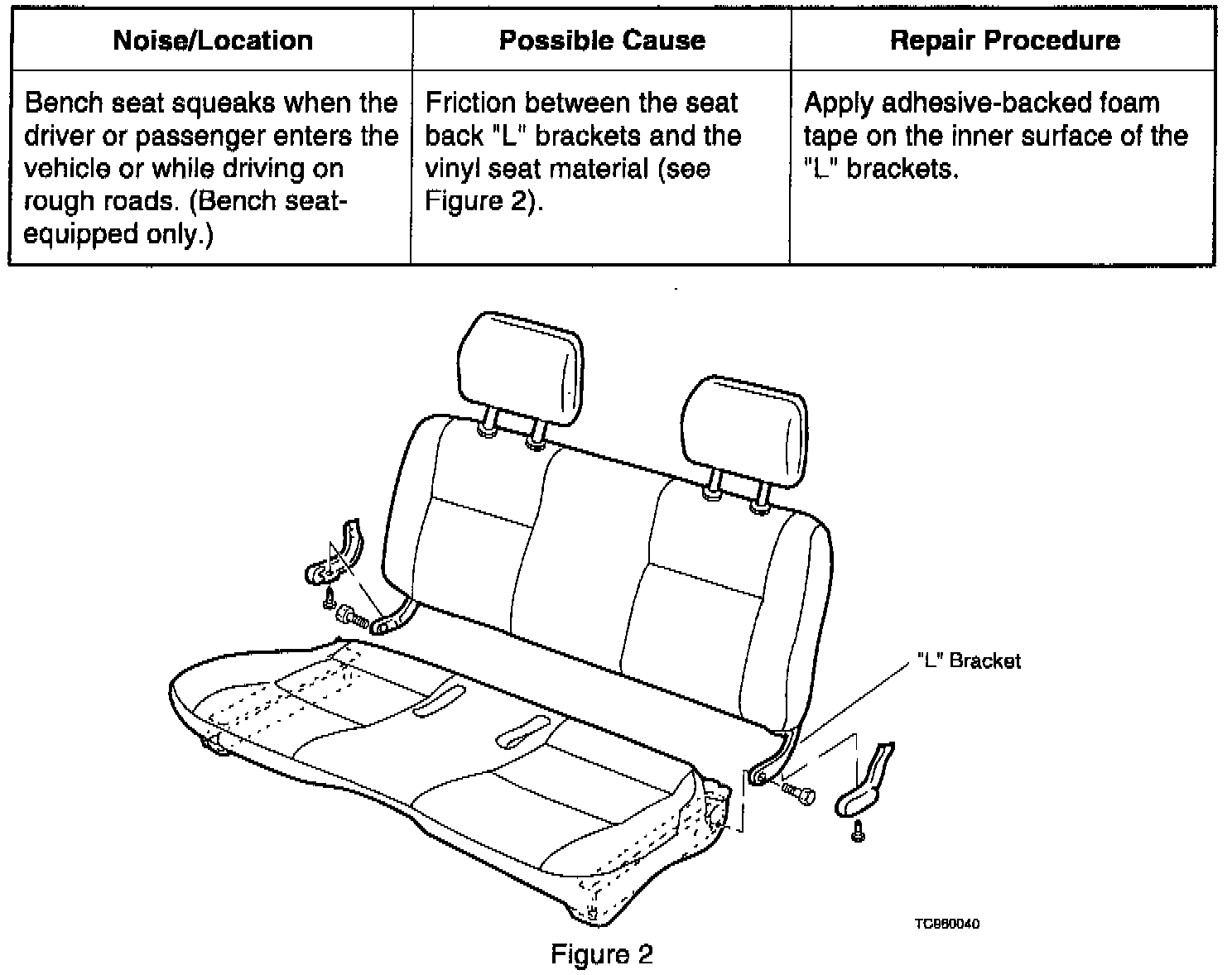

B) Bench Seat

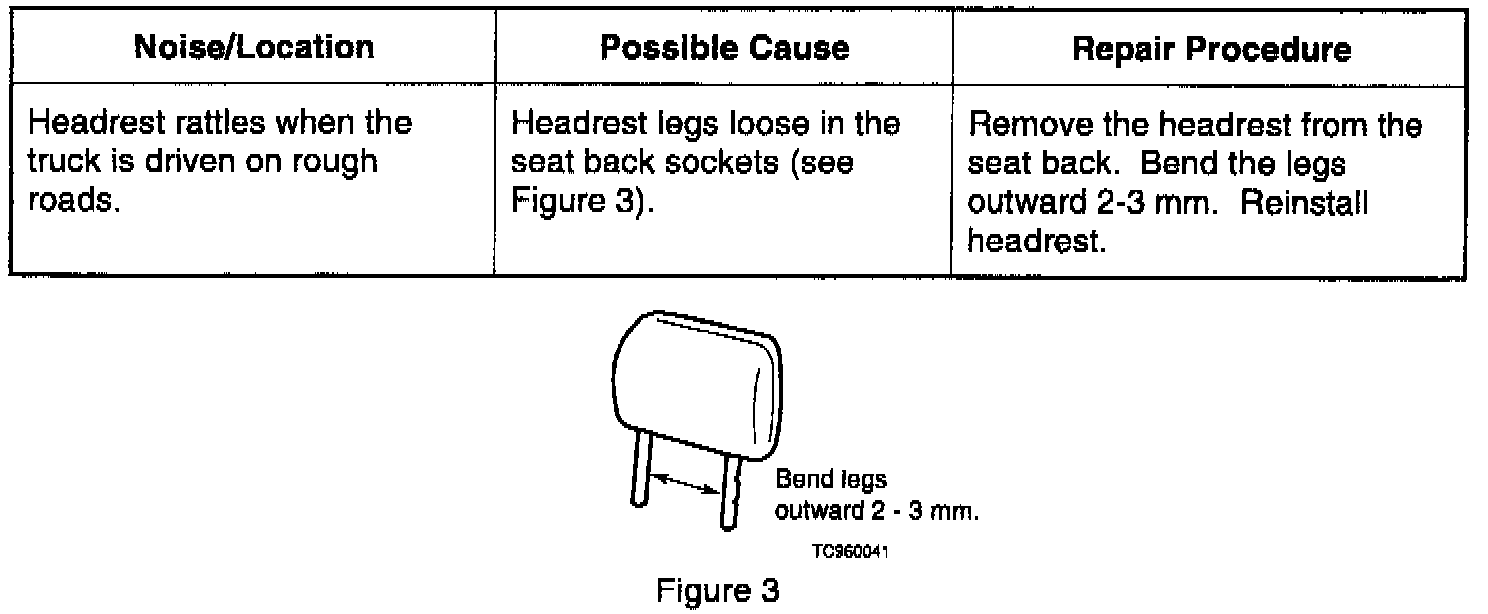

C) Headrest

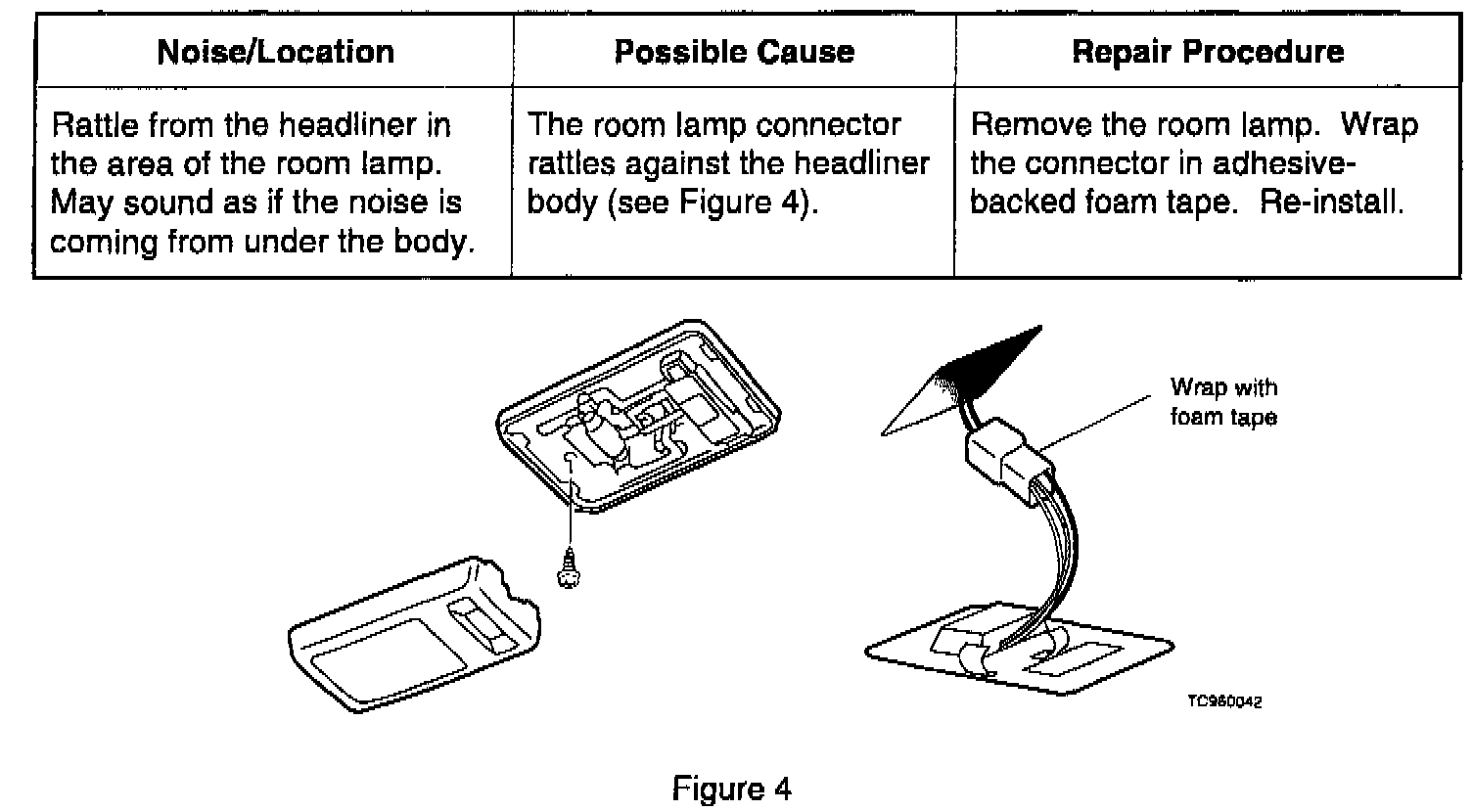

D) Headliner





CLAIMS INFORMATION

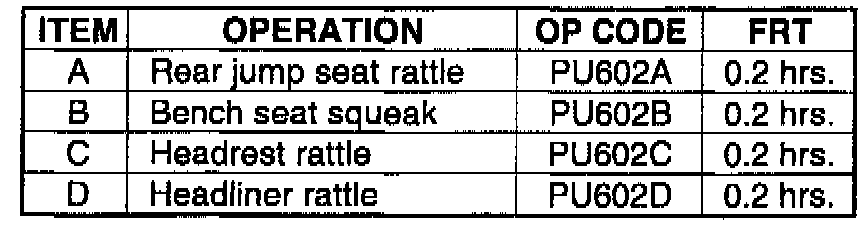

Submit a Campaign Line claim using the following coding:

Campaign I.D.: PU602
Program No.: 01

NOTE:
This coding is for non-component replacement squeak/raffle/creak elimination only. For repairs involving component replacement, use coding as found in the current Nissan "Warranty Flat Rate Manual" and submit the usual "Primary Part" line claim.
