Front

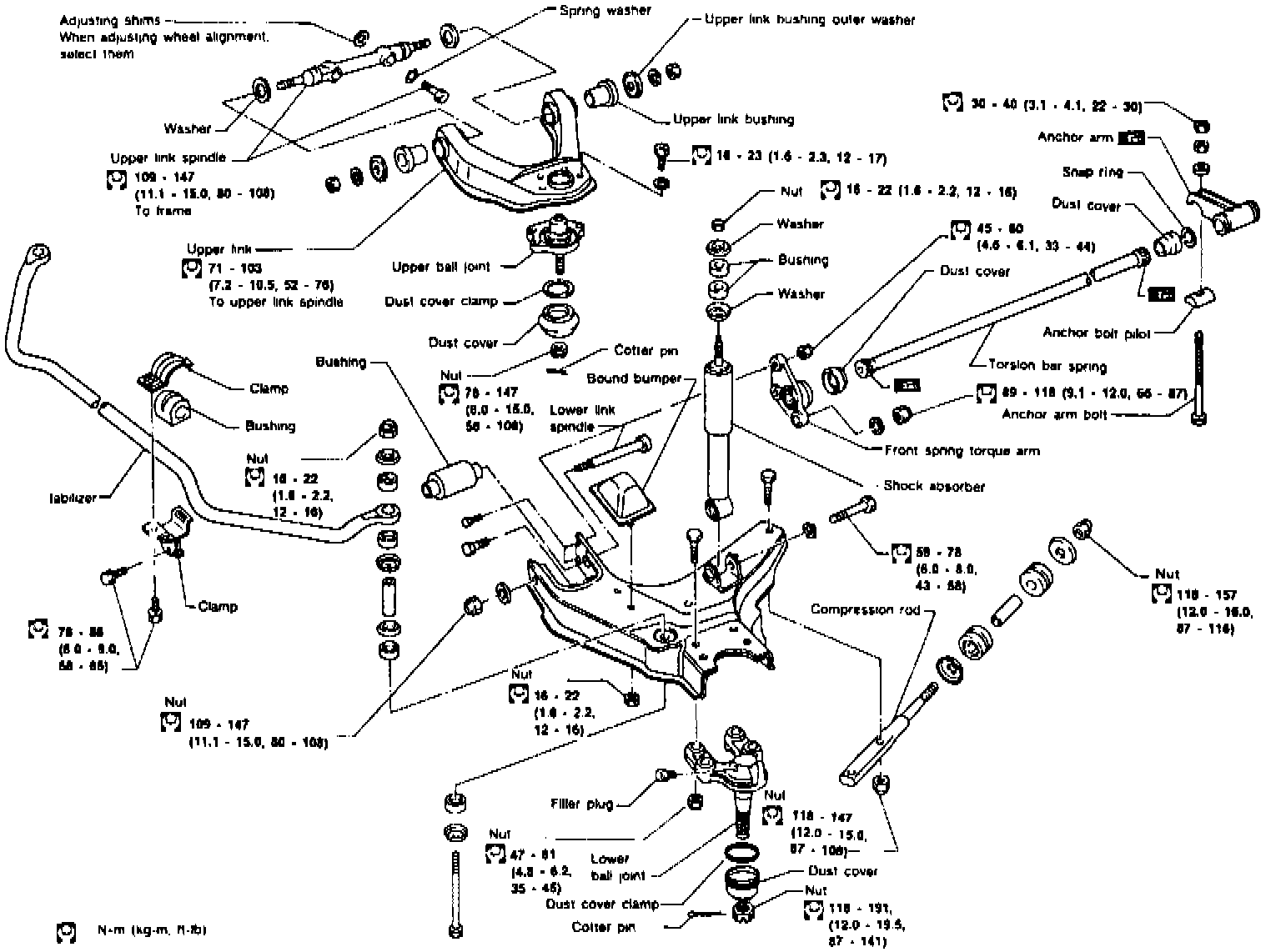

Fig. 6 Front Suspension:

1. Raise and support vehicle.
2. Remove wheel.
3. Disconnect shock absorber from upper mounting, Fig. 7.
4. Disconnect shock absorber from lower mounting.
5. Remove shock absorber from vehicle.
6. Reverse procedure to install.
