Front Crankshaft Seal: Service and Repair

FRONT OIL SEAL
1. Remove timing belt and crankshaft sprocket.
2. Remove oil pump assembly.

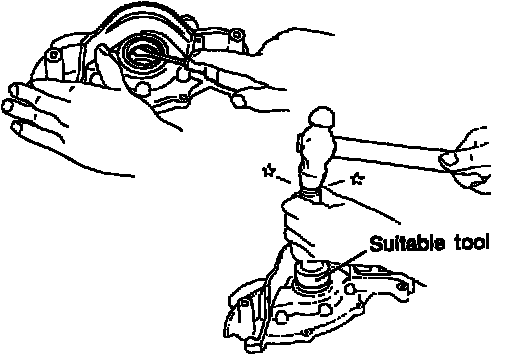

3. Remove front oil seal from oil pump body.
4. Apply engine oil to new oil seal and install it using suitable tool.
