Nissan-Datsun
>>
1994
>>
D21 Hardbody 4WD V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Control System
>>
DTC 51
DTC 51

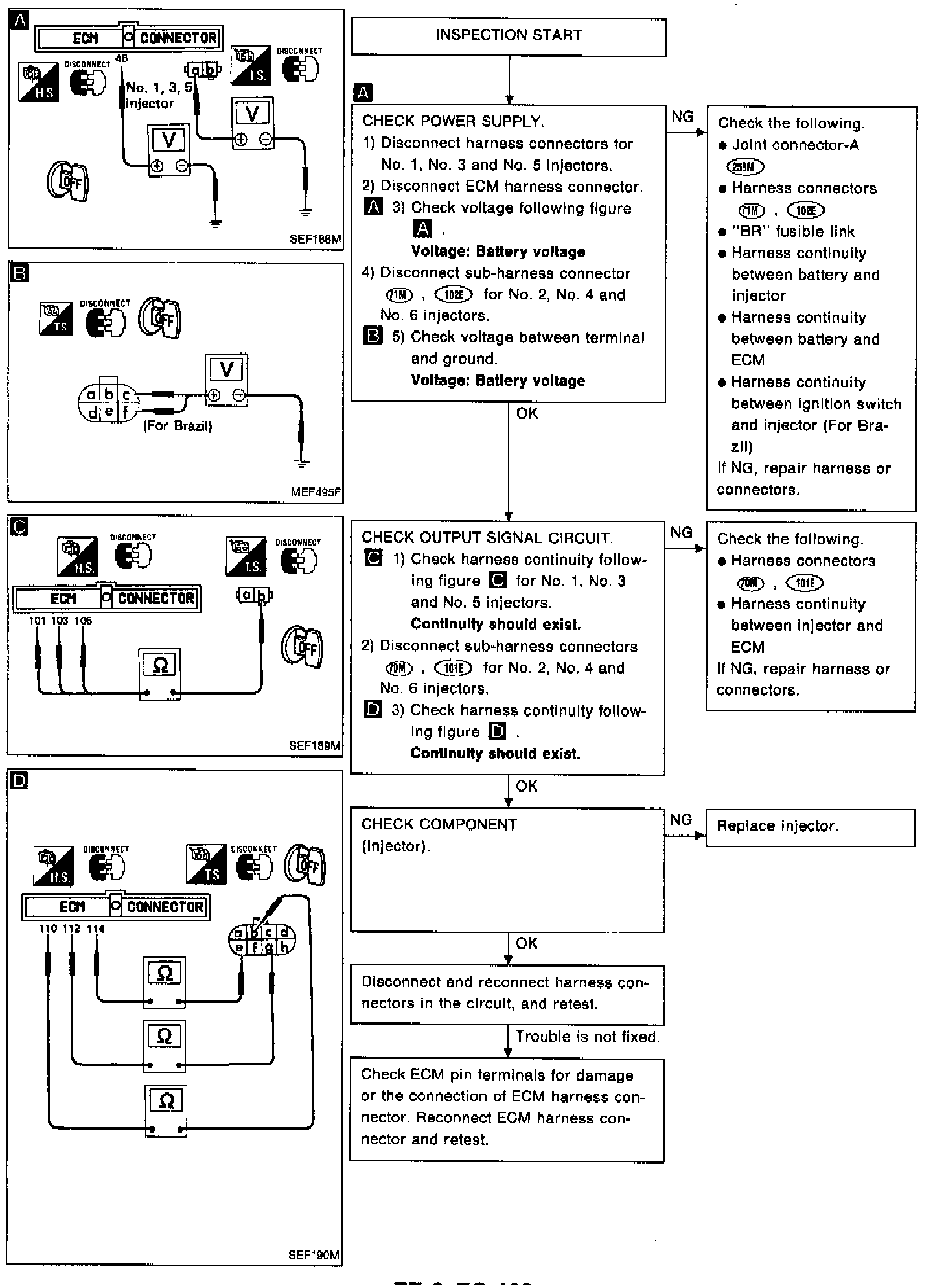

DIAGNOSTIC CHART
��:

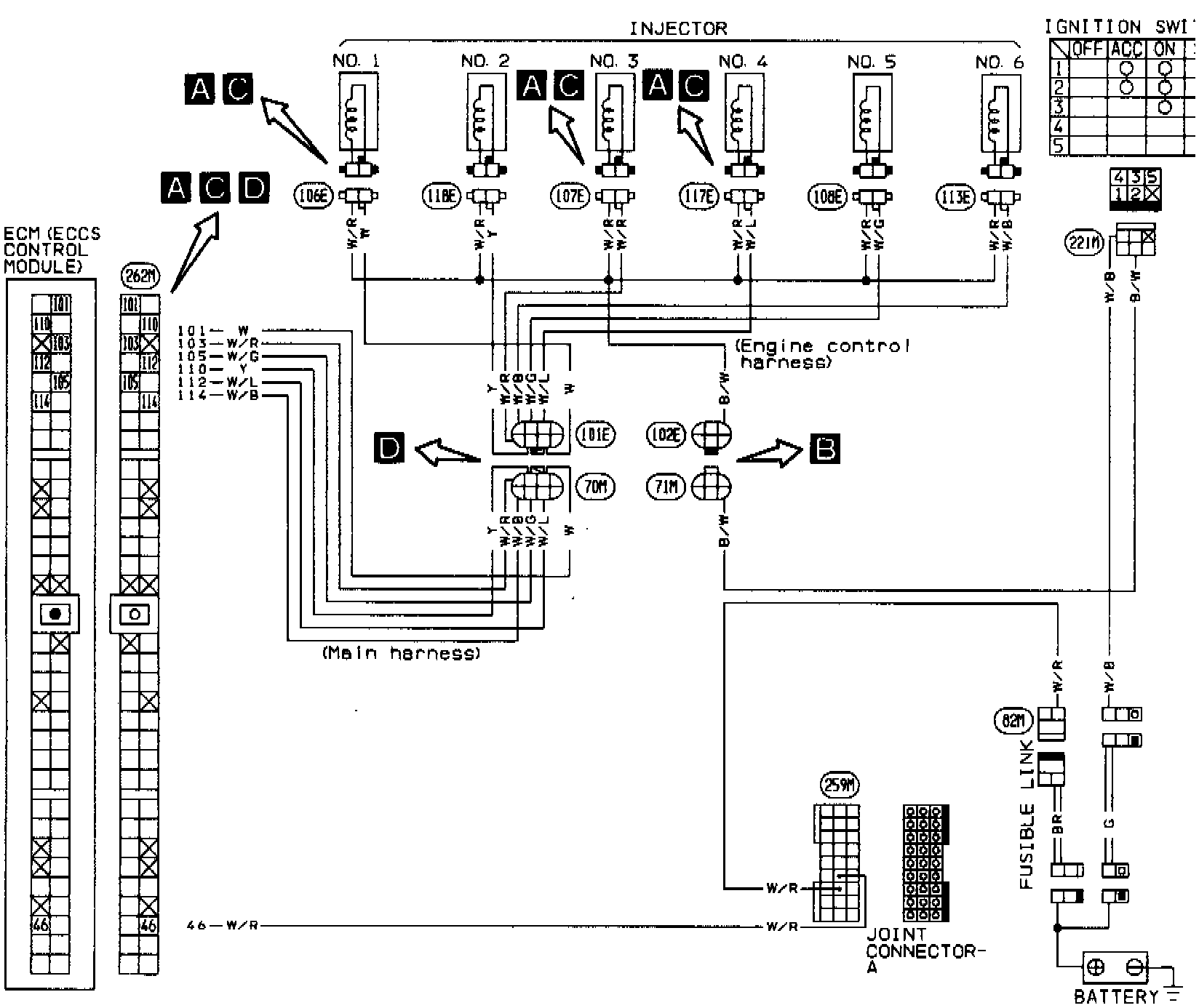

CIRCUIT DIAGRAM
HARNESS LAYOUT

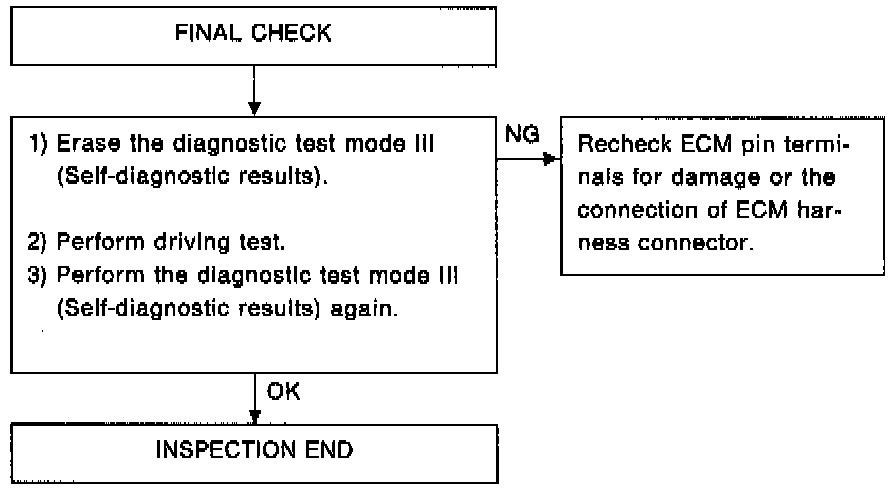

FINAL CHECK
