Off-Vehicle Inspection

Inspection

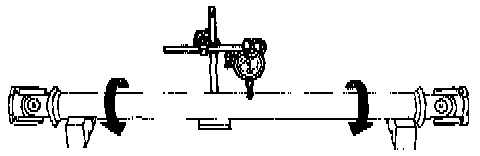

^ Inspect propeller shaft runout. If runout exceeds specifica tions, replace propeller shaft assembly.
Runout limit: 0.6 mm (0.024 in)





^ Inspect journal axial play.
If the play exceeds specifications, replace propeller shaft as sembly.
Journal axial play:
0.02 mm (0.0008 in) or less
