Valve Body: Testing and Inspection

3-UNIT SOLENOID VALVE ASSEMBLY
(Shift solenoid valves A, B and overrun clutch solenoid valve)
AND LINE PRESSURE SOLENOID VALVE
^ Remove 3-unit solenoid valve assembly.




^ Check resistance between terminals of each solenoid.

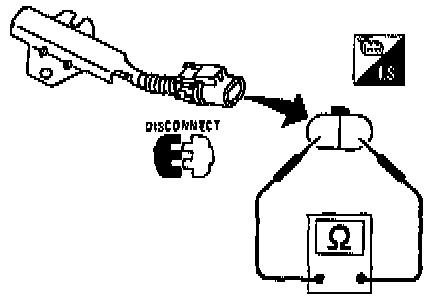

LINE PRESSURE SOLENOID VALVE ASSEMBLY DROPPING RESISTOR
^ Check resistance between two terminals.

Resistance: 11.2 - 12.8 Ohms
