Torque Converter Clutch Solenoid: Testing and Inspection

^ Remove torque converter clutch solenoid valve.

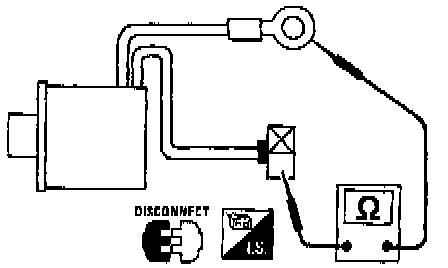

^ Check resistance between two terminals.

Resistance: 10 - 16 Ohms
