A/T - Fluid Cooler Cleaning

Classification:
AT94-002

Reference:
NTB94-050

Date:
MAY 10, 1994

TRANSMISSION FLUID COOLER CLEANING

APPLIED VEHICLE(S)
All with automatic transmission

SERVICE INFORMATION

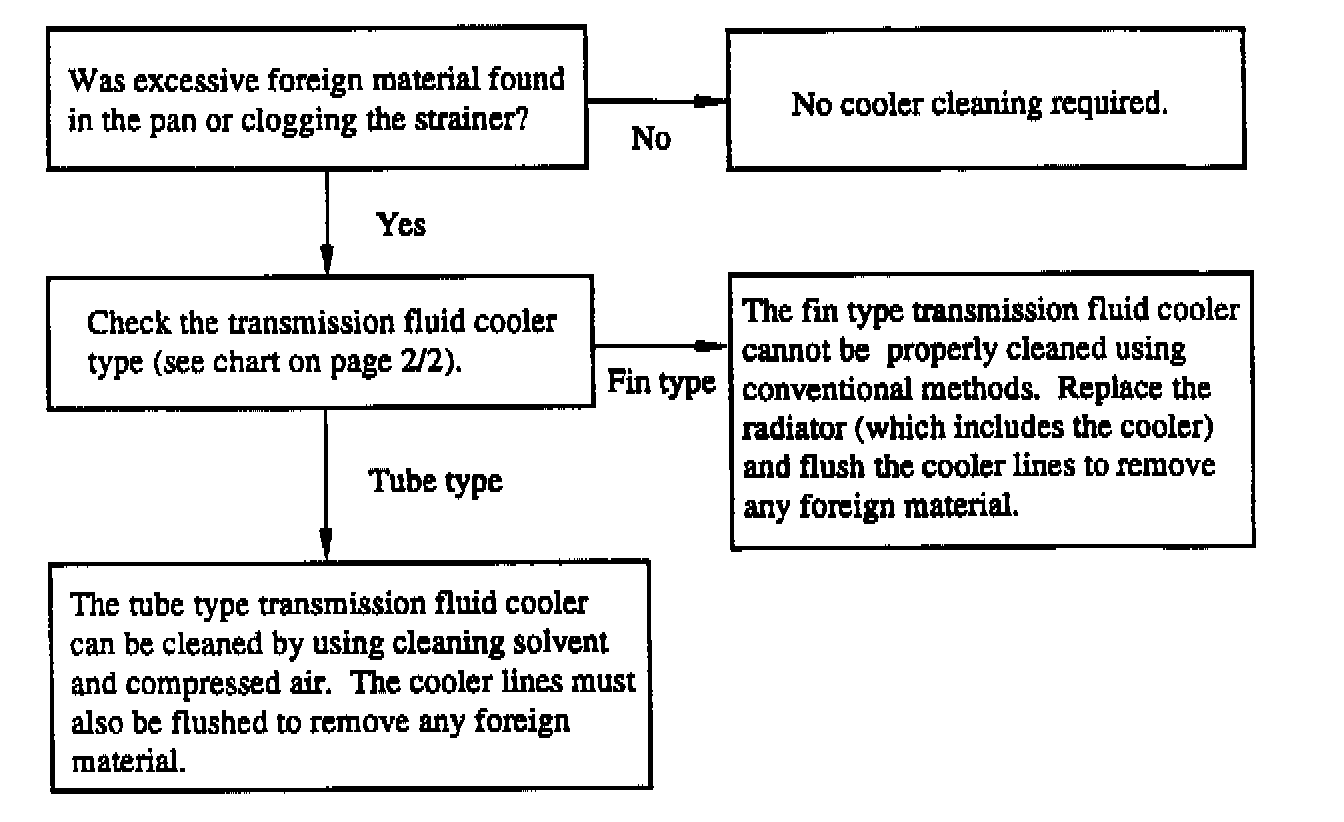

When an automatic transmission is repaired, use the guideline to determine the type of procedure to follow for cleaning the transmission fluid cooler as shown.

NOTE:
A clogged cooler will result in a subsequent failure of the planetary gears in a new or rebuilt transmission.

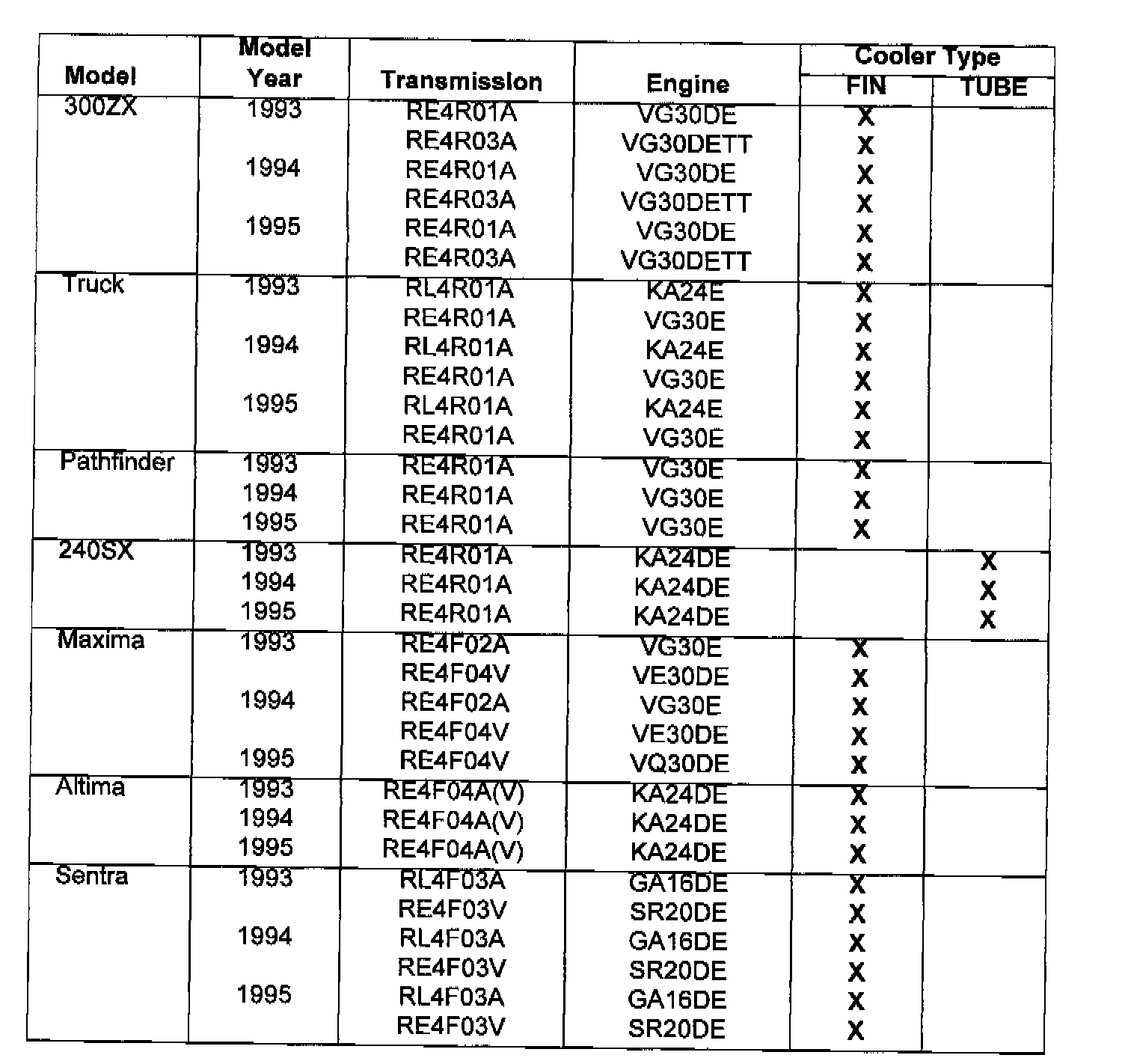

Transmission Cooler Type Chart

NOTE:
Please reference previous Bulletins that cover older model years.
